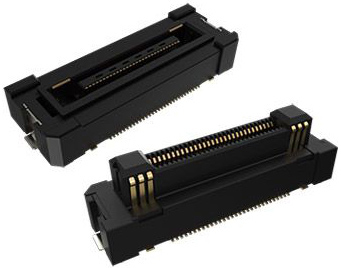

Floating 0.5 mm Power Pin Board-to-Board Connectors
Amphenol Communications Solutions high-current power pin connectors provide a high-speed transmission performance up to 10 Gb/s
Amphenol Communications Solutions power pin 0.50 mm pitch floating board-to-board connector system is designed for applications requiring large current but have limited space. The independent power pin supports 5 A current per pin (power pin 4) and provides a high-speed transmission performance up to 10 Gb/s.
Resources
- Datasheet: 0.50 mm Power Pin Floating Board-to-Board Connectors – B329/B322/B324/B326/B328 Series
- Product specifications: 0.5 mm pitch Floating Board-to-Board Connector Series
Features
- High-speed transmission 10 Gb/s
- Current rating up to 5 A per power pin (5 A/pin 4)
- Wide operating temperature from -55°C to +125°C (including T-rise)
- Large floating range X, Y ±0.60 mm, and Z ±0.50 mm
- Anti-fool mating design
- Direction guide functions for easy mating
Applications
- Consumer
- Medical
- Industrial and instrumentation
- Automotive
0.5 mm Power Pin Board-to-Board Connectors
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | B3291B7L111260E100 | FBTB P0.5 ,60P, RECEPTACLE, SPOT | 0 - Immediate | $3.19 | View Details |
|  | B3241B7L111260E100 | FBTB P0.5 ,60P, PLUG, SPOT PLATI | 0 - Immediate | $2.64 | View Details |
|  | B3291B7L1112A0E100 | FBTB P0.5 ,100P, RECEPTACLE, SPO | 0 - Immediate | $6.19 | View Details |
|  | B3221B7L1112A0E100 | FBTB P0.5 ,100P, PLUG, SPOT PLAT | 0 - Immediate | $3.38 | View Details |
Published: 2021-09-27
