2410 Size Overcurrent Surface Mount Brick Fuses – 2410TD/2410FA Series
Eaton's overcurrent time delay and fast-acting fuses come in EIA industry standard 2410 size

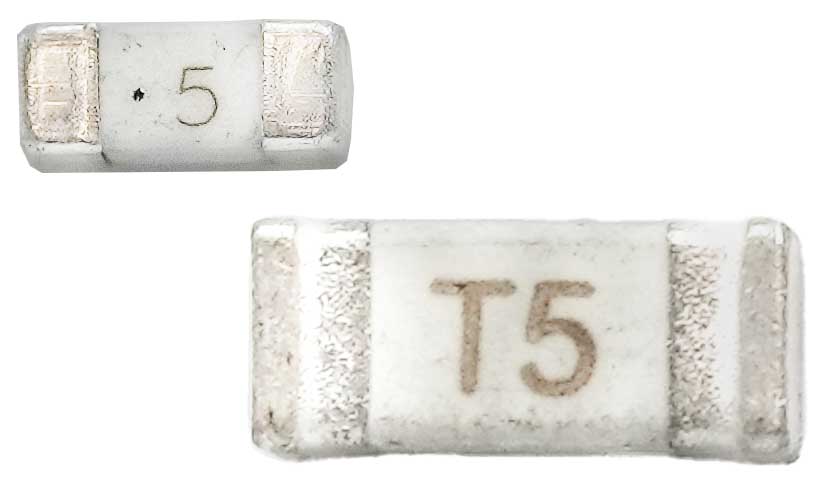

Eaton Bussmann's 2410 series surface mount ceramic brick fuses offer time delay and fast-acting characteristics for overcurrent situations requiring up to 250 VAC protection. These two families offer current carrying capability from 500 mA to 15 A in the industry-standard 2410 EIA (6125 metric) package. UL248 rated and CURus recognition make safety qualification easier and allow for quick turnaround safety approvals for applications like LED lighting drivers, appliances, and white goods, and industrial electronics and computing.
Features
- 2410TD Series
- Time delay
- Designed to UL248
- Overcurrent protection of systems up to 250 VAC/60 VDC
- Current rating: 500 mA to 7.0 A
- High inrush withstand capability
- 2410FA Series
- Fast acting
- Designed to UL248
- Overcurrent protection of systems up to 125 VAC/125 VDC
- Current rating: 500 mA to 15 A
Applications
- Power supplies
- Servers
- LED lighting drivers
- Appliances and white goods
- LCD monitor/backlight inverters
- VAC chip-on-board (COB) lighting
- Industrial electronics and computing
2410 Size Overcurrent Surface Mount Brick Fuses - 2410TD Series
| Image | Manufacturer Part Number | Description | Voltage Rating - AC | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|
 |  | TR1-2410TD500-R | FUSE BRD MT 500MA 250VAC 60VDC | 250 V | 0 - Immediate | $1.01 | View Details |
| | TR1-2410TD750-R | FUSE BRD MT 750MA 250VAC 60VDC | 250 V | 0 - Immediate | $1.10 | View Details |
| | TR1-2410TD1-R | FUSE BRD MNT 1A 250VAC 60VDC SMD | 250 V | 0 - Immediate | $1.10 | View Details |
| | TR1-2410TD1-5-R | FUSE BRD MT 1.5A 250VAC 60VDC | 250 V | 0 - Immediate | $1.06 | View Details |
| | TR1-2410TD2-R | FUSE BRD MNT 2A 250VAC 60VDC SMD | 250 V | 0 - Immediate | $1.01 | View Details |
| | TR1-2410TD2-5-R | FUSE BRD MT 2.5A 250VAC 60VDC | 250 V | 0 - Immediate | $1.10 | View Details |
| | TR1-2410TD3-R | FUSE BRD MNT 3A 250VAC 60VDC SMD | 250 V | 0 - Immediate | $1.06 | View Details |
| | TR1-2410TD3-5-R | FUSE BRD MT 3.5A 250VAC 60VDC | 250 V | 0 - Immediate | $1.06 | View Details |
| | TR1-2410TD4-R | FUSE BRD MNT 4A 250VAC 60VDC SMD | 250 V | 0 - Immediate | $1.06 | View Details |
| | TR1-2410TD5-R | FUSE BRD MNT 5A 250VAC 60VDC SMD | 250 V | 0 - Immediate | $1.06 | View Details |
| | TR1-2410TD7-R | FUSE BRD MNT 7A 250VAC 60VDC SMD | 250 V | 0 - Immediate | $1.06 | View Details |
2410 Size Overcurrent Surface Mount Brick Fuses - 2410FA Series
| Image | Manufacturer Part Number | Description | Voltage Rating - AC | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|
|  | TR1-2410FA500-R | FUSE BRD MT 500MA 125VAC/VDC SMD | 125 V | 0 - Immediate | $0.91 | View Details |
| | TR1-2410FA800-R | FUSE BRD MT 800MA 125VAC/VDC SMD | 125 V | 0 - Immediate | $0.91 | View Details |
| | TR1-2410FA1-R | FUSE BRD MNT 1A 125VAC/VDC 2SMD | 125 V | 0 - Immediate | $0.85 | View Details |
| | TR1-2410FA1-5-R | FUSE BRD MNT 1.5A 125VAC/VDC SMD | 125 V | 0 - Immediate | $0.85 | View Details |
| | TR1-2410FA2-R | FUSE BRD MNT 2A 125VAC/VDC 2SMD | 125 V | 0 - Immediate | $0.85 | View Details |
| | TR1-2410FA2-5-R | FUSE BRD MNT 2.5A 125VAC/VDC SMD | 125 V | 0 - Immediate | $0.85 | View Details |
| | TR1-2410FA3-R | FUSE BRD MNT 3A 125VAC/VDC 2SMD | 125 V | 0 - Immediate | $0.85 | View Details |
| | TR1-2410FA4-R | FUSE BRD MNT 4A 125VAC/VDC 2SMD | 125 V | 0 - Immediate | $0.85 | View Details |
| | TR1-2410FA5-R | FUSE BRD MNT 5A 125VAC/VDC 2SMD | 125 V | 0 - Immediate | $0.85 | View Details |
| | TR1-2410FA6-3-R | FUSE BRD MNT 6.3A 125VAC/VDC SMD | 125 V | 1000 - Immediate | $0.69 | View Details |
| | TR1-2410FA7-R | FUSE BRD MNT 7A 125VAC/VDC 2SMD | 125 V | 0 - Immediate | $0.69 | View Details |
| | TR1-2410FA8-R | FUSE BRD MNT 8A 125VAC/VDC 2SMD | 125 V | 0 - Immediate | $0.85 | View Details |
| | TR1-2410FA10-R | FUSE BRD MNT 10A 125VAC/VDC 2SMD | 125 V | 0 - Immediate | $0.85 | View Details |
| | TR1-2410FA12-R | FUSE BRD MNT 12A 125VAC/VDC 2SMD | 125 V | 0 - Immediate | $0.75 | View Details |
| | TR1-2410FA15-R | FUSE BRD MNT 15A 125VAC/VDC 2SMD | 125 V | 7000 - Immediate | $0.78 | View Details |
Published: 2022-11-04
