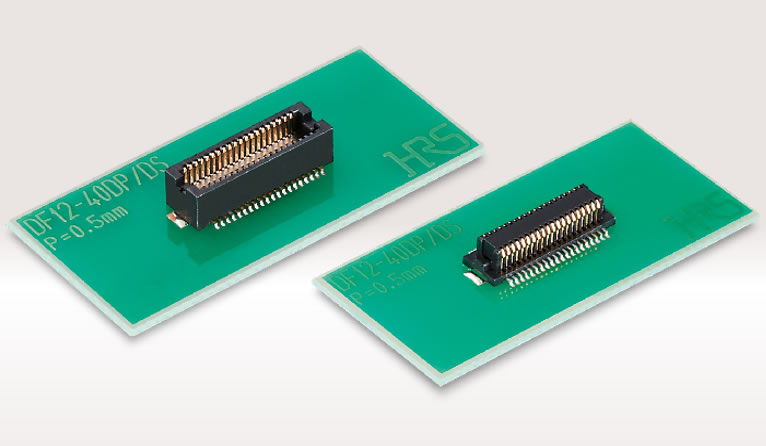

DF12N Series Board-to-Board Connectors
Hirose Electric’s DF12N series features a 0.5 mm pitch board-to-board connector
Hirose Electric's DF12N series is a 0.5 mm pitch board-to-board connector which offers a broad range of stack heights and pin counts. Stacking heights available are 3 mm, 3.5 mm, 4 mm, and 5 mm. Pin counts are available from 10 to 80, and the connectors are available with or without metal fittings and with or without guide pins. This series is very versatile and used across all industries. The DF12N series is RoHS-compliant.
Features
- Contact pitch is 0.5 mm
- Pin count is 10-80
- Stack heights are 3 mm to 5 mm
- Current rating is 0.3 A
- Available with or without metal fittings
- Supports MIPI D-PHY, USB 2.0, USB 3.2 Gen1 (5 Gbps)
DF12N Series
| Image | Manufacturer Part Number | Description | Number of Positions | Pitch | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|
 |  | DF12NB(3.0)-14DS-0.5V(51) | CONN RCPT 14POS SMD GOLD | 14 | 0.020" (0.50mm) | 0 - Immediate | $0.78 | View Details |
|  | DF12NB(5.0)-30DP-0.5V(51) | CONN HDR 30POS SMD GOLD | 30 | 0.020" (0.50mm) | 0 - Immediate | $1.29 | View Details |
|  | DF12NC(5.0)-30DP-0.5V(51) | CONN HDR 30POS SMD GOLD | 30 | 0.020" (0.50mm) | 0 - Immediate | $1.64 | View Details |
|  | DF12NC(3.5)-40DP-0.5V(51) | CONN HDR 40POS SMD GOLD | 40 | 0.020" (0.50mm) | 0 - Immediate | $1.83 | View Details |
|  | DF12NC(3.0)-80DP-0.5V(51) | CONN HDR 80POS SMD GOLD | 80 | 0.020" (0.50mm) | 0 - Immediate | $2.37 | View Details |
|  | DF12NB(3.0)-80DP-0.5V(51) | CONN HDR 80POS SMD GOLD | 80 | 0.020" (0.50mm) | 0 - Immediate | $2.17 | View Details |
|  | DF12NC(3.0)-60DP-0.5V(51) | CONN HDR 60POS SMD GOLD | 60 | 0.020" (0.50mm) | 0 - Immediate | $2.52 | View Details |
Published: 2014-02-27
