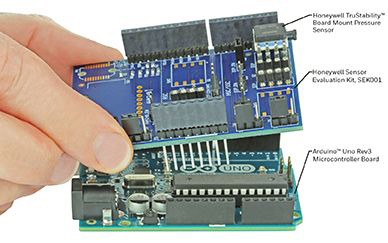

TruStability™ Board Mount Pressure Sensor Evaluation Kit
Honeywell's RSC series piezoresistive silicon pressure sensor reads pressure over the specified full scale pressure span and temperature range
Honeywell Sensing and Productivity's RSC series is a piezoresistive silicon pressure sensor offering a digital output for reading pressure over the specified full scale pressure span and temperature range. It is calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using a 24-bit analog-to-digital converter with integrated EEPROM. Pressure data may be acquired at rates between 20 and 2000 samples per second over SPI. It is intended for use with non-corrosive, non-ionic gases, such as air and other dry gases, designed and manufactured according to ISO 9001 standards, and is REACH and RoHS compliant.
Features
- Enhances performance: output accelerates performance through reduced conversion requirements and direct interface to microprocessors
- Cost-effective, high volume solution with a variety of options
- Enhances reliability: high burst pressures promote system reliability, minimize downtime, and can simplify design
- Easy to design in: package is small when compared to many similar sensors
- Energy efficient: reduces system power requirements and enables extended battery life
- Port and housing options simplify integration: wide pressure range simplifies use
- Proprietary Honeywell technology combines high sensitivity with high burst and over pressure while providing industry leading stability
- Arduino™ Uno microcontroller board compatible
Applications
- Medical
- Airflow monitors
- Anesthesia machines
- Blood analysis machines
- Gas chromatography
- Gas flow instrumentation
- Hospital room air pressure
- Kidney dialysis machines
- Nebulizers
- Pneumatic controls
- Respiratory machines
- Sleep apnea equipment
- Spirometers
- Ventilators
- Industrial
- Barometry
- Drones
- Flow calibrators
- Gas chromatography
- Gas flow instrumentation
- HVAC clogged filter detection
- HVAC systems
- HVAC transmitters
- Indoor air quality
- Life sciences
- Pneumatic control
- VAV (Variable air volume) control
- Weather balloons
TruStability Board Mount Pressure Sensor Evaluation Kit
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | SEK001 | TRUSTABILITY SENSOR EVAL KIT | 0 - Immediate | $69.25 | View Details |
Associated Products
| Image | Manufacturer Part Number | Description | Pressure Type | Operating Pressure | Voltage - Supply | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
|  | HSCDANT001PGSA3 | SENSOR 1PSIG 0.19" 12BIT 8DIP | Vented Gauge | 1PSI (6.89kPa) | 3V ~ 3.6V | 0 - Immediate | $49.35 | View Details |
|  | HSCDRRT001PD2A3 | SENSOR 1PSID 0.08" 12BIT 8DIP | Differential | ±1PSI (±6.89kPa) | 3V ~ 3.6V | 0 - Immediate | $30.71 | View Details |
|  | SSCDANT005PGAA5 | SENSOR 5PSIG 0.19" 4.5V 8DIP | Vented Gauge | 5PSI (34.47kPa) | 4.75V ~ 5.25V | 0 - Immediate | $36.54 | View Details |
| | SSCDANT150PGAA5 | SENSOR 150PSIG 0.19" 4.5V 8DIP | Vented Gauge | 150PSI (1034.21kPa) | 4.75V ~ 5.25V | 0 - Immediate | $53.17 | View Details |
|  | NSCDRRN001PDUNV | SENSOR 1PSID 0.08" .065V 8DIP | Differential | ±1PSI (±6.89kPa) | 1.5V ~ 12V | 0 - Immediate | $44.11 | View Details |
| | HSCDRRN001ND2A5 | SENSOR 0.04PSID 0.08" 12BIT 8DIP | Differential | ±0.04PSI (±0.25kPa) | 4.95V ~ 5.05V | 0 - Immediate | $63.76 | View Details |
| | HSCDRRN002NDAA3 | SENSOR 0.07PSID 0.08" 2.97V 8DIP | Differential | ±0.07PSI (±0.5kPa) | 3.27V ~ 3.33V | 0 - Immediate | $65.38 | View Details |
| | HSCDRRN010MD2A3 | SENSOR 0.15PSID 0.08" 12BIT 8DIP | Differential | ±0.15PSI (±1kPa) | 3.27V ~ 3.33V | 0 - Immediate | $66.89 | View Details |
|  | SSCDRRN005ND2A5 | SENSOR 0.18PSID 0.08" 12BIT 8DIP | Differential | ±0.18PSI (±1.25kPa) | 4.95V ~ 5.05V | 0 - Immediate | $80.20 | View Details |
|  | SSCSNBN001NDAA5 | SENSOR 0.04PSID 0.19" 4.5V 4SIP | Differential | ±0.04PSI (±0.25kPa) | 4.95V ~ 5.05V | 0 - Immediate | $77.88 | View Details |
| | SSCSNBN005NDAA5 | SENSOR 0.18PSID 0.19" 4.5V 4SIP | Differential | ±0.18PSI (±1.25kPa) | 4.95V ~ 5.05V | 0 - Immediate | $67.53 | View Details |
|  | NSCSHHN001PDUNV | SENSOR 1PSID 0.16" .065V 4SIP | Differential | ±1PSI (±6.89kPa) | 1.5V ~ 12V | 0 - Immediate | $47.29 | View Details |
| | NSCSHHN030PDUNV | SENSOR 30PSID 0.16" .207V 4SIP | Differential | ±30PSI (±206.84kPa) | 1.5V ~ 12V | 0 - Immediate | $47.29 | View Details |
|  | NSCSSNN100PDUNV | SENSOR 100PSID .1725V 4SIP | Differential | ±100PSI (±689.48kPa) | 1.5V ~ 12V | 0 - Immediate | $32.24 | View Details |
| | NSCSSNN100PAUNV | SENSOR 100PSIA .063V 4SIP | Absolute | 100PSI (689.48kPa) | 1.5V ~ 12V | 0 - Immediate | $45.64 | View Details |
| | SSCSNBN015PGAA5 | SENSOR 15PSIG 0.19" 4.5V 4SIP | Vented Gauge | 15PSI (103.42kPa) | 4.75V ~ 5.25V | 0 - Immediate | $55.62 | View Details |
| | SSCDANN015PAAB5 | SENSOR 15PSIA 0.19" 4.75V 8DIP | Absolute | 15PSI (103.42kPa) | 4.75V ~ 5.25V | 0 - Immediate | $40.45 | View Details |
|  | SSCMRNN015PA3A3 | SENSOR 15PSIA 0.08" 12BIT 8SMT | Absolute | 15PSI (103.42kPa) | 3V ~ 3.6V | 0 - Immediate | $36.54 | View Details |
| | HSCDANN015PAAA5 | SENSOR 15PSIA 0.19" 4.5V 8DIP | Absolute | 15PSI (103.42kPa) | 4.75V ~ 5.25V | 0 - Immediate | $39.31 | View Details |
|  | HSCMRNN1.6BASA3 | SENSOR 23.21PSIA 0.08" 12BIT SMD | Absolute | 23.21PSI (160kPa) | 3V ~ 3.6V | 0 - Immediate | $40.04 | View Details |
Published: 2017-08-15
