High Voltage Power MOSFET CoolMOS™ P6 for UPS
Infineon’s broad portfolio fully supports the changes in market requirements of UPS solutions like modularization (due to increased data traffic (= Cloud data) in form of high power brick units and the topology shift from 2-level to 3-level. This topology shift is mainly happening in mid-/high-power UPS due to the race for higher efficiency & performance achievements. For UPS solutions in cost-driven markets like Small/Home Office low power rating UPS applications <10kVA are used. To serve Industrial & Server areas higher power rating UPS solutions starting with 20kVA are required.
Infineon’s System Solutions
- Performance Optimized solution for applications in Industrial/Server markets: CoolMOS™ P6/C7
- Price Optimized solution for applications in Small/Home Office: TRENCHSTOP™ 5
Benefit of Infineon’s Solution:
- Higher efficiency resulting in cost reduction and less use of passive components
- Complete System level approach
- Best-in-class Life Cycle Support (OEM)
- Flexibility of Infineon Portfolio
- IFX is member of the "Plattform Industrie 4.0", own highly advanced FE fabs
|
Infineon offers products for UPS Solutions in applications like:
- Small/ Home Office mainly cost-driven market for low power rating UPS solutions: <10kVA
- Industrial & Server driven by e.g. modularization for power rating UPS solutions starting at 20kVA

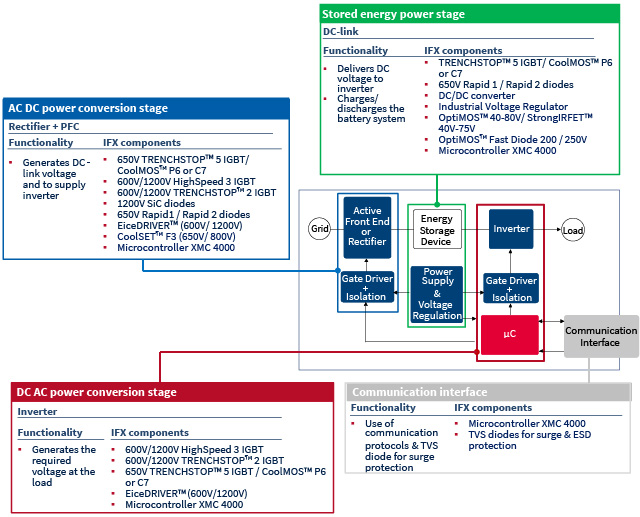

Infineon's UPS Solution (<10kVA - 20kVA)
Requirements for Power MOSFETs in Conversion Stage
- Low on state-resistance
- Good switching performance
- Robustness (hard commutation)
Matching Power MOSFETs
- CoolMOS™ P6
Is a price/performance optimized Superjunction MOSFET bringing all this parameters to it‘s maximum whilst beeing easy to design-in.
- CoolMOS™ C7
For Highest Efficiency CoolMOS™ C7 is the choice, providing you the world's lowest RDS(on) / package.
- Innovative packages
Like the TO-247 4pin makes the CoolMOS™ C7 more advantageous, reducing the parasitic inductance of the source lead of the power MOSFET
|

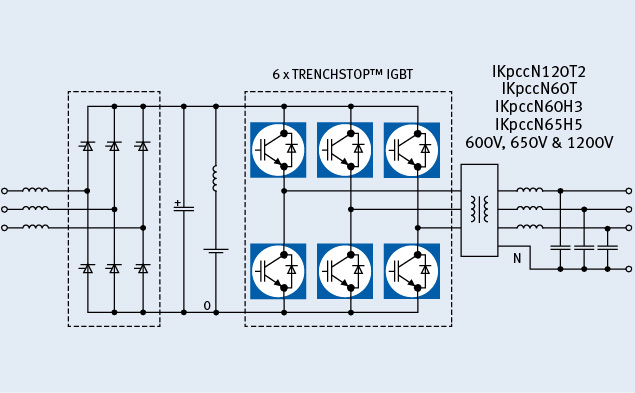

Universal Power Supply B6 Bridge
 |
| |
Price Optimized |
|
- 6x TRENCHSTOP™ Discrete IGBTs (600V/ 650V and/or 1200V) in B6 bridge configuration
|
