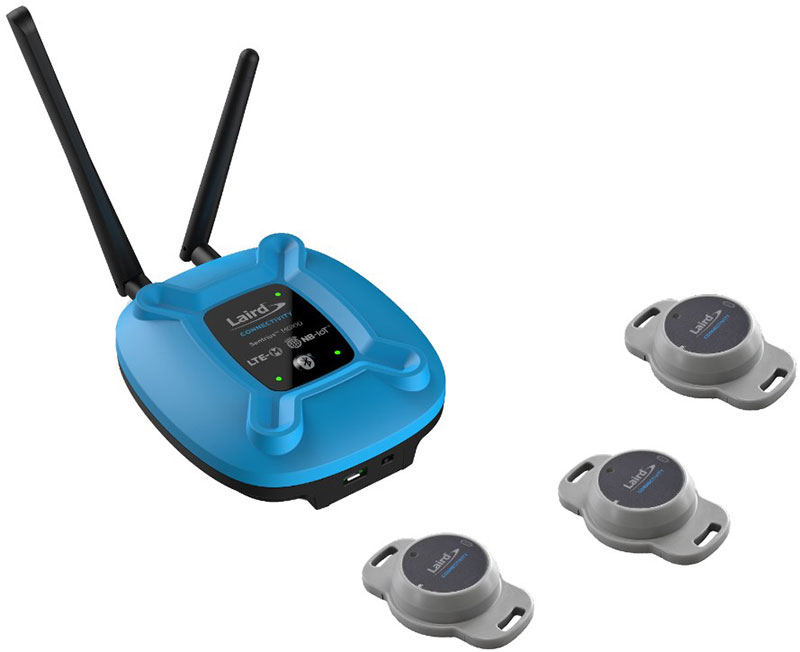

Sentrius™ MG100 Gateway

Powered by Laird Connectivity's Pinnacle™ 100 modem, the Sentrius MG100 gateway captures data from Bluetooth 5 long-range sensors and sends it to the cloud via a global low power cellular (LTE-M / NB-IoT) connection.

Get Started Quickly: The out-of-box Starter Kit solution includes Laird Connectivity’s innovative Sentrius BT510 Bluetooth 5 multi-sensor platform with the Bluegrass Cloud portal for a seamless out of the box end-to-end solution for IoT applications.

Custom Application Development: Leverage the power and simplicity of Zephyr RTOS programming on the integrated Cortex®-M4F microcontroller to tailor applications specifically for users’ needs.

Flexible Power Options: Power the gateway with an external USB power supply with product options for a rechargeable backup battery in the event of a short-term power outage.

Antenna Choice: Use low-cost internal LTE and BT antennas or choose the external antenna variants to suit the application environment.

Features

• LTE-M / NB-IoT radio via Sierra Wireless HL7800 module (Chipset: Altair ALT1250)
• LTE bands: 1, 2, 3, 4, 8, 12, 13, 20, and 28
• Nordic nRF52840 – BT v5, coded PHY (long range), 1MPHY and 2MPHY support
• Onboard Cortex-M4F microcontroller: 32-bit @ 64 MHz, 256 KB of RAM, 1 MB internal Flash, 8 MB QSPI
• Certifications: FCC, IC, CE, BT SIG plus PTCRB, GCF, and End Device certified – AT&T, Verizon, Vodafone (all pending)
• Flexible programming: hostless mode via Zephyr RTOS or hosted mode AT command set
• Secure firmware upgrade: comes preprogrammed with Laird’s secure bootloader
• Antenna options: unique integrated antenna variant plus external variant with SMA connectors
• Compact form factor: 110.28 mm x 99.16 mm x 35.32 mm
• Customization: custom branding, packaging, and application development all available
