PolarFire® Splash Kit
Microsemi's PolarFire Splash Kit for general purpose evaluations
Microsemi's PolarFire Splash Kit provides general purpose interfaces for evaluation and development. The kit connections include Gigabit Ethernet RJ45, PCIe®, USB, and LPC FMC connector. A PolarFire 300K LE FPGA along with on-board DDR4 and SPI-Flash memory enable general purpose evaluations.
Kit Contents
- 1x PolarFire Splash Kit board with MPF300TS-1FCG484EES Device
- 1x 12 V power pack/AC adapter
- 1x USB 2.0 A male to mini-B
- 1x Quick start card
- 1x 1-year free Libero Gold software license

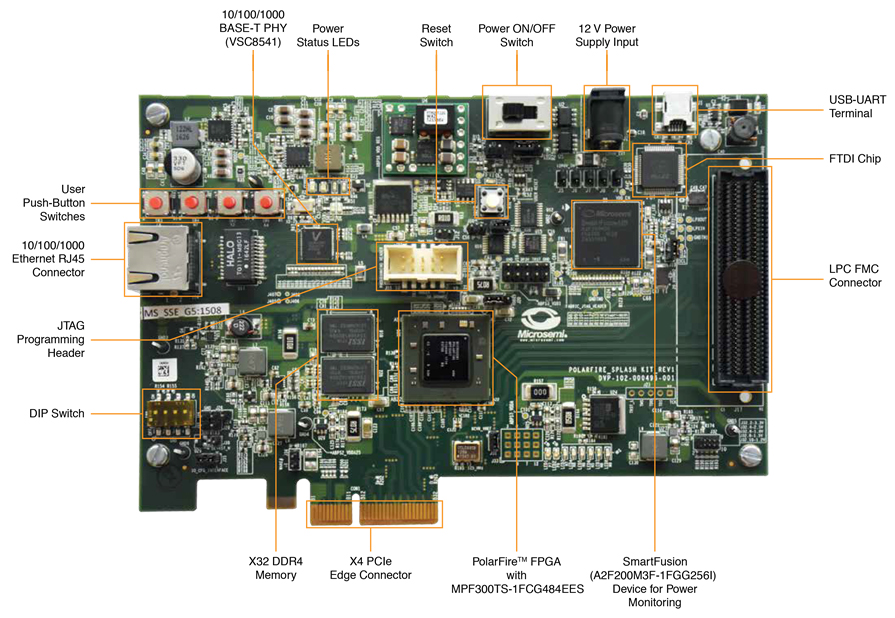

Hardware Feature Overview
- 300K LE PolarFire FPGA in an FCG484 package (MPF300TS-1FCG484EES)
- PCI Express® (x4) edge connector
- FMC connector (LPC)
- x32 DDR4
- RJ45 port with 1 Gigabit Ethernet VSC8541 1-port PHY with RGMII interface
- NX7102IDETR and LX7167CLD switching regulators
- On-board power monitoring
- USB for UART interface and programming
- 1 Gb SPI-Flash memory
- JTAG and SPI programming interface
PolarFire® Splash Kit
| Image | Manufacturer Part Number | Description | Platform | Contents | Utilized IC / Part | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
 | MPF300-SPLASH-KIT-ES | POLARFIRE SPLASH KIT WITH A MPF3 | PolarFire SoC FPGA Splash PCIe Card | Board(s), Cable(s), Power Supply, Accessories | MPF300 | 0 - Immediate | $720.00 | View Details |
Published: 2018-06-22
