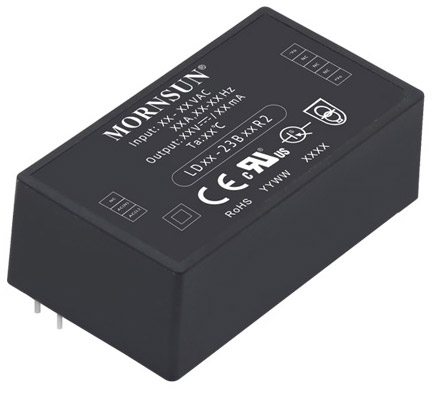

LD-R2 Series AC/DC Converter
MORNSUN's 3 W to 30 W ultra-compact, cost-effective AC/DC converters with 85 VAC to 305 VAC input
MORNSUN's ultra-compact AC/DC converter LD-R2 series are the ideal power supply for applications with space limitations. With the universal input voltage of 85 VAC to 305 VAC, an operating temperature range of -40°C to +85°C, and efficiency of 87%, the LD-R2 series converters can be used for commercial and industrial applications.
The 2-Y-capacitor design, EMI class B without external components requirement, and no-load power consumption as low as 0.1 W make them the perfect match for the household appliance.
These compact modules are very suitable for use in smart meters, kitchen equipment, climate control such as sustainable heating and cooling, and other IoT applications in a domestic environment.
Features
- Operating temperature range: -40°C to +85°C
- High efficiency up to 87%
- No-load consumption as low as 0.1 W
- Wide input voltage range: 85 VAC to 305 VAC/100 VDC to 430 VDC
- 5,000 m altitude application
- EMI meets CISPR32/EN55032 CLASS B
- Meet IEC/EN/UL62368/EN60335/EN61558 standards
Applications
- Industrial control systems
- Smart homes
- Smart buildings
- Smart agriculture
- Household appliances
- IoT devices
LD-R2 Series
| Image | Manufacturer Part Number | Description | Voltage - Output 1 | Current - Output (Max) | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|
 |  | LD03-23B03R2 | AC/DC CONVERTER 3.3V 3W | 3.3V | 900mA | 0 - Immediate | $3.65 | View Details |
|  | LD03-23B05R2 | AC/DC CONVERTER 5V 3W | 5V | 600mA | 0 - Immediate | $3.65 | View Details |
| | LD03-23B09R2 | AC/DC CONVERTER 9V 3W | 9V | 333mA | 0 - Immediate | $5.33 | View Details |
| | LD03-23B12R2 | AC/DC CONVERTER 12V 3W | 12V | 250mA | 0 - Immediate | $3.65 | View Details |
| | LD03-23B15R2 | AC/DC CONVERTER 15V 3W | 15V | 200mA | 0 - Immediate | $5.33 | View Details |
LD-WR2 Series
| Image | Manufacturer Part Number | Description | Voltage - Output 1 | Voltage - Output 5 | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|
|  | LD03-23B03WR2 | AC/DC CONVERTER 3.3V 3W | 3.3V | - | 0 - Immediate | $8.00 | View Details |
| | LD03-23B05WR2 | AC/DC CONVERTER 5V 3W | 5V | - | 0 - Immediate | $8.00 | View Details |
| | LD03-23B09WR2 | AC/DC CONVERTER 9V 3W | 9V | - | 0 - Immediate | $8.00 | View Details |
| | LD03-23B12WR2 | AC/DC CONVERTER 12V 3W | 12V | - | 0 - Immediate | $8.00 | View Details |
| | LD03-23B15WR2 | AC/DC CONVERTER 15V 3W | 15V | - | 0 - Immediate | $4.10 | View Details |
| | LD03-23B24WR2 | AC/DC CONVERTER 24V 3W | 24V | - | 0 - Immediate | $5.05 | View Details |
|  | LD05-23B03WR2 | AC/DC CONVERTER 3.3V 5W | 3.3V | - | 0 - Immediate | $5.19 | View Details |
| | LD05-23B05WR2 | AC/DC CONVERTER 5V 5W | 5V | - | 0 - Immediate | $5.19 | View Details |
| | LD05-23B09WR2 | AC/DC CONVERTER 9V 5W | 9V | - | 0 - Immediate | $8.89 | View Details |
| | LD05-23B12WR2 | AC/DC CONVERTER 12V 5W | 12V | - | 0 - Immediate | $5.19 | View Details |
| | LD05-23B15WR2 | AC/DC CONVERTER 15V 5W | 15V | - | 0 - Immediate | $5.19 | View Details |
| | LD05-23B24WR2 | AC/DC CONVERTER 24V 5W | 24V | - | 0 - Immediate | $8.89 | View Details |
Published: 2021-06-29
