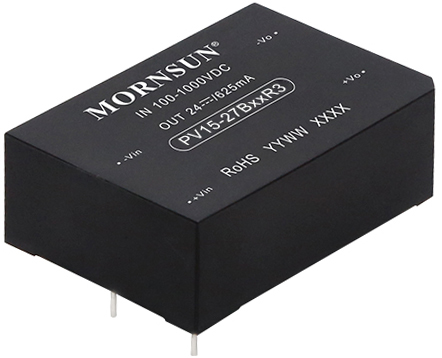

PV15-27BxxR3 Series DC/DC Converters

Mornsun’s PV series 5 W to 200 W ultra-wide input voltage range DC/DC converters have received a solid reputation for powerful performance and cost-effectiveness since their launch. With an optional input voltage range of 100 V_DC to 1500 V_DC and an operating temperature range of -40°C to +70°C, the PV series can be used for photovoltaic combiner boxes, inverters, energy storage BMS, and charging piles. These modules feature an isolation voltage of 4000 V_AC, output overvoltage protection, short circuit protection, and input against reverse protection, which ensure the stability of the circuit.

Along with the technological advancements, Mornsun upgraded and launched the PV-R3 series with better performance, a more compact size, and better cost. The PV15-27BxxR3 series has an input range of 100 V_DC to 1000 V_DC, which can withstand a transient voltage up to 1200 V_DC for 60 seconds. These converters are designed with input undervoltage protection, meet UL1741 standards, and are ideal for 5000 m altitude applications, making them especially suitable for high altitude harsh outdoor occasions.
