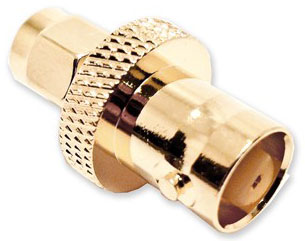

BNC Adapters

Mueller Electric’s field-retrofittable BNC adapters quickly, easily, and safely replace connections with a wide range of components. The range of components include coaxial cables, audio and video circuitry, printed circuit boards (PCBs) and panel mounts, terminals, banana connectors, binding posts, test clips, plunger clips, and RF/SMA connectors to perform a wide variety of applications involving radio and radio-frequency electronic equipment, television, video signals, laboratory oscilloscopes, test instruments, and signal generator inputs to coaxial cables.

Quality made and tested, Mueller Electric’s BNC adapters come in a wide variety of connection types, from straight to right-angle, T or tree adapters, 4-hole flanges, 4-hole panels, bulkheads, and mountless options. Connection designs include clamp/solder, crimp/solder, field replaceable, and solder or solder attachment methods.

All Mueller Electric’s field-retrofittable adapters provide quick connect and disconnect solutions to various sources on the go while providing a maximum quality signal with high-quality gold-plated center contacts that ensure the best signal and electrical performance.

Features

• Gold-plated center contacts ensure the best signal and electrical performance available on the market
• Constructed with bayonet-locking mechanisms
• Adapter lengths range from 26 mm to 59 mm (1.02” to 2.32”)
• Hole diameters range from 4.11 mm to 12.5 mm (0.16” to 0.49”)
• BNC body material: brass-plated; nylon
• Voltage: 30 V_AC/60 V_DC max.; 335 V_RMS to 500 V_RMS max. (controlled)
• Impedance: 50 Ohms
• RoHS compliant
