Circular Metal Connectors

ODU MINI-SNAP® is an advanced circular connector solution with Push-Pull locking and robust metal housing valuable to a wide range of applications from the medical, industrial, test and measurement, military, security & communications, energy and automotive applications.

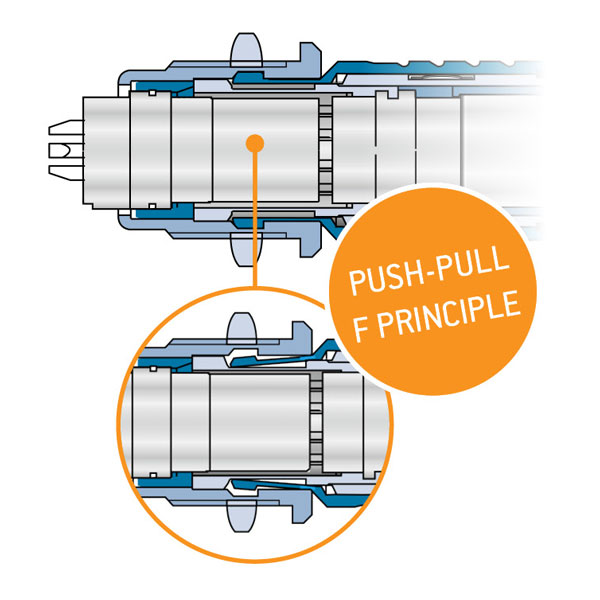

Whether transferring power, signals, data or even media, ODU MINI-SNAP® Push-Pull principle reliably ensures that the connection never releases until desired: once mated, the ODU MINI-SNAP® locks itself into the receptacle. It can no longer be separated by pulling on the cable only. The plug can, however, can be easily unmated from the receptacle when the outer sleeve is pulled back.

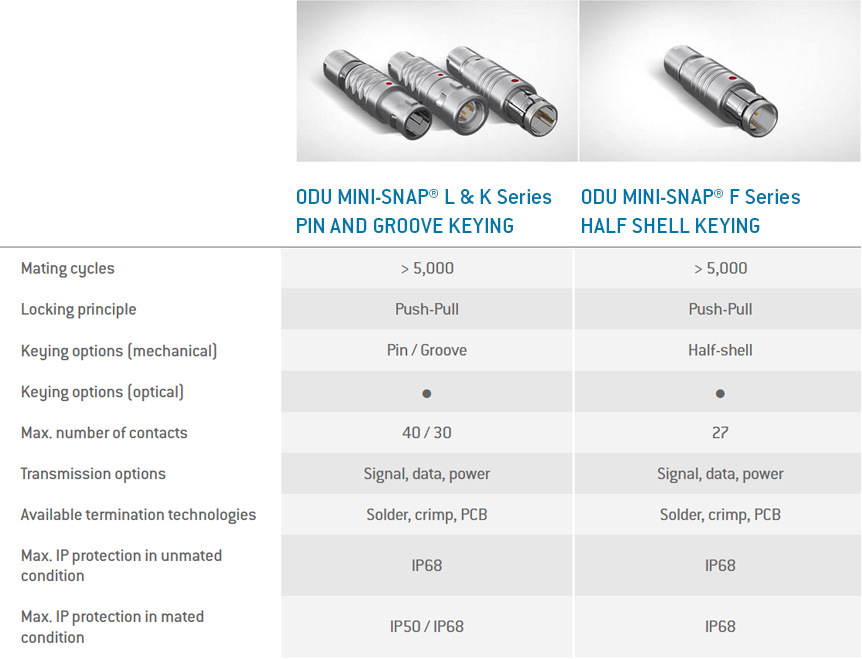

The ODU MINI-SNAP® is available in a wide range of sizes, configurations and multiple keying options.
