Sub-1 GHz Wireless Connectivity for IoT

ON Semiconductor provides a wide range of sub-1 GHz RF transceivers, receivers, and transmitters covering multiple standards including Sigfox, KNX, Wireless M-Bus, and EnOcean. ON Semiconductor transceivers are known for high efficiency and excellent sensitivity in the range of -110 dBm to -126 dBm for 1.2 kbps (narrow-band or general-purpose). AX5043 is the leading sub-1 GHz transceiver for data ranges from 0.1 kbps to 125 kbps. The device offers the unique combination of ultra-low power consumption for transmit and receive operation with high sensitivity and selectivity.

Resources:

• AX5043 0 dBm / 8 mA TX and 9.5 mA RX Configuration for the 868 MHz Band
• AX5043 Sending FM Tones (ZVEI)
• AX5043 Use as Analog FM Transceiver
• AX5043 Use in Compliance with ETSI EN 300 220-1
• AX5043 Use with a TCXO Reference Clock
• AX5043-1 DVK2b Module Performance

The AX8052F1xx family combines the superb performance of ON Semiconductor’s wireless transceiver technology with an ultra-low-power microcontroller featuring 64 kB Flash, 9.25 kB RAM, and sleep current consumption of 500 nA to 1500 nA. The AX8052F100 core is specifically designed to enable one-chip radio solutions for all levels of complexity. Its low power consumption combined with the rich feature set make it the ultimate choice for many RF systems. The AX8052F143 offers the same leading edge performance as the AX5043 combined with the flexibility and features of a leading edge 8-bit microcontroller on a single SoC without any sacrifice of performance.

Resources:

• AX8052 Oscillator Calibration
• AX8052 Power On Reset
• AX8052 Production Programming
• AX8052 Serial Boot Loader

ON Semiconductor’s comprehensive suite of development kits simplifies the entry into wireless solutions. Development kits are supported by a suite of software tools consisting of code generators for full RF application C-code and an integrated development environment which comes with a source code debugger and C-compiler.

The DVK-2 features the AX8052F100 ultra-low-power microcontroller on the main boards, allowing developers using ON Semiconductor’s radio chips and microcontrollers to design, program, and evaluate their applications under real world conditions. A range of RF-modules with different RF ICs for various carrier frequencies are available as add-on kits.

Resources:

• DVK-2 Flyer
• DVK-2 Users Guide

The Sigfox DVK enables instant testing via AT commands for ON Semiconductor’s single-chip solution for a node on the Sigfox network.

Resources:

• DVK-SEFU Sigfox Flyer

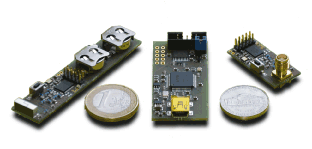

The F143-Mini-DVK is ON Semiconductor’s miniaturized development kit for the designer starting out with the AX8052F143 SoC RF-Microcontroller. The F143-Mini-DVK hardware consists of a USB debugging adapter and a pair of RF modules (F143-Mini-A-MOD and F143-Mini-B-MOD modules) and includes all software necessary to develop systems in the shortest time. The modules have a tiny footprint of just 33 x 15 mm2. One module comes with a chip antenna and the other is equipped with an SMA connector.

Resources:

• F143-Mini-DVK Flyer
