Electric Vehicle (EV) Charger
Renesas’ EV charger design fills the need for more efficient charging solutions

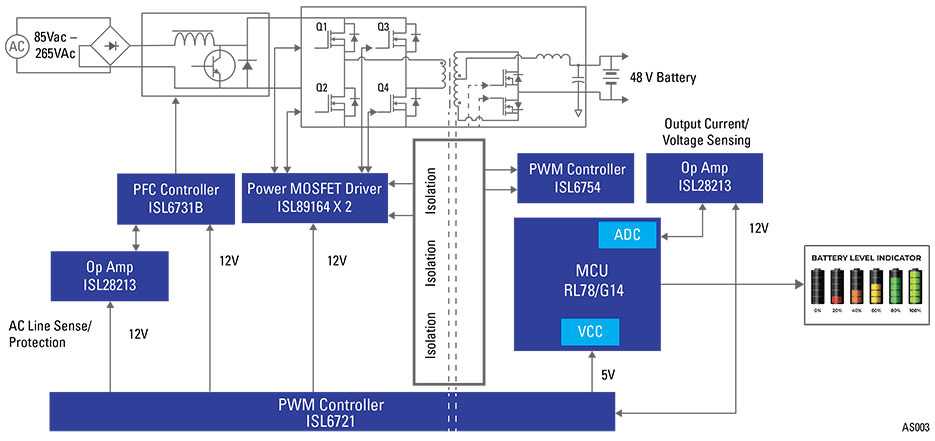

Renesas’ EV charger design features an active PFC and asymmetrical full-bridge ZVS converter along with the low-power RL78/G14 MCU. As electro mobility (e-mobility) increasingly becomes part of daily life, there is a growing need for more efficient charging solutions. EVs can help broaden the number of fuel choices available for transportation. EVs can also reduce the emissions that contribute to climate change and smog, improving public health and reducing ecological damage. Fueling with electricity offers some advantages that are not available in conventional internal combustion engine vehicles. Because electric motors react quickly, EVs are very responsive and have very good torque. EVs are often more digitally connected than conventional vehicles, with many EV charging stations providing the option to control charging from a smartphone app.
- Highly integrated MCU
- The ISL6731B provides adaptive control that enables extremely low THD and high PF without DSP
- The RL78/G14 MCU allows users to implement working logic, protections, and features for the driver
- Battery health implementation features
RL78/G14 Microcontroller IC 16-Bit 32MHz 32KB (32K x 8) FLASH 48-HWQFN (7x7)
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | R5F104BEANA#U0 | IC MCU 16BIT 64KB FLASH 32HWQFN | 0 - Immediate | View Details for Pricing | View Details |
| | R5F104BEGNA#U0 | IC MCU 16BIT 64KB FLASH 32HWQFN | 0 - Immediate | View Details for Pricing | View Details |
PFC IC Continuous Conduction (CCM) 56.5kHz to 70.7 kHz 14-SOIC
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | ISL6731BFBZ | IC PFC CTRLR CCM 70.7KHZ 14SOIC | 0 - Immediate | View Details for Pricing | View Details |
|  | ISL6731BFBZ-T | IC PFC CTRLR CCM 70.7KHZ 14SOIC | 0 - Immediate | View Details for Pricing | View Details |
Full-Bridge Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 20-QSOP
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | ISL6754AAZA | IC REG CTRLR FULL-BRIDGE 20QSOP | 0 - Immediate | View Details for Pricing | View Details |
Low-Side Gate Driver IC Inverting 8-TDFN (3x3)
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | ISL89164FRTAZ | IC GATE DRVR LOW-SIDE 8TDFN | 0 - Immediate | View Details for Pricing | View Details |
| | ISL89164FRTAZ-T | IC GATE DRVR LOW-SIDE 8TDFN | 0 - Immediate | $2.35 | View Details |
Boost, Flyback Regulator Positive, Isolation Capable Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 16-TSSOP
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | ISL6721AVZ | IC REG CTRLR BOOST/FLYBK 16TSSOP | 0 - Immediate | View Details for Pricing | View Details |
General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-8
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | ISL28213FHZ-T7A | IC OPAMP GP 1 CIRCUIT SOT23-8 | 0 - Immediate | $2.13 | View Details |
