Touchless Toilet with Biosensor
Renesas’ reference design for a touchless toilet with biosensor has an intelligent design that keeps users healthier

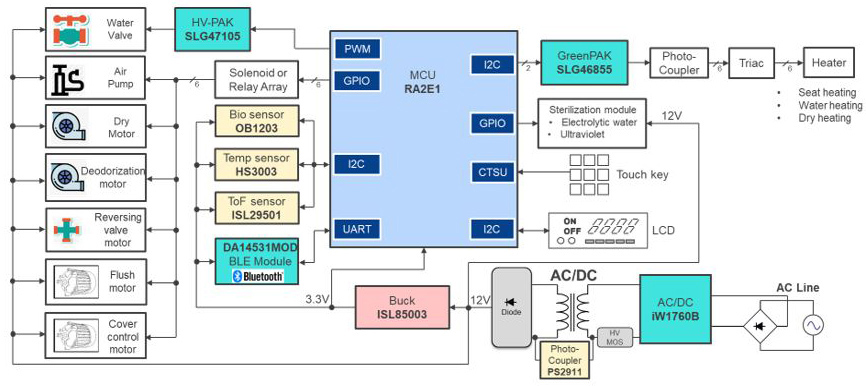

Renesas’ winning combination reference design for a touchless toilet with biosensor uses the DA14531 SmartBond TINY™ module, a small efficient Bluetooth® Low Energy (LE) solution. This Bluetooth LE module targets broad market usage and provides significant savings in development cost and time-to-market. Additionally, multiple sensors are used to realize automatic cover openings, humidity and temperature measurements, and monitor health.
Features
- Bluetooth LE and microcontroller (MCU): the Bluetooth LE module comes with an integrated antenna and easy-to-use software
- Low-cost 48 MHz Arm® Cortex®-M23 core MCU with enhanced capacitive touch sensing unit 2 (CTSU2)
- Strong power source: high-performance and high-output ability power device, AC/DC plus buck are enough to cover all of the power supply
- Intelligent design keeps users healthier
- iW1760B AC/DC conversion
- 45 W AC/DC off-line controller for power adapters that offer lower output ripple
- OB1203 biosensor
- Heart rate, blood oxygen concentration, pulse oximetry, proximity, light, and color sensor
- ISL85003 buck regulator
- Highly efficient 3 A synchronous buck regulator
- ISL29501 proximity sensor
- Time-of-flight (ToF) signal processing IC
- DA14531MOD connectivity
- SmartBond TINY module, small and low power Bluetooth 5.1 system on chip (SoC)
- Brings DA14531 SoC advantages to an integrated module
- HS3003 humidity and temperature sensor
- High-performance relative humidity and temperature sensor
- RA2E1 MCU
- 48 MHz Arm Cortex-M23 entry-level general purpose MCU
- PS2911-1 photocoupler
- High CTR, 4-pin ultra-small-package flat-lead photocoupler
- SLG46855 programmable mixed-signal devices
- GreenPAK™ programmable mixed-signal matrix
- SLG47105 programmable mixed-signal devices
- Mixed-signal logic and high voltage H-bridge functionality in a tiny 2 mm x 3 mm QFN package
Applications
- Smart toilets
- Smart environment monitors
iW1760B AC/DC Conversion
