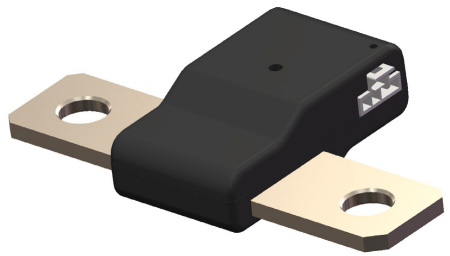

SSA2 Modified and Improved SSA Analog Smart Shunt
Riedon's SSA2 smart shunt enables higher operating temperatures, making it ideal for harsh environments
Riedon's modified analog smart shunt is a smaller, lighter model with a more resilient connector for enhanced performance. This connector enables higher operating temperatures of up to +115°C, making it ideal for harsh environments that demand reliability and stability.
Additionally, the SSA2 offers a reduction in profile and an improved connector location for easy installation. The improved design comes with superior vibration resistance, making it an excellent choice for a highly stressed environment. The SSA2 is, on average, 22% lighter in weight than SSA.
The robustness of SSA2 smart shunt modules makes them suitable for use in high-power (100 A to 1000 A) implementations. Key examples include electric vehicle (EV) and hybrid electric vehicle (HEV) traction inverters, AC/DC converters, uninterruptible power supplies, renewable energy generation sites, and smart grid infrastructure.
- 100 A to 1000 A
- AC or DC circuits
- 1500 VDC reinforced isolation
- Average mass: 90 g
- Amplified differential output: ±2.5 V peak
- 0.1% tolerance
- Battery systems
- UPS systems
- Motor drives
- Frequency inverters
- Fuel cells
