EMC Solutions
Minimal Disturbance, Maximum Efficiency
SCHURTER is a leading manufacturer of passive and electromechanical components such as: fuses, circuit breakers, connectors, EMC products and input systems. Our EMC capabilities and expertise ensure that we provide products and services that prevent systems from interfering with one another through unwanted electrical or electromagnetic effects.
- Featured Products
- 1-Phase Filters
- 3-Phase Filters
- Power Entry Module with Filter
- Chokes
- Applications
Featured Products
1-Phase Filters
3-Phase Filters
CEE - Connector with Filter for 1- and 3- phone Applications
Power Entry Modules with Filter
- 5707 – Inlet with fuseholder, IP65 water proof and dust protection
- KFA – Inlet with fuseholder, mates with V-lock cord sets, optional integrated ground line choke
- DC12 – Inlet with switch, high inrush current, Protection Class II option
- DA22 – Inlet (C14) with Filter, Fuseholder 1- or 2-pole for PCB Mounting
1-Phase Filters
- 1 – 36 A, 250 VAC
- Single, double or multistage Filters
- PCB- or chassis mounting
- DIN-rail mounting
- Standard, industrial or medical versions
Single Stage Filters:
| Part Number | Description | Datasheet | |
|---|---|---|---|
| 5500 | AC Filter, PCB mounting, optional shield |  |
View Details |
| FMAB-72 | AC Filter, PCB mounting, flat aluminum housing | |
View Details |
| FMLB-09 | AC Filter, cost optimized, 6-20 A, 125 VAC | |
View Details |
| FMLB-41 | AC Filter, cost optimized, 1-10 A, 125 VAC | |
View Details |
| FMLB-51 | AC Filter, cost optimized, 6-20 A, 125 VAC | |
View Details |
| FMW-41 | AC Filter, optional surge protection | |
View Details |
| FMW-55 | AC Filter, for industrial application | |
View Details |
| FMAB | AC Filter, broad band attenuation | |
View Details |
| FMAB NEO | AC Filter, high symmetrical attenuation | |
View Details |
| FMEB | DC Filter, single pole | |
View Details |
| FMEC | DC Filter, dual pole | |
View Details |
Double Stage Filters:
| Part Number | Description | Datasheet | |
|---|---|---|---|
| FMBB | AC filter, 2-stage, broad band attenuation | |
View Details |
| FSW | AC filter, 2-stage, high symmetrical and asymmetrical attenuation | |
View Details |
| FSS | AC filter, 2-stage, high symmetrical attenuation | |
View Details |
Output Filters:
| Part Number | Description | Datasheet | |
|---|---|---|---|
| FMW-150 | AC filter, 3-stage, high broad band attenuation | |
View Details |
3-Phase Filters
- 3 – 2500 A
- 480 / 520 / 760 VAC
- Single, double or multistage Filters
- 3-Phase and neutral versions
- DIN-rail or chassis mounting
- Standard or industrial versions
- Low leakage current versions
Need help with filter selection? Click here for product overview.
Single Stage Filters:
| Part Number | Description | Datasheet | |
|---|---|---|---|
| FMAC | 1-stage filter for 3-phase systems, wide current range | |
View Details |
| FMAC ECO | 1-stage filter, ultra compact and efficient | |
View Details |
| FMW4-65 | 1-stage filter, compact filter with neutral conductor | |
View Details |
| FMAD | 1-stage filter, high attenuation | |
View Details |
| FMER SOL | DC filter for photovoltaic converters | |
View Details |
Double Stage Filters:
| Part Number | Description | Datasheet | |
|---|---|---|---|
| FMBC ECO | 2-stage filter, ultra compact and highly efficient | |
View Details |
| FMBC NEO | 2-stage filter, light weight | |
View Details |
| FMBC BOOK STYLE | 2-stage filter, slim design | |
View Details |
| FMBD NEO | 2-stage filter, with neutral conductor, high performance | |
View Details |
Output Filters:
| Part Number | Description | Datasheet | |
|---|---|---|---|
| FMAC OUT | Output filter for 3-phase frequency inverter, high voltage | |
View Details |
Power Entry Modules with Filter
SCHURTER’s power entry modules are based on IEC connectors with line filters (some models may include additional features) and meet international safety standards. Current ratings range from 2.5 to 20 A and are available in various mounting methods.
DC Appliance Inlet:
| Part Number | Description | Datasheet | |
|---|---|---|---|
| 5003 | 125 VDC AMP/Molex Connector; Protection Class II | |
View Details |
Appliance Inlet 125/250 VAC:
| Part Number | Description | Datasheet | |
|---|---|---|---|
| 5008 | C8 plastic housing ECO design unpotted; Protection Class II | |
 |
| 5110 | C14, potted optional C X2 100 nF | |
|
| 5120 | C14/C18, metal flange ECO design unpotted; Protection Class II, V-Lock Cord Retaining | |
|
| 5150 | C14, X2Y® technology high frequency; V-Lock Cord Retaining | |
|
| 5130 | C20 ECO design unpotted, metal flange; V-Lock Cord Retaining | |
|
| C20F | C20, Optional C X1; Optional C X2 330nF; V-Lock Cord Retaining | |
|
| C22F | C22, High temperature, 65 °C UL/ 75 °C IEC | |
|
Appliance Inlet with Fuse Holder:
| Part Number | Description | Datasheet | |
|---|---|---|---|
| 5200 | C14,Compact spare fuse comp. | |
|
| 5220 | C14, Compact Optional C X2 100 nF | |
|
| KFA | C14, Optional C X2 100 nF | |
|
| DA22 | C14,Optional C X1, Y1; Optional C X2 220 nF | |
|
| 5707 | C14/C18, IP65 water-proof, metal flange; Protection Class II; V-Lock Cord Retaining | |
|
| KFC | C14, Fuse 5x20/6.3x32; V-Lock Cord Retaining | |
|
| CE | C14, Fuse 5x20/6.3x32; V-Lock Cord Retaining | |
|
Appliance Inlet with Switch:
| Part Number | Description | Datasheet | |
|---|---|---|---|
| DC12 | C14 High inrush Current; V-Lock Cord Retaining | |
|
| DC22 | C14, High inrush current, Optional C X1; V-Lock Cord Retaining | |
|
| EC12 | C20, Pre-wired, for high inrush current; V-Lock Cord Retaining | |
|
Appliance Inlet with Fuse Holder and Switch:
| Part Number | Description | Datasheet | |
|---|---|---|---|
| DD12 | C14, Ultra compact, for high inrush current | |
|
| DD22 | C14, PCB mounting, for high inrush current | |
|
| KMF | C14/C18, Ultra compact; Protection Class II | |
|
| CD | C14, Bowden-cable; Fuse 5x20/6.3x32 | |
|
| CG | C14, Bowden-cable; Fuse 5x20/6.3x32 | |
|
| FKH | C14, Compact , Side flange mounting | |
|
| FKI | C14, Compact , Side flange mounting | |
|
| FKHD | C14, Double stage filter; Side flange mounting | |
|
| FKID | C14, Double stage filter; Side flange mounting | |
|
| Felcom 54 | C14, Modular system on PCB | |
|
Chokes
SCHURTER has a wide range of current compensated, linear, storage, saturating, ground and high current chokes. Available features include:
- 0.4 to 50 A
- Open versions or plastic housings
- UL approval
- SPICE library for simulations and ease of design
Single Stage Filters:
| Part Number | Description | Datasheet | |
|---|---|---|---|
| DFK | Compensated multiple, 1-& 3-phase choke, 0.5 - 15 A/440 VAC | |
|
| DKIP-1 | High current choke, 10-50 A / up to 540 VAC / 760 VDC | |
|
| DKIP-3 | High current, 3-phase choke, 10-50 A / up to 540 VAC / 760 VDC | |
|
| DKIL-1 | High current choke, 10-20 A / 540 VAC / 760 VDC | |
|
| DKIL-3 | High current, 3-phase choke, 10-20 A / 540 VAC / 760 VDC | |
|
| DKFP | Compensated multiple choke, 0.3 - 10 A/ up to 250 VAC | |
|
| DKFS | Current compensated choke, 0.4-4 A/ up to 250 VAC | |
|
| DFKF | High current choke, 0.6 - 6.3 A / up to 440 VAC | |
|
| DFKH | High current choke, 0.6 - 6.3 A / up to 440 VAC | |
|
| DKLP-1 | High current choke, 4-20 A / up to 540 VAC / 760 VDC | |
|
| DKLP-3 | High current, 3-phase choke, 4-20 A / up to 540 VAC / 760 VDC | |
|
| DKLL-1 | Current compensated choke, 4- 7 A/ up to 540 VAC / 760 VDC | |
|
| DKLL-3 | Current compensated, 3-phase choke, 4- 7 A/ up to 540 VAC / 760 VDC | |
|
| DLF | Linear choke, 0.45 - 7 A/ 600 VDC | |
|
| DLH | Linear choke, 0.45 - 7 A/ up to 600 VDC | |
|
| DLNP | Linear choke, 0.6 - 1 A / 600 VDC | |
|
| DFSG | Saturating choke, 0.8 - 10 A/ up to 440 VAC | |
|
| DLFP | Saturating choke, 5 - 45A/ 440 VAC | |
|
| DLFL | Saturating choke, 5 - 45A/ 440 VAC | |
|
| DEN | Groundwire choke, 16 - 25 A | |
|
| DENO | Groundwire choke, 16 - 25 A | |
|
| DEH | Groundwire choke, 16 - 25 A | |
|
| DS | Storage choke, 0.5 - 16 A/up to 600 VDC | |
|
| DSF | Storage choke, 0.45 - 4.5 A/up to 600 VDC | |
|
| DSH | Storage choke, 0.45 - 4.5 A / 0.6 - 1 A at 600 VDC | |
|
| DSO | Storage choke, 0.5 - 16 A/ 0.45 - 7 A at 600 VDC | |
|
| DLO | Storage choke, 0.5 - 16 A/ 0.45 - 7 A at 600 VDC | |
|
Applications

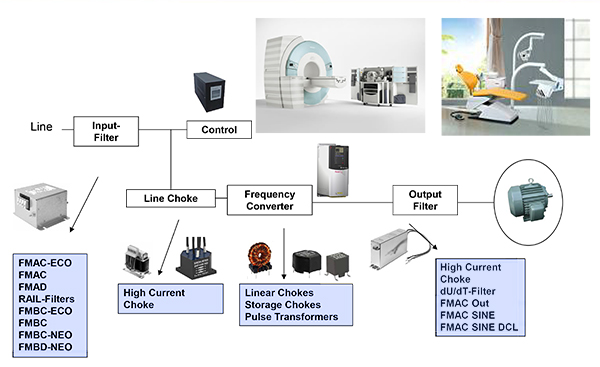

Medical Technology

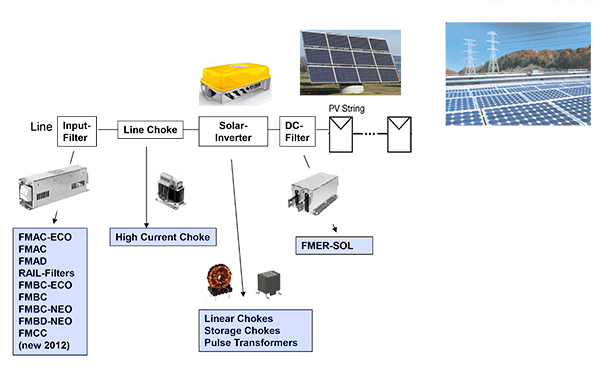

Renewable Energy
Drive/Industrial Engineering
