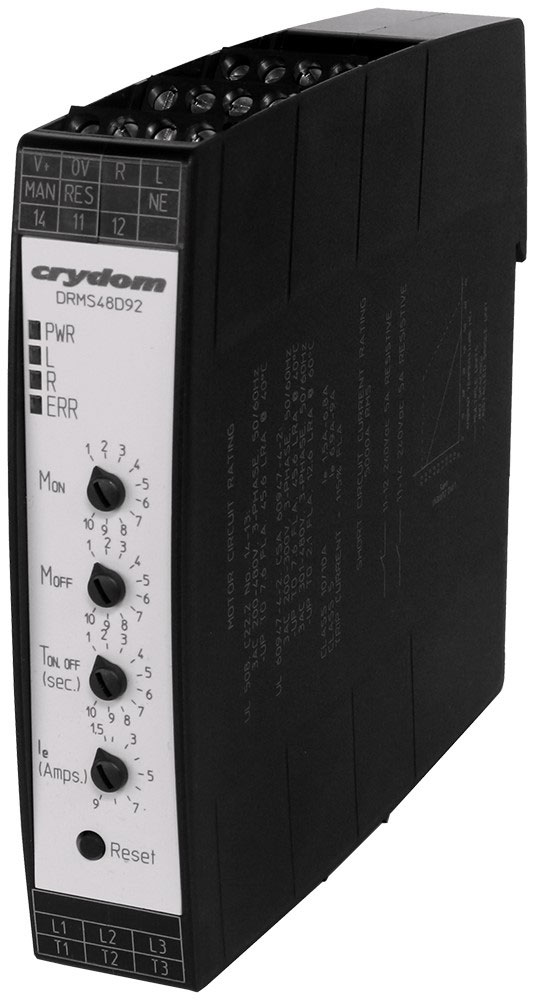

DIN Rail Mount Hybrid Motor Starters (DRMS)
Sensata Crydom’s DRMS series hybrid motor starters are an intelligent and convenient solution for controlling 3-phase asynchronous motors
Sensata Crydom's DRMS are compact devices and can provide up to six functions in the same unit. These include forward/reverse, soft start/soft stop, motor overload protection, and mains isolating relay. Their motor overload detection is based on a thermal load curve. The relays are de-energized when an overload condition is present, ensuring a long service life.
Features
- 3-phase motors reversing up to 4 kW
- 2-phase soft start/stop
- Up to 4 dials for setting of starting torque, deceleration torque, soft start/stop, and rated motor current
- 4 LEDs for status indication
- Galvanic separated 24 VDC inputs for forward and reverse control
- Reset button on front with connection for external reset
- Relay indicator output for operation
- Hybrid relay combines benefits of electromechanical relay technology with non-wearing semiconductor technology
- High reliability by temperature monitoring of semiconductors
Applications
- Reversing operation for door and gate controls, bridge drives, and lifting applications with monitoring of blockage
- Conveyor systems with monitoring of blockage
- Actuating drives in process controls with blockage monitoring
DIN Rail Mount Hybrid Motor Starters
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | DRMS48D91 | HYBRID MOTOR STARTER DIN | 0 - Immediate 98 - Marketplace | $237.26 | View Details |
|  | DRMS48D92 | HYBRID MOTOR STARTER SS/ST DIN | 0 - Immediate 143 - Marketplace | $259.10 | View Details |
|  | DRMS48D93 | HYBRID MOTOR STARTER SS/ST DIN | 0 - Immediate 28 - Marketplace | $288.17 | View Details |
Published: 2019-05-21
