            NGB660 Power Supplies
                    SL Power’s premium line dual rated (medical and industrial) open frame power supply family

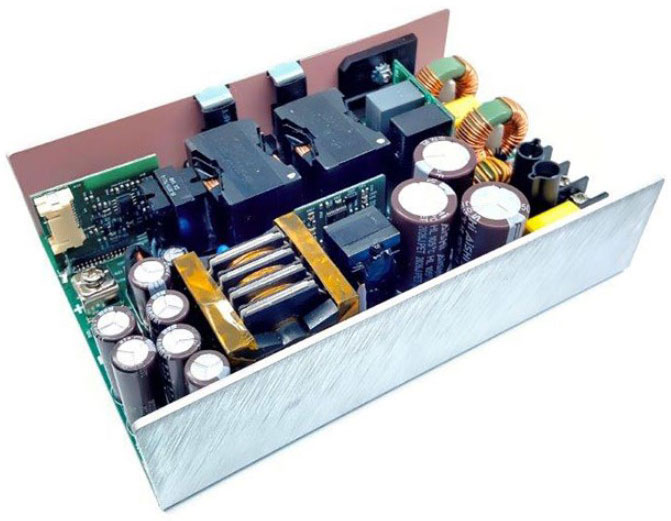

The NGB660 from SL Power is a high-performance AC-to-DC external power supply family designed for next-generation medical and industrial applications. One of the most important aspects of medical power supplies is their safety approval. These models are approved to EN/IEC/UL60601-1, 3rd edition with isolation levels and the latest EN/IEC/UL62368-1. This satisfies the 2xMOPP requirements. In addition, these products are designed to meet UL/EN/IEC60601-1-2, 4th edition for EMC.

The NGB660 models will operate at a universal input range of 80 V_ACto 264 V_AC over the wide temperature range of -20°C to +80°C, delivering full rated output power up to +50°C and applicable output power derating at +80°C. The product family comes in the highest convection power density 4” x 6”.

Standard output voltages are from 12 V_DC to 48 V_DC in both Class I and Class II input options.

Features

Output power of 660 W with airflow
440 W convection cooled
4” x 6” x 1.6” size
Universal 80 V_AC to 264 V_AC input range
Meets Class B emissions levels
7+ years electrolytic capacitor life

UL/CSA/IEC/IEC60601-1 and IEC62368-1 approved
-20ºC to +80ºC operating temperature range
Meets 4th edition/heavy industrial EMC
Less than 100 µA leakage current
Class I and Class II input versions available
3-year warranty

Applications

Home healthcare equipment
Ventilators
Patient monitors
Surgical equipment
Robotics
Analytical test equipment
MRI equipment
Medical imaging carts

Pump heaters and coolers
Water analysis
Dentist equipment
Hospital beds
Imaging
Diagnostics
Infusion pumps
Dialysis equipment
