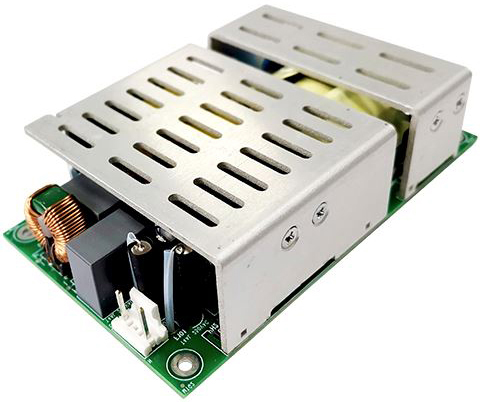

SLB300 Series 300 W 3” x 5” Power Supplies
SL Power’s dual rated open frame power supplies provide high convection rated power under the worst-case input voltages
SL Power’s SLB300 series are 300 W AC-to-DC internal power supplies for next-generation medical and industrial applications. The SLB family is designed to provide high convection-rated power under the worst-case input voltages and ambient operating temperatures. One of the most important aspects of medical power supplies is their safety approval. These models are approved to EN/IEC/UL60601-1, 3rd edition with isolation levels, and the latest EN/IEC/UL62368-1. These approvals satisfy the 2xMOPP requirements. In addition, these products are designed to meet UL/EN/IEC60601-1-2 and 4th edition for EMC.
The SLB300 models will operate at a universal input range of 80 VAC to 264 VAC over the wide temperature range of -20°C to +70°C, delivering full rated output power up to +50°C, and applicable output power derating at +70°C.
Standard output voltages are from 12 VDC to 56 VDC in both Class I and Class II input options.
- Small size of 3” x 5” x 1.4”
- UL/CSA/IEC/IEC60601-1 and IEC62368-1 approved
- For 1U applications
- 2xMOPP isolation
- 200 W convection cooled over the full operating range
- Meets 4th edition/heavy industrial EMC
- 300 W with 100 LFM airflow
- Operating temperature range: -10°C to +70°C (-40°C full load startup)
- Universal input: 80 VAC to 264 VAC
- Three-year warranty
- Operator knives
- Radiography systems
- Anesthesia machines
- Ultrasonic emulsification
- Recovery infrared radioisotopes
- X-ray generators
- Endoscopes
- 3 kg cobots
- Autonomous transport robot chargers
- Laser cutting
- Test chambers
- Water testers
- Therapeutic exercise bikes
- Architectural lighting
- Digital signage
SLB300 Series 300 W 3” x 5” Power Supplies
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | SLB300S12C | AC/DC CONVERTER 12V 200W | 0 - Immediate | $77.32 | View Details |
| | SLB300S48C | AC/DC CONVERTER 48V 202W | 0 - Immediate | $77.24 | View Details |
| | SLB300S24C | AC/DC CONVERTER 24V 200W | 0 - Immediate | $121.66 | View Details |
