μPOL™ Power Module
TDK μPOL™ DC-DC converters are compact and highly integrated point-of-load converters for powering CPUs, MCUs, ASICs, FPGAs, DSP, and other advanced digital logic devices, providing the high performance, fast load transient response, and high accuracy voltage regulation required by these devices. Micro-POL converters are high current density power modules that feature a chip-embedded power IC in a thermally enhanced semiconductor-embedded-in-substrate package.
Featured Products
| Product | Iout | Size Dimensions | Input Voltage | Output Voltage | Watts |
|---|---|---|---|---|---|
| FS1403 | 3A | 3.3 x 3.3 x 1.5mm | 8V to 16V | 3.3V, 5.0V | 15W |
| FS1404 | 4A | 3.3 x 3.3 x 1.5mm | 6V to 16V | 2.5V, 3.3V | 15W |
| FS1406 | 6A | 3.3 x 3.3 x 1.5mm | 4.5V to 16V | 0.6V to 2.5V | 15W |
| FS1412 | 12A | 4.9 x 5.8 x 1.6mm | 4.5V to 16V | 0.6V to 1.8V | 25W |
| FS1703 | 3A | 3.3 x 3.3 x 1.5mm | 4.5V to 5.5V | 5.5V | 15W |
Evaluation Boards
| Evaluation Boards | Description | Reference User Guide |
|---|---|---|
| EV1406-0600-A | FS1406 µPOL™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board | |
| EV1703-3300-A | FS1703 µPOL™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board | |
| EV1403-5000-A | FS1403 series DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board | |
| EV1404-3300-A | FS1404 series DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board | |
| EV1406-1800-A | FS1406 series DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board | |
| EV1412-0600-A | FS1412 series DC/DC Converter 1, Non-Isolated Outputs Evaluation Board | |
| TDK-PMBUS-I2C DONGLE | Programming dongle: I2C and PMBU |
Reference Designs
| Reference Designs | Ordering Code |
|---|---|
| 5W to 40W Multiple Modules | FS1412, FS1406, FS1404, FS1403 |
| FS1412 12A Design (20W+) | FS1412 |

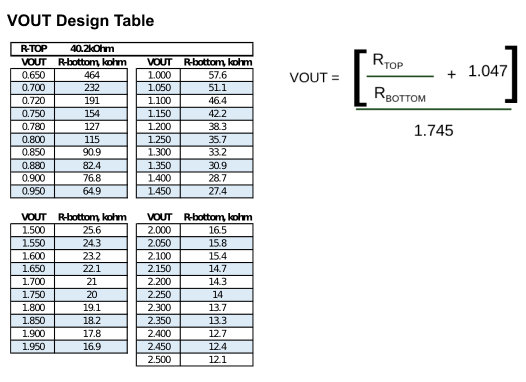

TDK μPOL™ DC-DC Fast Starter Reference Design: Power map, BOM, Schematics, Layout (Ultra Librarian)
Related Content
ECAD Models
Get Symbols, footprints, 3D models and reference designs from UltraLibrarian. - UltraLibrarian
TDK 15W µPOL DC-DC Converters with Ultra Librarian Support
Compact and highly integrated 15W µPOL™ DC-DC Converters
TDK FS1412 microPOL DC Converter
New 25W µPOL™ complete power module solutions for high-density applications
µPOL Technology
FS1406, FS1404, FS1403, Power for 5W to 150W Systems
µPOL Technology
State of the Art DC/DC converter
