Liquid Cold Plate Connectors

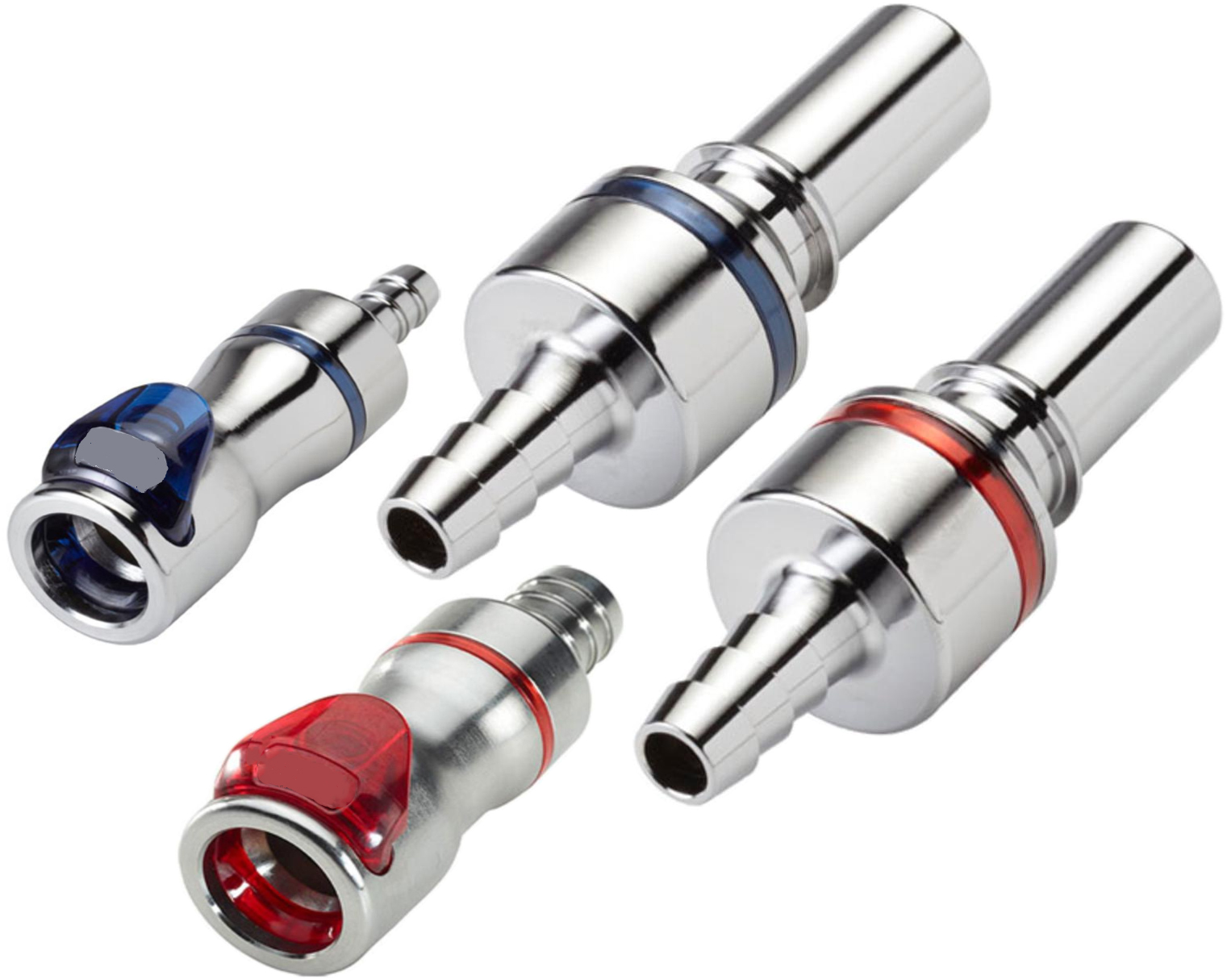

Wakefield Thermal's LPC Series quick disconnect couplings designed specifically for liquid cooling applications
Wakefield Thermal's LPC Series quick disconnect couplings provide ultra-reliable, dripless connections and disconnections that protect valuable electronics. Designed specifically for liquid cooling applications, LPC utilizes patent-pending valve technology that eliminates drips and can withstand long-term use.
Features and Benefits
- Non-spill design for disconnecting under pressure with no spills
- Redundant sealing when connected offers extra protection from leaks
- Color-coding provides instant visual difference in cooling lines
- Friction-free valve system designed for extended periods in connected state
- Ruggedness makes the connector able to withstand long-term, repeated use
- Rotation allows movement, eliminating tube kinking
Specifications
- Pressure:
- Vacuum to 120 psi, 8.3 bar
- Temperature:
- 0°F to +240°F (-17°C to +115°C)
- Maximum flow at disconnect:
- 3.0 gal/min, 11.3 L/min (LP4C)
- 4.0 gal/min, 15.1 L/min (LP6C)
- Materials:
- Main housing components: chrome-plated brass
- Valves and thumb latch: polysulfone
- Valve spring (wetted): stainless steel
- External spring: stainless steel
- Seals: EPDM
- Color:
- Chrome with Cool Blue or Warm Red
- Tubing sizes:
- 1/4" to 3/8" ID, 6.4 mm to 9.5 mm ID (LP4C)
- 3/8" to 1/2" ID, 9.5 mm to 12.7 mm ID (LP6C)
- Lubricants:
- Krytox® PFPE
- Spillage:
- LP4C
- 0.025 cc per disconnect rated at 0 psi
- 0.055 cc per disconnect rated at 120 psi
- LP6C
- 0.05 cc per disconnect rated at 0 psi
- 0.125 cc per disconnect rated at 120 psi
- Inclusion:
- 0.025 cc per connect (LP4C)
- 0.42 cc per connect (LP6C)
WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of Wakefield Thermal's products in their own application conditions.
Published: 2020-01-16
