New horticultural products from the high-power ceramic series from Würth Elektronik. Specially chosen wavelengths (450 nm, 660 nm and 730 nm) increase photosynthesis, optimizing plant development and growth. With outstanding PPF-value, small size and low power consumption, the WL-SMDC is the future choice for horticultural lighting.
Advantages of Horticulture LED Lighting

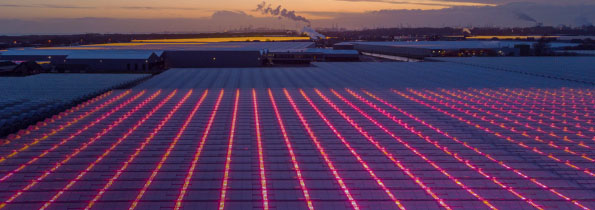

Supplemental Lighting in Greenhouses
The small size of the LED in combination with a low operating temperature delivers a wide range of applications. Würth Elektronik provides and selects with you the right LED for your target quality parameter in your specific application.

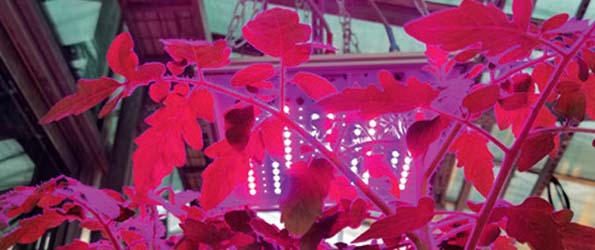

Through cooperations with universities and various associations, Würth Elektronik always stays up to date and knows the market needs.

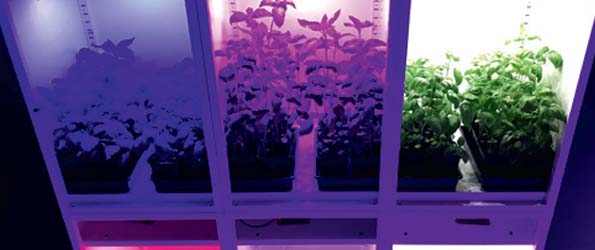

In our own Research Center, Würth Elektronik develops light recipes for different plants in different vegetation stages for special quality parameters.Test results: 15% more flowering, 30% more biomass, 50% more secondary plant metabolites.

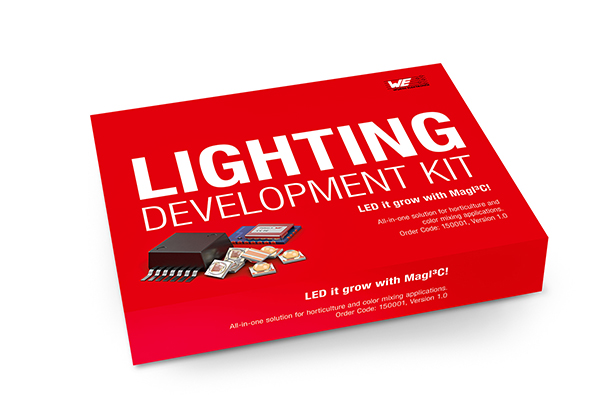

The Lighting Development Kit with Horticulture LEDs accelerates the development of systems for targeted plant lighting.
Characteristics:

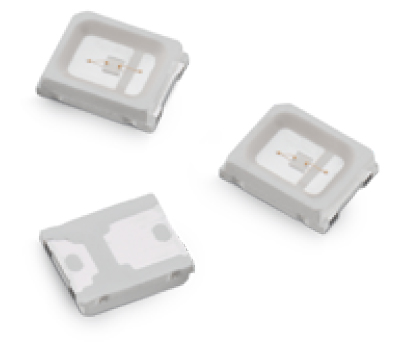

| Mid Power – Horticulture LEDs Size 2835 | @ 150 mA | |||
|---|---|---|---|---|
| Order Code | Emitting Color | λp (nm) | type PPF* | type PPE* |
| 150283DS73103 | Deep Blue | 450 | 0.94 µmol/s | 1.96 µmol/J |
| 150283HS73103 | Hyper Red | 660 | 0.66 µmol/s | 2.00 µmol/J |
| 150283FS73103 | Far Red | 730 | 0.67 µmol/s** | 2.03 µmol/J** |
| 150283BS73103 | Blue | 463 | 0.66 µmol/s | 1.41 µmol/J |
| 150283GS73103 | Green | 517 | 0.37 µmol/s | 0.78 µmol/J |
| 150283RS73103 | Red | 629 | 0.50 µmol/s | 1.56 µmol/J |
| High Power – Horticulture LEDs Size 3535 | @ 350 mA | |||
|---|---|---|---|---|
| Order Code | Emitting Color | λp (nm) | type PPF* | type PPE* |
| 150353DS74500 | Deep Blue | 450 | 2.32 µmol/s | 2.07 µmol/J |
| 150353HS74500 | Hyper Red | 660 | 2.42 µmol/s | 3.33 µmol/J |
| 150353FS74500 | Far Red | 730 | 1.94 µmol/s** | 3.08 µmol/J** |
| 150353BS74500 | Blue | 460 | 1.98 µmol/s | 1.77 µmol/J |
| 150353GS74500 | Green | 520 | 0.96 µmol/s | 0.80 µmol/J |
| 150353RS74500 | Red | 635 | 1.41 µmol/s | 1.84 µmol/J |
| Mid Power – Fullcolor LEDs Size 3030 | @ 65 mA | |||
|---|---|---|---|---|
| Order Code | Emitting Color | CCT | type PPF* | type PPE* |
| 158303227A | Sunrise | 2700 | 0.50 µmol/s | 2.77 µmol/J |
| 158303230A | Warm White | 3000 | 0.50 µmol/s | 2.77 µmol/J |
| 158303240A | Moonlight | 4000 | 1.50 µmol/J | 2.80 µmol/J |
| 158303250A | Daylight | 5000 | 1.50 µmol/J | 2.80 µmol/J |
| 158303260A | Cool White | 6000 | 1.50 µmol/J | 2.80 µmol/J |
| High Power – Ultraviolet LEDs Size 3535 | @ 350 mA | |||
|---|---|---|---|---|
| Order Code | Emitting Color | λp (nm) | type PPF** | type PPE** |
| 15335337AA350 | Ultraviolet | 365 | 1.68 µmol/J | 1.68 µmol/J |
| 15335338AA350 | Ultraviolet | 385 | 1.68 µmol/J | 1.68 µmol/J |
| 15335339AA350 | Ultraviolet | 395 | 1.68 µmol/J | 1.50 µmol/J |
| 15335340AA350 | Ultraviolet | 405 | 1.68 µmol/J | 1.50 µmol/J |
*PPF & PPE calculated in PAR (400 nm – 700 nm)
**PPF & PPE calculated in PBAR (280 nm – 800 nm
