WA-SNSN Series Snap Locks
Würth Elektronik offers their WA-SNSN series of miniature snap-in, spacers which lock on both ends

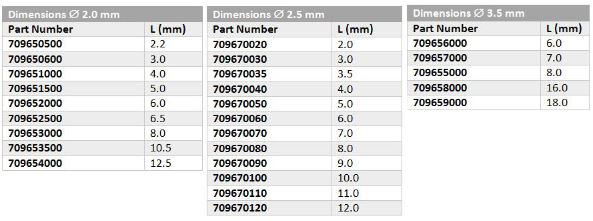

Würth Elektronik WA-SNSN series are offered with a snap-in feature on both ends for easy fixation. For part numbers 709650500 to 702654000, the panel thickness is 1.2 mm to 1.7 mm and the drilling in panel is 2.0 mm. For part numbers 709670020 to 709670120, the panel thickness is 1.6 mm and the drilling in panel is 2.5 mm. For part numbers 709656000 to 709659000, the panel thickness is 1.6 mm and the drilling in panel is 3.5 mm.
Features
- Material: nylon 66
- Color: natural
- Temperature resistance: -30°C to +85°C
- Flammability according to: UL 94 V-2
WA-SNSN Series
| Image | Manufacturer Part Number | Description | Length - Overall | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|
 |  | 709622400 | BRD SPT SNAP LOCK NYLON 12.70MM | 0.886" (22.50mm) | 1188 - Immediate | $0.24 | View Details |
|  | 709617400 | BOARD SUPRT SNAP LOCK NYLON 19MM | - | 1000 - Immediate | $0.22 | View Details |
|  | 709616400 | BOARD SPT SNAP LOCK NYLON 6.30MM | - | 990 - Immediate | $0.24 | View Details |
|  | 709650600 | BOARD SUPRT SNAP LOCK NYLON 3MM | 0.409" (10.40mm) | 0 - Immediate | $0.19 | View Details |
Published: 2016-11-14
