Power Conversion Passive Components
Designing power conversion systems just got a whole lot easier.

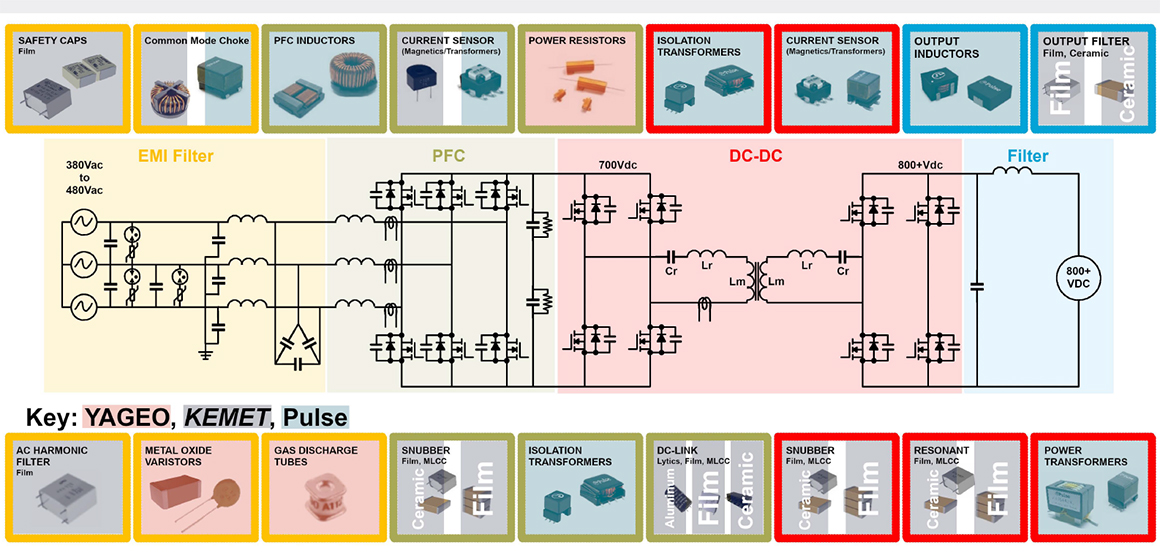

YAGEO Group Supports 98% of all passive component technologies, so to make it easier to navigate our parts, we went ahead and organized them in ways engineers actually use them. Our interactive tool is here to guide you through each stage of a power conversion system consisting of the EMI filter, the power factor corrector, the DC-DC converter, and finally the output filter. Each component of the system is selected to show you the latest and greatest we have to offer, all in one place. Simply click on the corresponding component, and we will provide all the details to help you make informed design decisions.
EMI Filter - Safety Capacitors
X/Y Film Safety Capacitors
KEMET's X/Y safety capacitors are used in a variety of applications to minimize electromagnetic interference
Ceramic X2Y® EMI Filter Capacitors
Pulse Electronics' EMI filter capacitors perform as a broadband filter enabling better EMC compliance for electrical equipment
EMI Filter - Common Mode Chokes
AEC-Q200 Common Mode Coils
KEMET's common mode choke coils have a variety of features suitable for automotive and harsh environment industrial applications
PFC - Current Sensor
Fluxgate-Based Residual Current Sensors - FG Series
KEMET’s fluxgate-based residual current sensors have a through-hole design for easy PCB mounting
PFC - Power Resistors
AHA/AHP Series Wirewound Resistors
YAGEO offer its AHA/AHP series of resistors that are compact in size and provide high-precision tolerance
DC-DC - Isolation Transformers
Double Power Density DC/DC Transformers – EP7+/EP10+ Core Design
Pulse Electronics' EP7+ series and EP10+ series achieve significant performance enhancement by using three-dimensional finite element analysis
DC-DC - Current Sensor
CT, C/CT, and ZCT Current Sensors
KEMET introduces their CT, C/CT, and ZCT current sensors
Fluxgate-Based Residual Current Sensors - FG Series
KEMET’s fluxgate-based residual current sensors have a through-hole design for easy PCB mounting
Filter - Output Inductors
High Current Inductors for Servers/Datacenters – PG/PGL Series
Pulse Electronics' high current inductors provide lower core loss using the latest high-frequency materials
METCOM MPX Metal Composite Power Inductors
KEMET's metal composite inductors are ideal for use in DC/DC switching power supplies
Filter - Output Filter Capacitors
Aluminum Conductive Polymer Capacitors
KEMET offers six series of single-ended and surface-mount, conductive polymer, aluminum, solid electrolytic capacitors
X7R with KONNEKT™
KEMET's capacitors are designed for applications where high capacitance and voltage are needed in small board space
Commodity Multilayer Ceramic Capacitors
YAGEO offers commodity MLCC capacitors for general purpose and high capacity applications
EMI Filter - AC Harmonic Filter
C4AT/C44H/C44P/C20A Series for PFC and AC Filter
KEMET's power film capacitors for use in harmonic filter applications
EMI Filter - Metal Oxide Varistors
MOV Circuit Protection Components
YAGEO's MOV family has high voltage and large withstanding surge current capacity
EMI Filter - Gas Discharge Tubes
GDT Circuit Protection Components
YAGEO offers different packages, including SMD and DIP type GDTs
PFC - Snubber
KC-LINK™ with KONNEKT™ Technology
KEMET's surface-mount capacitors are capable of handling extremely high ripple currents and can be mounted without metal frames
Metallized Film Pulse Capacitors
KEMET's metallized film pulse capacitors for use in power conversion applications
PFC - Isolation Transformers
High-Isolation Power Transformers, PH9385-Series
Pulse offers their PH9385-series of low-profile, compact, push-pull converter transformers
PFC - DC Link
DC Link Capacitors
KEMET’s DC link capacitors have the benefit of high voltage, high temperature, and long life
KC-LINK™ with KONNEKT™ Technology
KEMET's surface-mount capacitors are capable of handling extremely high ripple currents and can be mounted without metal frames
DC-DC Snubber
KC-LINK™ with KONNEKT™ Technology
KEMET's surface-mount capacitors are capable of handling extremely high ripple currents and can be mounted without metal frames
Metallized Film Pulse Capacitors
KEMET's metallized film pulse capacitors for use in power conversion applications
DC-DC - Resonant Capacitor
U2J Dielectric High-Voltage MLCC Capacitors
KEMET's surface-mount capacitors are designed to meet the growing demand for high-AC current-resonant applications
