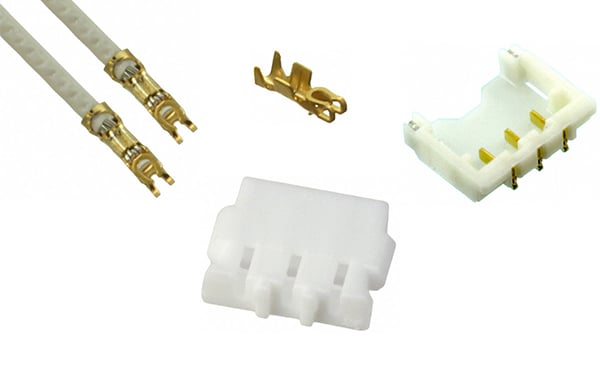

ACH Series
JST ACH series wire-to-board connectors were originally designed for DC power supply applications. Uniquely constructed, these 1.2mm (.047”) pitch, wire-to-board connectors feature a socket half that is mated with the header from the vertical direction, while the wires come out from the horizontal direction. The ultra-compact, low profile design provides flexibility.

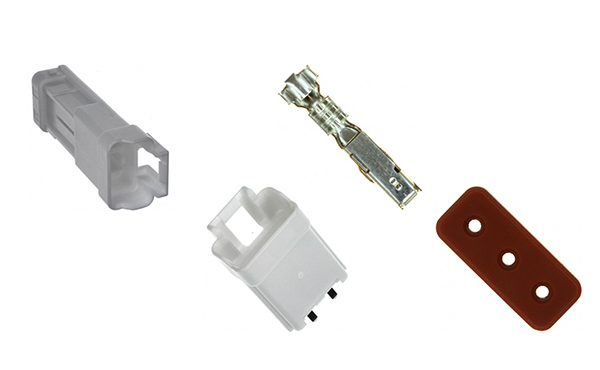

WPJ Series
The WPJ Series wire-to-wire and wire-to-board crimp style connector, recently introduced by JST Corporation, Waukegan, Illinois, was designed for both extreme moisture and non-submersion applications. The major uses of the WPJ series include automotive, appliance, underwater cameras or non-water resistance applications.
ZE Series
JST Corporation ZE Series wire-to-board crimp style connectors are designed with a secure locking device to ensure connector-mating integrity even under adverse conditions. These SMT and through-hole connectors are polarized and have a positive locking feature when mating to headers, including an audible click and tactile feedback.
