Smart home and planting - Guardian of the crops

121

* Thanks for the source code and project information provided by @Team EGC177 C4-Grp 3: Angel Zhang, geraldine5, shaayyne_lim, Shen Yao

Story

How can we create a product that promotes the sustainability of crops (similar to urban farming) by monitoring its status, promoting healthy growth and protecting it from harm at the same time?

1. The M5Stack will display temperature and humidity values for the owner to refer to (using ENV II sensor)

2. Once the PIR sensor detects little creatures that are relatively close to the plants, the alarm will buzz to chase them away (prevent them from damaging the plant)

3. Once the EARTH sensor detects that the moisture level of the soil exceeds the healthy level (max moisture value), the shelter will close automatically. (Owners can preset the max moisture level to their preference depending on the species of the plant)

4. Owners can choose to close or open the shelter manually with the press of buttons B and C on M5Stack

5. Owners can press button A to play music for the plants (enrich their germination process with music as it can stimulate plant growth)

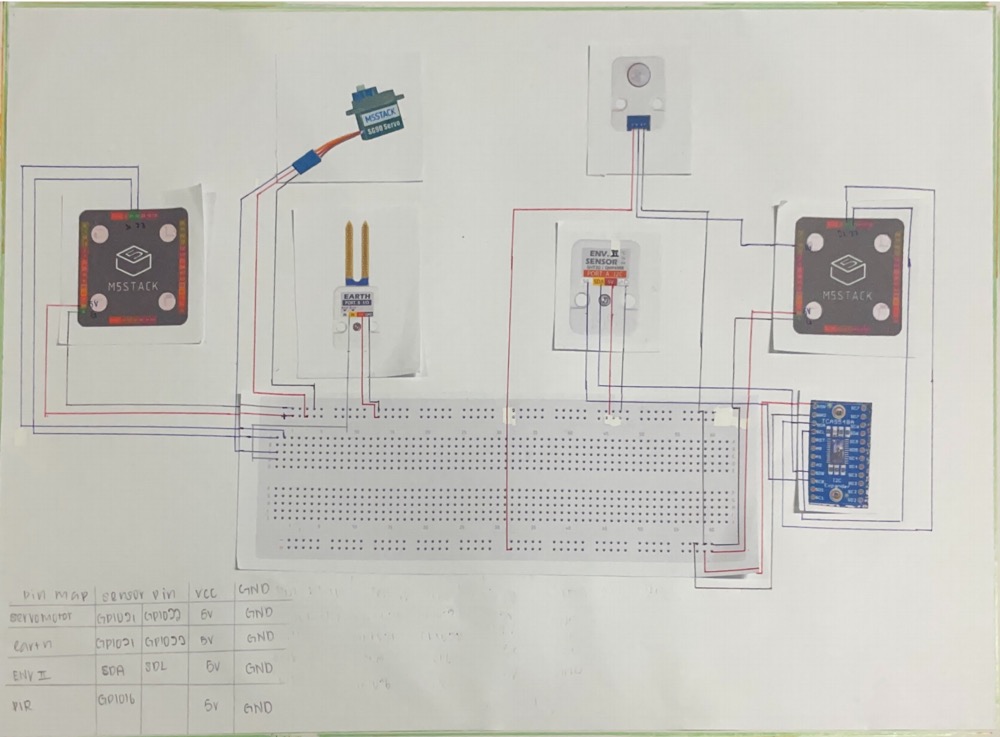

Schematics & Circuit Diagram

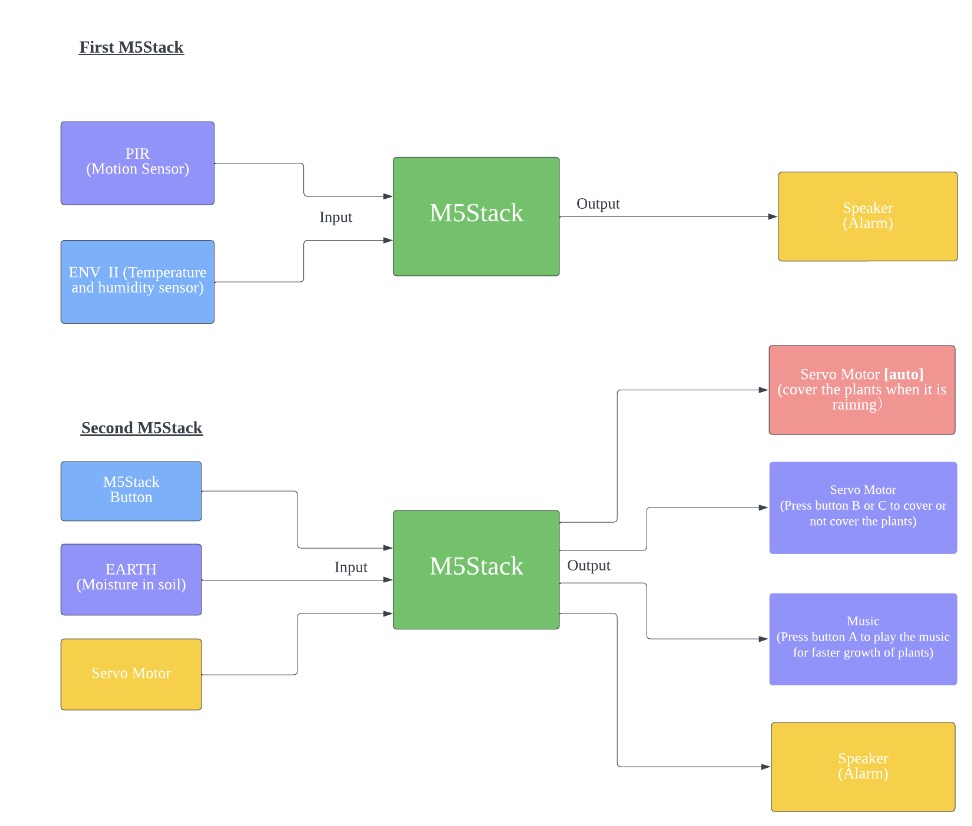

Block Diagram

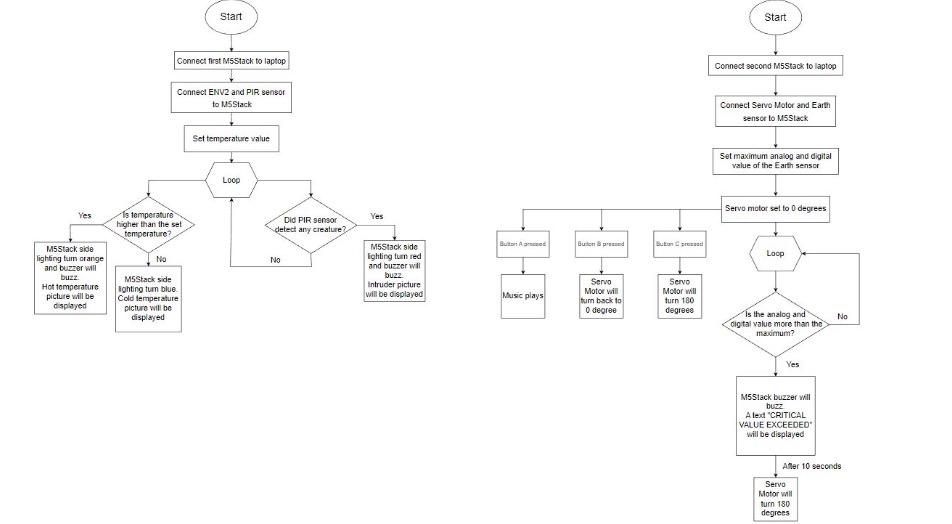

Flowchart

Code

The 1st M5Stack Python

Copy Code

{"components":[{"id":"____screen","createTime":1667527164315,"name":"screen","x":0,"y":0,"width":320,"height":240,"backgroundColor":"#222222","backgroundImage":"","type":"screen"},{"id":"____buttonA","createTime":1667527164315,"name":"ButtonA","buttonIndex":0,"x":35,"y":216,"width":64,"height":24,"text":"ButtonA","visibility":false,"type":"button"},{"id":"____buttonB","createTime":1667527164315,"name":"ButtonB","buttonIndex":1,"x":125,"y":216,"width":64,"height":24,"text":"ButtonB","visibility":false,"type":"button"},{"id":"____buttonC","createTime":1667527164315,"name":"ButtonC","buttonIndex":2,"x":215,"y":216,"width":64,"height":24,"text":"ButtonC","visibility":false,"type":"button"},{"id":"mL29yqrTJwyy-7A`","createTime":1674111835365,"isCoreTwo":false,"isPaper":false,"name":"label0","x":13,"y":188,"color":"#00beff","text":"Temperature:","font":"lcd.FONT_Default","rotation":0,"type":"label","layer":32},{"id":"Gx0eFa3DmTQel=P9","createTime":1674111851144,"isCoreTwo":false,"isPaper":false,"name":"label1","x":13,"y":210,"color":"#ff6b6b","text":"Humidity:","font":"lcd.FONT_Default","rotation":0,"type":"label","layer":33},{"id":"ai!8jaV4U$$=!7DG","createTime":1674111960947,"isCoreTwo":false,"isPaper":false,"name":"label4","x":260,"y":188,"color":"#00beff","text":"Text","font":"lcd.FONT_Default","rotation":0,"type":"label","layer":37},{"id":"!YRPuOnp*NlJGL3J","createTime":1674111963085,"isCoreTwo":false,"isPaper":false,"name":"label5","x":260,"y":210,"color":"#ff6b6b","text":"Text","font":"lcd.FONT_Default","rotation":0,"type":"label","layer":38},{"id":"=Mziz`pZpZ``6ad@","createTime":1674112640446,"isCoreTwo":false,"isCoreInk":false,"isPaper":false,"name":"image1","x":13,"y":26,"imagePath":"coolTemp.png","visibility":true,"imageInvert":false,"imageThreshold":128,"type":"image","layer":45},{"id":"26x0s-4LgGkfVmMB","createTime":1674112779725,"isCoreTwo":false,"isCoreInk":false,"isPaper":false,"name":"image0","x":13,"y":26,"imagePath":"Hightemp.png","visibility":true,"imageInvert":false,"imageThreshold":128,"type":"image","layer":46},{"id":"nnxZKhLG+H6T7bRg","createTime":1674712489669,"isCoreTwo":false,"isCoreInk":false,"isPaper":false,"name":"image2","x":187,"y":13,"imagePath":"intru120px.jpg","visibility":true,"imageInvert":false,"imageThreshold":128,"type":"image","layer":62},{"id":"SZ#M1YV$9wK9i8jQ","createTime":1674712565504,"isCoreTwo":false,"isPaper":false,"name":"label2","x":182,"y":142,"color":"#fffcfc","text":"Intruder Alert !!!","font":"lcd.FONT_Default","rotation":0,"type":"label","layer":63},{"id":"lcSkMNVTw%ioj+aM","createTime":1674789368663,"isCoreTwo":false,"isPaper":false,"name":"label3","x":14,"y":142,"color":"#FFFFFF","text":"Temp too high!","font":"lcd.FONT_Default","rotation":0,"type":"label","layer":36}],"type":"fire","versions":"Beta","units":[{"id":"ExOdwoQWixk`#1Rd","createTime":1675394452524,"hidden":false,"type":"env2","name":"env2_3","port":"A","default":["A","E","PAHUB","Custom"],"pb_port":[0,1,2,3,4,5],"new_pb_port":"3","user_port":["21","22"],"icon":"env2.png"},{"id":"ggAA4bs#jp1P=zxL","createTime":1675394452524,"type":"pir","name":"pir_2","port":"B","default":["A","B","E","Custom"],"user_port":["21","22"],"icon":"pir.png"}],"hats":[],"blockly":"<variables><variable id=\"F@(NK~u/IK3NgxNE3rqz\">Temperature</variable><variable id=\"(NrGcxvZQHuEe:rmyD|C\">MaxAnalogValue</variable><variable id=\"q6X+=/(7LiNNc|Bl*g3U\">MaxDigitalValue</variable></variables><block type=\"basic_on_setup\" id=\"BhEz5eF/2Ai:m*|;_$3:\" disabled=\"true\" deletable=\"false\" x=\"-130\" y=\"10\"></block><block type=\"basic_on_setup\" id=\"setup_block\" deletable=\"false\" x=\"50\" y=\"50\"><next><block type=\"variables_set\" id=\"-f1THs_mXa{*A+Wl^%|A\"><field name=\"VAR\" id=\"F@(NK~u/IK3NgxNE3rqz\">Temperature</field><value name=\"VALUE\"><block type=\"math_number\" id=\".Fo%=Po?/#peT^)9Q`x=\"><field name=\"NUM\">25</field></block></value><next><block type=\"variables_set\" id=\"|{K*nii)Bc#%0tBNPFAI\"><field name=\"VAR\" id=\"(NrGcxvZQHuEe:rmyD|C\">MaxAnalogValue</field><value name=\"VALUE\"><block type=\"math_number\" id=\"]qt(X|S@#-SGK:axQJ9h\"><field name=\"NUM\">300</field></block></value><next><block type=\"variables_set\" id=\"NrsL_3`2ZSclF!=Aups5\"><field name=\"VAR\" id=\"q6X+=/(7LiNNc|Bl*g3U\">MaxDigitalValue</field><value name=\"VALUE\"><block type=\"math_number\" id=\"Q(#gF1*zt2cvW6X`7fs%\"><field name=\"NUM\">2</field></block></value><next><block type=\"image_set_image\" id=\"PL6+kE1lm3W`cTT`*Z:I\"><field name=\"COMPONENT\">image0</field><field name=\"IMAGE\">Hightemp.png</field><next><block type=\"image_set_image\" id=\"Wj0I7K#Sgj%BA%A+GDQv\"><field name=\"COMPONENT\">image1</field><field name=\"IMAGE\">coolTemp.png</field><next><block type=\"image_set_image\" id=\"a(A1zM+Q}Xn)/Mn%Ady+\"><field name=\"COMPONENT\">image2</field><field name=\"IMAGE\">intru120px.jpg</field><next><block type=\"label_set_text\" id=\"t305D*fga4O7|u]Z%{CT\"><field name=\"COMPONENT\">label4</field><value name=\"TEXT\"><shadow type=\"text\" id=\"Jh8pT5]]`=P{xVTA2JC$\"><field name=\"TEXT\">Hello M5</field></shadow><block type=\"dht12_get_temperature\" id=\"@O7*RXp!PkpKRW2c)?%T\"><field name=\"VARNAME\">env2_3</field></block></value><next><block type=\"label_set_text\" id=\"u;K^1[nzO]9iXz8W.Fou\"><field name=\"COMPONENT\">label5</field><value name=\"TEXT\"><shadow type=\"text\" id=\";EXJwX3q[k-Z6|mAGSYA\"><field name=\"TEXT\">Hello M5</field></shadow><block type=\"dht12_get_humidity\" id=\"|UdUCc~+KQf*n)CZdY%u\"><field name=\"VARNAME\">env2_3</field></block></value><next><block type=\"label_set_mode\" id=\";1LANeqWhP7fySW!f8Sr\"><field name=\"COMPONENT\">label2</field><field name=\"MODE\">True</field><next><block type=\"image_hide\" id=\"7Z/u$hn7L+dX,k=UyW,~\"><field name=\"COMPONENT\">image2</field><next><block type=\"basic_on_loop\" id=\"J[l{bQV+`(5)Lq-|wY,d\"><statement name=\"LOOP\"><block type=\"controls_ifelse\" id=\"((HgiDCGuTPY)N1s7^c.\"><value name=\"IF0\"><block type=\"logic_compare\" id=\"Kg.I].CD?mJB$vfP*~TO\"><field name=\"OP\">GTE</field><value name=\"A\"><block type=\"dht12_get_temperature\" id=\"!2i/ik1i=3:kIq(]Xh%s\"><field name=\"VARNAME\">env2_3</field></block></value><value name=\"B\"><block type=\"variables_get\" id=\"1eti9AnXpIEP%K4/NQ`;\"><field name=\"VAR\" id=\"F@(NK~u/IK3NgxNE3rqz\">Temperature</field></block></value></block></value><statement name=\"DO0\"><block type=\"label_set_text\" id=\"aFM_i*!*+N6-C;z3E+B2\"><field name=\"COMPONENT\">label4</field><value name=\"TEXT\"><shadow type=\"text\" id=\"^^!*LpbB%j],jooCNqBA\" disabled=\"true\"><field name=\"TEXT\">Hello M5</field></shadow><block type=\"dht12_get_temperature\" id=\"8*Y~0t9f4FRVMk`lmMy8\"><field name=\"VARNAME\">env2_3</field></block></value><next><block type=\"rgb_set_all\" id=\"!ZvrK5Q;MVOD$}kS4Zx{\"><field name=\"COLOR\">#ff9900</field><next><block type=\"image_show\" id=\"PsY^SCw~07!iElwR0|BT\"><field name=\"COMPONENT\">image0</field><next><block type=\"image_hide\" id=\"gG/q[A[Yf2+CJ1gY2AH$\"><field name=\"COMPONENT\">image1</field><next><block type=\"image_hide\" id=\"J4CGY#LxXO~2D%qzaOG0\"><field name=\"COMPONENT\">image2</field><next><block type=\"label_set_mode\" id=\"m8r6Ns3r`VA`UMh-uRK{\"><field name=\"COMPONENT\">label2</field><field name=\"MODE\">True</field><next><block type=\"label_set_mode\" id=\"y%X;V~x7w!A=0,5g[c9;\"><field name=\"COMPONENT\">label3</field><field name=\"MODE\">False</field><next><block type=\"speaker_tone\" id=\"PzdY-+[Tny;{@+wLkp:E\"><value name=\"FREQ\"><shadow type=\"math_number\" id=\"QK+xeC4@)B}VyS+}Bgm3\"><field name=\"NUM\">2000</field></shadow></value><value name=\"TIMEOUT\"><shadow type=\"math_number\" id=\"pu3%moAi%@F8e#P/|){8\"><field name=\"NUM\">0</field></shadow></value><next><block type=\"speaker_vol\" id=\"B)DOZ7p1sUO%_s_L[,Mj\"><value name=\"VOLUME\"><shadow type=\"math_number\" id=\"L.v6plYX4T|z2flck?ae\"><field name=\"NUM\">5</field></shadow></value></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></statement><statement name=\"ELSE\"><block type=\"rgb_set_all\" id=\"g+/D?~_IvW7$;@2_1CN|\"><field name=\"COLOR\">#33ccff</field><next><block type=\"image_show\" id=\"1l%X]-Jjh*todU^ohdXb\"><field name=\"COMPONENT\">image1</field><next><block type=\"image_hide\" id=\"j/`qeNkU)7@9zrzd0@U/\"><field name=\"COMPONENT\">image0</field><next><block type=\"image_hide\" id=\"_Ygh]Ry-_taK%cPg6Qx4\"><field name=\"COMPONENT\">image2</field><next><block type=\"label_set_mode\" id=\"PBQ1dSPmjPY9Z`M;+z0$\"><field name=\"COMPONENT\">label2</field><field name=\"MODE\">True</field><next><block type=\"label_set_mode\" id=\"cv.-D1oTjD)b4KW#g/ym\"><field name=\"COMPONENT\">label3</field><field name=\"MODE\">True</field></block></next></block></next></block></next></block></next></block></next></block></statement><next><block type=\"controls_if\" id=\"n^O~9STdkyb~P{mT{pgV\"><value name=\"IF0\"><block type=\"logic_compare\" id=\".YoSS=JF/5gU]]wIuxYT\"><field name=\"OP\">EQ</field><value name=\"A\"><block type=\"pir_read\" id=\"/Xi?G8q3d@9#BS?vQBOH\"><field name=\"VARNAME\">pir_2</field></block></value><value name=\"B\"><block type=\"math_number\" id=\"u}cYEf?m;YLI@vxHt3UF\"><field name=\"NUM\">1</field></block></value></block></value><statement name=\"DO0\"><block type=\"label_set_mode\" id=\"=VKUYUp[~{_.1xdD)f|S\"><field name=\"COMPONENT\">label2</field><field name=\"MODE\">False</field><next><block type=\"image_hide\" id=\"~X?CMB?dd@%Q$d%,cD`q\"><field name=\"COMPONENT\">image1</field><next><block type=\"image_hide\" id=\"1f#2uN_iG,8,F4xe|q`K\"><field name=\"COMPONENT\">image0</field><next><block type=\"image_show\" id=\",N}P49BA@DK7n@.I5a?E\"><field name=\"COMPONENT\">image2</field><next><block type=\"rgb_set_all\" id=\"}d!PmW#u~8{j-{`W1j6)\"><field name=\"COLOR\">#ff0000</field><next><block type=\"speaker_tone\" id=\"C)GyR.UX+m%4K:%`l-Ul\"><value name=\"FREQ\"><shadow type=\"math_number\" id=\";P+xJJ4uNGA?w3_?Sf=:\"><field name=\"NUM\">1000</field></shadow></value><value name=\"TIMEOUT\"><shadow type=\"math_number\" id=\"NP3m]w%fa2O2MmrY+CUV\"><field name=\"NUM\">1000</field></shadow></value><next><block type=\"speaker_vol\" id=\"9iTP5P=sUgf0r@UKw9nJ\"><value name=\"VOLUME\"><shadow type=\"math_number\" id=\"Tf;=P.sJD5K1,livnMXZ\"><field name=\"NUM\">1</field></shadow></value></block></next></block></next></block></next></block></next></block></next></block></next></block></statement></block></next></block></statement></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block>","Blockly.Remotes":[],"Blockly.RemotePlus":[{"id":"__title","blockId":"","createTime":1675394452524,"name":"M5RemoteTitle","dragAndDrop":false,"resizable":false,"options":{"minWidth":1,"minHeight":1,"maxWidth":6,"maxHeight":10,"defaultWidth":2,"defaultHeight":1},"w":2,"h":1,"bgColor":"#0080FF","color":"#fff","fontsize":"M","label":"M5Remote","interval":3000,"code":"","event":"","dataSource":"none","ezdataToken":"","topic":"","needShadow":false,"type":"title","x":0,"y":0}],"modules":["rgb"],"cbIdList_":[],"eventCBIdList_":[]}

The 2nd M5Stack Python

Copy Code

{"components":[{"id":"____screen","createTime":1667527164315,"name":"screen","x":0,"y":0,"width":320,"height":240,"backgroundColor":"#222222","backgroundImage":"","type":"screen"},{"id":"____buttonA","createTime":1667527164315,"name":"ButtonA","buttonIndex":0,"x":35,"y":216,"width":64,"height":24,"text":"ButtonA","visibility":false,"type":"button"},{"id":"____buttonB","createTime":1667527164315,"name":"ButtonB","buttonIndex":1,"x":125,"y":216,"width":64,"height":24,"text":"ButtonB","visibility":false,"type":"button"},{"id":"____buttonC","createTime":1667527164315,"name":"ButtonC","buttonIndex":2,"x":215,"y":216,"width":64,"height":24,"text":"ButtonC","visibility":false,"type":"button"},{"id":"%_EdNjcrsmve!xXQ","createTime":1674184796940,"isCoreTwo":false,"isPaper":false,"name":"label4","x":224,"y":96,"color":"#FFFFFF","text":"Text","font":"lcd.FONT_Default","rotation":0,"type":"label","layer":25},{"id":"4%$bk0BcB%51$dk@","createTime":1674184819027,"isCoreTwo":false,"isPaper":false,"name":"label6","x":224,"y":157,"color":"#FFFFFF","text":"Text","font":"lcd.FONT_Default","rotation":0,"type":"label","layer":26},{"id":"1m$5UljR6_YuldHm","createTime":1674186670584,"isCoreTwo":false,"isPaper":false,"name":"label2","x":13,"y":52,"color":"#ff0000","text":"CRITICAL VALUE EXCEEDED!!","font":"lcd.FONT_DejaVu18","rotation":0,"type":"label","layer":28},{"id":"njbJD7^7bOmKi$mR","createTime":1674283995147,"isCoreTwo":false,"isPaper":false,"name":"label3","x":40,"y":96,"color":"#FFFFFF","text":"Analog Value","font":"lcd.FONT_Default","rotation":0,"type":"label","layer":45},{"id":"6%&-cAwzr0OyG!Dh","createTime":1674283998076,"isCoreTwo":false,"isPaper":false,"name":"label5","x":40,"y":157,"color":"#FFFFFF","text":"Digital Value","font":"lcd.FONT_Default","rotation":0,"type":"label","layer":46},{"id":"o19JFRf9LK%1#8sG","createTime":1674284076564,"isCoreTwo":false,"isPaper":false,"name":"label1","x":0,"y":0,"color":"#FFFFFF","text":"Soil Moisture Value:","font":"lcd.FONT_Default","rotation":0,"type":"label","layer":47}],"type":"fire","versions":"Beta","units":[{"id":"0QJTFSwgrUMgZgQ1","createTime":1675994776097,"stickType":"stick","type":"earth","name":"earth_2","port":"B","default":["B","D","Custom"],"user_port":["21","22"],"icon":"earth.png"},{"id":"^$ui`5aFNj7xtWNw","createTime":1675994776097,"type":"servo","name":"servo_7","port":"A","default":["A","B","E","Custom"],"user_port":["21","22"],"icon":"servo.png"}],"hats":[],"blockly":"<variables><variable id=\"(NrGcxvZQHuEe:rmyD|C\">MaxAnalogValue</variable><variable id=\"q6X+=/(7LiNNc|Bl*g3U\">MaxDigitalValue</variable></variables><block type=\"basic_on_setup\" id=\"setup_block\" deletable=\"false\" x=\"-110\" y=\"230\"><next><block type=\"variables_set\" id=\"|{K*nii)Bc#%0tBNPFAI\"><field name=\"VAR\" id=\"(NrGcxvZQHuEe:rmyD|C\">MaxAnalogValue</field><value name=\"VALUE\"><block type=\"math_number\" id=\"]qt(X|S@#-SGK:axQJ9h\"><field name=\"NUM\">700</field></block></value><next><block type=\"variables_set\" id=\"NrsL_3`2ZSclF!=Aups5\"><field name=\"VAR\" id=\"q6X+=/(7LiNNc|Bl*g3U\">MaxDigitalValue</field><value name=\"VALUE\"><block type=\"math_number\" id=\"Q(#gF1*zt2cvW6X`7fs%\"><field name=\"NUM\">2</field></block></value><next><block type=\"servo_init\" id=\"C`N=,NCBbd;-g3iY5ZRV\"><field name=\"VARNAME\">servo7</field><value name=\"PIN\"><shadow type=\"math_number\" id=\"o9+CAw3e-eov%w$GJf0E\"><field name=\"NUM\">21</field></shadow></value><value name=\"FREQ\"><shadow type=\"math_number\" id=\"e`c?ZdfIVqA4z5=u,RF%\"><field name=\"NUM\">50</field></shadow></value><value name=\"MIN_US\"><shadow type=\"math_number\" id=\".j[8qv8rYFUFd#O(_K14\"><field name=\"NUM\">500</field></shadow></value><value name=\"MAX_US\"><shadow type=\"math_number\" id=\"/gWe:.n98.1IOIlT_@/T\"><field name=\"NUM\">2500</field></shadow></value><value name=\"ANGLE\"><shadow type=\"math_number\" id=\"xDFuoBP,7!Xc*Ny=:QIz\"><field name=\"NUM\">180</field></shadow></value><next><block type=\"servo_unit_write_angle\" id=\"ku@l|t2!*C9y$Rc8+FSh\"><field name=\"VARNAME\">servo_7</field><value name=\"ANGLE\"><shadow type=\"math_number\" id=\"M!52(xDT*.d#R]QgKO@z\"><field name=\"NUM\">0</field></shadow></value><next><block type=\"label_set_text\" id=\"h^3B0{gpo?Lb(}80kPk3\"><field name=\"COMPONENT\">label4</field><value name=\"TEXT\"><shadow type=\"text\"><field name=\"TEXT\">Hello M5</field></shadow><block type=\"earth_a_read\" id=\"[]OWUZg8I7s/1X}}irdY\"><field name=\"VARNAME\">earth_2</field></block></value><next><block type=\"label_set_text\" id=\"~BPl}U_t^Sz5iB=WzAY[\"><field name=\"COMPONENT\">label6</field><value name=\"TEXT\"><shadow type=\"text\" id=\"3nGqbh/e^LSvkQS~O+M[\" disabled=\"true\"><field name=\"TEXT\">Hello M5</field></shadow><block type=\"earth_d_read\" id=\"GB2aK_S]IG*pdFoeFWj%\"><field name=\"VARNAME\">earth_2</field></block></value><next><block type=\"label_set_mode\" id=\"4qy7;Wf~:lf^;{/^valw\"><field name=\"COMPONENT\">label2</field><field name=\"MODE\">True</field><next><block type=\"basic_on_loop\" id=\"t;c0$gHhnlC=gWKjdWIN\"><statement name=\"LOOP\"><block type=\"controls_if\" id=\"#kd19H$O?Aks6H_bc?M6\"><value name=\"IF0\"><block type=\"logic_compare\" id=\"$He0)Hr^5!QKA-OD9*:X\"><field name=\"OP\">GTE</field><value name=\"A\"><block type=\"earth_a_read\" id=\"@)K%}`4/:wz%L-J+wGK[\"><field name=\"VARNAME\">earth_2</field></block></value><value name=\"B\"><block type=\"variables_get\" id=\"y)5CG?#_@(@5+BMsftdW\"><field name=\"VAR\" id=\"(NrGcxvZQHuEe:rmyD|C\">MaxAnalogValue</field></block></value></block></value><statement name=\"DO0\"><block type=\"label_set_text\" id=\"qHO+9bA7q*Y;@h^E`.iv\"><field name=\"COMPONENT\">label4</field><value name=\"TEXT\"><shadow type=\"text\"><field name=\"TEXT\">Hello M5</field></shadow><block type=\"earth_a_read\" id=\"S_t)aOZ)3z:+1KzJY}v?\"><field name=\"VARNAME\">earth_2</field></block></value><next><block type=\"label_set_mode\" id=\"kct5d_,cagLqY$E^jju7\"><field name=\"COMPONENT\">label2</field><field name=\"MODE\">False</field><next><block type=\"speaker_tone\" id=\"Pov_/P=OLM0`|As:`gRp\"><value name=\"FREQ\"><shadow type=\"math_number\" id=\"S2yaw0LUPZ},]Y/f[6Vz\"><field name=\"NUM\">1800</field></shadow></value><value name=\"TIMEOUT\"><shadow type=\"math_number\" id=\"/z=9ba4}gHxi4d}[]3)F\"><field name=\"NUM\">200</field></shadow></value><next><block type=\"speaker_vol\" id=\"K8xH8sMClNeGyGV?!@fJ\"><value name=\"VOLUME\"><shadow type=\"math_number\" id=\"zscv/n$}3yPIEdz^7PH8\"><field name=\"NUM\">1</field></shadow></value><next><block type=\"timer_delay\" id=\"PxymR*)6p%2),A.t(Um#\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"hQvJnvTKNf0|mhCP5AB%\"><field name=\"NUM\">10</field></shadow></value><next><block type=\"servo_init\" id=\"c?T2RdEc1-Tl3Do[+C8[\"><field name=\"VARNAME\">servo7</field><value name=\"PIN\"><shadow type=\"math_number\" id=\"OP_+y@{~*Q;h~R~licmq\"><field name=\"NUM\">21</field></shadow></value><value name=\"FREQ\"><shadow type=\"math_number\" id=\"[Y]2Zy9U[Hwx1l^7~PpP\"><field name=\"NUM\">50</field></shadow></value><value name=\"MIN_US\"><shadow type=\"math_number\" id=\"Fxld9JD)5ZgwqPP+GdKt\"><field name=\"NUM\">500</field></shadow></value><value name=\"MAX_US\"><shadow type=\"math_number\" id=\"fG7o:[mLNEAk-OC{TM}v\"><field name=\"NUM\">2500</field></shadow></value><value name=\"ANGLE\"><shadow type=\"math_number\" id=\"8IJ@OEMrN]rXm8lD/BB.\"><field name=\"NUM\">180</field></shadow></value><next><block type=\"servo_unit_write_angle\" id=\"0:MHj7bRTS:Qpup5oQKt\"><field name=\"VARNAME\">servo_7</field><value name=\"ANGLE\"><shadow type=\"math_number\" id=\"$AE%Htl1lF7vmmZvm^S[\"><field name=\"NUM\">180</field></shadow></value></block></next></block></next></block></next></block></next></block></next></block></next></block></statement><next><block type=\"controls_if\" id=\"[_3Q%3#erao}dEM9C@Lt\"><value name=\"IF0\"><block type=\"logic_compare\" id=\"ke)]GGin5}JJV$R]ud[B\"><field name=\"OP\">GTE</field><value name=\"A\"><block type=\"earth_d_read\" id=\"X$k0b-UW(.{!m=n*XHab\"><field name=\"VARNAME\">earth_2</field></block></value><value name=\"B\"><block type=\"variables_get\" id=\"9?edy3`x)5`:,rUw$=V~\"><field name=\"VAR\" id=\"q6X+=/(7LiNNc|Bl*g3U\">MaxDigitalValue</field></block></value></block></value><statement name=\"DO0\"><block type=\"label_set_text\" id=\"[!PKJi{MO#u.KexuE/OQ\"><field name=\"COMPONENT\">label6</field><value name=\"TEXT\"><shadow type=\"text\" disabled=\"true\"><field name=\"TEXT\">Hello M5</field></shadow><block type=\"earth_d_read\" id=\"Min_}auAT-n|yBT9AlM]\"><field name=\"VARNAME\">earth_2</field></block></value><next><block type=\"label_set_mode\" id=\"P%Y$/gFAi6XMH,x^0~}8\"><field name=\"COMPONENT\">label2</field><field name=\"MODE\">False</field><next><block type=\"speaker_tone\" id=\";L74a9Z02er%$:^gE#JI\"><value name=\"FREQ\"><shadow type=\"math_number\" id=\"vX|X;=7=LB0xy0qF]8Zb\"><field name=\"NUM\">1800</field></shadow></value><value name=\"TIMEOUT\"><shadow type=\"math_number\" id=\"u~/_Pv2kYlYXO^e^#r@K\"><field name=\"NUM\">200</field></shadow></value><next><block type=\"speaker_vol\" id=\"pikpO[k52E^w=aK4-yxX\"><value name=\"VOLUME\"><shadow type=\"math_number\" id=\"e5fk!Q_C).5m_L~uE|CC\"><field name=\"NUM\">1</field></shadow></value><next><block type=\"timer_delay\" id=\"ppdYS!85R#Y#V{Qq84~3\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"XYw+r@FW!nau2u}$I)Vm\"><field name=\"NUM\">10</field></shadow></value><next><block type=\"servo_init\" id=\"+4IP3!+Wwyr{}*R3od!e\"><field name=\"VARNAME\">servo7</field><value name=\"PIN\"><shadow type=\"math_number\" id=\"p|q/G_VV-,g((obXB/cU\"><field name=\"NUM\">21</field></shadow></value><value name=\"FREQ\"><shadow type=\"math_number\" id=\"@z3_*}{1cj#OyS5;dXJq\"><field name=\"NUM\">50</field></shadow></value><value name=\"MIN_US\"><shadow type=\"math_number\" id=\"`OCw2Inc}tg0Rm1jhenY\"><field name=\"NUM\">500</field></shadow></value><value name=\"MAX_US\"><shadow type=\"math_number\" id=\"1e#~#W;+x6HCJieM?2:*\"><field name=\"NUM\">2500</field></shadow></value><value name=\"ANGLE\"><shadow type=\"math_number\" id=\"DXO{:t0^}|P.$V;C%+TQ\"><field name=\"NUM\">180</field></shadow></value><next><block type=\"servo_unit_write_angle\" id=\"Wed4,bwl9Z~:XR_u@H=c\"><field name=\"VARNAME\">servo_7</field><value name=\"ANGLE\"><shadow type=\"math_number\" id=\"kxe/7-xk3.*w50r`w-6Q\"><field name=\"NUM\">180</field></shadow></value></block></next></block></next></block></next></block></next></block></next></block></next></block></statement></block></next></block></statement></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block><block type=\"button_callback\" id=\"SULY!wW0adbryROKDOpR\" x=\"690\" y=\"250\"><field name=\"BUTTON\">B</field><field name=\"EVENT\">wasPressed</field><statement name=\"FUNC\"><block type=\"servo_init\" id=\"yx-bPIt9IS|=WTx?vLMz\"><field name=\"VARNAME\">servo7</field><value name=\"PIN\"><shadow type=\"math_number\" id=\"HokS21?;jAbDm)Mthz12\"><field name=\"NUM\">21</field></shadow></value><value name=\"FREQ\"><shadow type=\"math_number\" id=\"vY8A=e+L-`;RZ382qMJ2\"><field name=\"NUM\">50</field></shadow></value><value name=\"MIN_US\"><shadow type=\"math_number\" id=\")9#8TT8gdJCEbXh)qE6v\"><field name=\"NUM\">500</field></shadow></value><value name=\"MAX_US\"><shadow type=\"math_number\" id=\"ieEQHw%GyWFAOldPXY=j\"><field name=\"NUM\">2500</field></shadow></value><value name=\"ANGLE\"><shadow type=\"math_number\" id=\"^t=wA,6^Xwi+r7d8[Ikn\"><field name=\"NUM\">180</field></shadow></value><next><block type=\"servo_unit_write_angle\" id=\"`z9_-urc#]^TRU0/i|`k\"><field name=\"VARNAME\">servo_7</field><value name=\"ANGLE\"><shadow type=\"math_number\" id=\"`HNGD7@XQ,lJe(WYg-hD\"><field name=\"NUM\">0</field></shadow></value></block></next></block></statement></block><block type=\"speaker_vol\" id=\"-7pXH$U38g?2zF)q%#qA\" disabled=\"true\" x=\"1790\" y=\"250\"><value name=\"VOLUME\"><shadow type=\"math_number\" id=\"@;Ky_.4d6m@]b5H%fKIx\" disabled=\"true\"><field name=\"NUM\">1</field></shadow></value><next><block type=\"speaker_sing\" id=\"]nL{N566{7bGUh0v3}}_\" disabled=\"true\"><field name=\"TONE\">262</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"s1Lx0F7X3bz,Oo:`{/Z5\" disabled=\"true\"><field name=\"TONE\">330</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"zJ|gvJ:Iqag|-Gln:Lfq\" disabled=\"true\"><field name=\"TONE\">392</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"yf}+k|3x1(:)l2~aywx#\" disabled=\"true\"><field name=\"TONE\">392</field><field name=\"BEAT\">1</field><next><block type=\"timer_delay\" id=\"I,A1Jf31bo}J8QmsiZYV\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"Q*zYp)]aGOy@aV11Xo0#\" disabled=\"true\"><field name=\"NUM\">0.1</field></shadow></value><next><block type=\"controls_repeat\" id=\"U1q(,7$R-v}o[(bgk.C!\" disabled=\"true\"><field name=\"TIMES\">2</field><statement name=\"DO\"><block type=\"speaker_sing\" id=\"-j-h[x3y%)%c`P1y`%rG\" disabled=\"true\"><field name=\"TONE\">784</field><field name=\"BEAT\">1</field><next><block type=\"timer_delay\" id=\"yL;m)Lt#+0.!}7sSHM[I\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"Hc2:?4Z:|S~`mEh~o%q8\" disabled=\"true\"><field name=\"NUM\">0.07</field></shadow></value></block></next></block></statement><next><block type=\"timer_delay\" id=\"(+[ij9TS!UPXrg5#EoFu\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"_YqVcgVaQDj;)dMtO174\" disabled=\"true\"><field name=\"NUM\">0.1</field></shadow></value><next><block type=\"controls_repeat\" id=\"AbfrXG|?MW;F@UQgx~i5\" disabled=\"true\"><field name=\"TIMES\">2</field><statement name=\"DO\"><block type=\"speaker_sing\" id=\"6l[PSQ;-oIZbNpFX=/R5\" disabled=\"true\"><field name=\"TONE\">659</field><field name=\"BEAT\">1</field><next><block type=\"timer_delay\" id=\"NR~0btliixu-]FL*pD`y\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"5LwEhE:I6DN^)?oD:^rI\" disabled=\"true\"><field name=\"NUM\">0.07</field></shadow></value></block></next></block></statement><next><block type=\"timer_delay\" id=\"(#U|Z,eXKpg)L:9Y^jCu\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"{XZqjpWvL6W;Sj{W-O1m\" disabled=\"true\"><field name=\"NUM\">0.1</field></shadow></value><next><block type=\"speaker_sing\" id=\"g*z#w+{OeO?/mI8fLiYb\" disabled=\"true\"><field name=\"TONE\">262</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"imN[W`x^::{$BNU5!JMM\" disabled=\"true\"><field name=\"TONE\">262</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"R7oWMq8xf:v`Jon`k1M8\" disabled=\"true\"><field name=\"TONE\">330</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"48.*g]*7NTKiz;#kCIa[\" disabled=\"true\"><field name=\"TONE\">392</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"w)[ap)x^C-t-gvn+$I?B\" disabled=\"true\"><field name=\"TONE\">349</field><field name=\"BEAT\">1</field><next><block type=\"timer_delay\" id=\"./rL7[2SGJ[A_wsVseyp\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"Mmq8~c4WLkX]4h7JU`9:\" disabled=\"true\"><field name=\"NUM\">0.1</field></shadow></value><next><block type=\"controls_repeat\" id=\"a:?Tvr=s+nC%aTv_LMB`\" disabled=\"true\"><field name=\"TIMES\">2</field><statement name=\"DO\"><block type=\"speaker_sing\" id=\"c[2=X9WZGxpJHM2j6.U/\" disabled=\"true\"><field name=\"TONE\">698</field><field name=\"BEAT\">1</field><next><block type=\"timer_delay\" id=\"*w$YV!nYov;xoxCrZ66f\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"ARn6IJ(D.B`Zu6#gVAa;\" disabled=\"true\"><field name=\"NUM\">0.07</field></shadow></value></block></next></block></statement><next><block type=\"timer_delay\" id=\"H9_Bgf0^,eXK*ySyEAsv\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"c2s-bH]*fnO.]$/Z^hdS\" disabled=\"true\"><field name=\"NUM\">0.1</field></shadow></value><next><block type=\"controls_repeat\" id=\"n7QT-w4uUsHbTXJ{@BXB\" disabled=\"true\"><field name=\"TIMES\">2</field><statement name=\"DO\"><block type=\"speaker_sing\" id=\"*}pa$!9uFK^VA_`PBN|8\" disabled=\"true\"><field name=\"TONE\">349</field><field name=\"BEAT\">1</field><next><block type=\"timer_delay\" id=\"xUGrAC|2fgNt{^*aR7y9\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"fQLv7pi*gkuHfcxnODuG\" disabled=\"true\"><field name=\"NUM\">0.07</field></shadow></value></block></next></block></statement><next><block type=\"timer_delay\" id=\"({^@sy@$J7uQ1j=~CCpS\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"u1m)*Ac)P25u_W.D!c@C\" disabled=\"true\"><field name=\"NUM\">0.1</field></shadow></value><next><block type=\"speaker_sing\" id=\",Y*;rtEfF0H@vM1_l,;}\" disabled=\"true\"><field name=\"TONE\">247</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"T:x}tMcw{ycwINaf/Km3\" disabled=\"true\"><field name=\"TONE\">247</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"-joEK6BG,ZOC}1HCZ*cW\" disabled=\"true\"><field name=\"TONE\">294</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"c!L6X;t?~!hX_KX_lA[Q\" disabled=\"true\"><field name=\"TONE\">448</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"9eqA!%BJRgPzE18@jXc:\" disabled=\"true\"><field name=\"TONE\">448</field><field name=\"BEAT\">1</field><next><block type=\"timer_delay\" id=\"-hf]__^~!l7i=vypBdNh\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"h^)rAH9lJf{)p#c^!2H@\" disabled=\"true\"><field name=\"NUM\">0.1</field></shadow></value><next><block type=\"controls_repeat\" id=\"l5ikl(I]dUOB`ZgKj[jl\" disabled=\"true\"><field name=\"TIMES\">2</field><statement name=\"DO\"><block type=\"speaker_sing\" id=\";N}/!wlj-idQw+O|+lxE\" disabled=\"true\"><field name=\"TONE\">587</field><field name=\"BEAT\">1</field><next><block type=\"timer_delay\" id=\"bST4b/2COR1jLf/c;w98\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"}@!/$0C8]bRj/Y*WS@Pz\" disabled=\"true\"><field name=\"NUM\">0.07</field></shadow></value></block></next></block></statement><next><block type=\"controls_repeat\" id=\"XR=oo8zhp(8[6xDKonp*\" disabled=\"true\"><field name=\"TIMES\">2</field><statement name=\"DO\"><block type=\"speaker_sing\" id=\"+$2aaux=|ZBpRW4mgoU)\" disabled=\"true\"><field name=\"TONE\">392</field><field name=\"BEAT\">1</field><next><block type=\"timer_delay\" id=\"N#^W7R8rOVWbV+OZnZTE\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"jCMRd7X-%/h)/;l_.Qu0\" disabled=\"true\"><field name=\"NUM\">0.07</field></shadow></value></block></next></block></statement><next><block type=\"timer_delay\" id=\"Q(QtMDStP30Zm@Y~a5c(\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"{i@w?e:n4D:{E7oq5`Z)\" disabled=\"true\"><field name=\"NUM\">0.1</field></shadow></value><next><block type=\"speaker_sing\" id=\"POy8,8U++zx(rbbjwS$u\" disabled=\"true\"><field name=\"TONE\">247</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"gR9(DW2R{}m??Y*hYst5\" disabled=\"true\"><field name=\"TONE\">247</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"r*}uDLcNi^o:d}bmV?_s\" disabled=\"true\"><field name=\"TONE\">294</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"}DXw;.|^}tYWg6~[|rX@\" disabled=\"true\"><field name=\"TONE\">448</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"_W6T:jBwz?h25ZNr`;h5\" disabled=\"true\"><field name=\"TONE\">448</field><field name=\"BEAT\">1</field><next><block type=\"timer_delay\" id=\"4icWcv%c[UHxxeBs5/|9\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"!wy_VkCr-cI:yq@Jk;rY\" disabled=\"true\"><field name=\"NUM\">0.1</field></shadow></value><next><block type=\"controls_repeat\" id=\"@YPLu?_cvG2jE(8Fv1Cc\" disabled=\"true\"><field name=\"TIMES\">2</field><statement name=\"DO\"><block type=\"speaker_sing\" id=\"U3H,CxCorIwB)85R#ZGc\" disabled=\"true\"><field name=\"TONE\">659</field><field name=\"BEAT\">1</field><next><block type=\"timer_delay\" id=\"FwI~YyT.RH.G^|^r0-oe\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\".fdT6bIK`Vht-Lk@p-Lv\" disabled=\"true\"><field name=\"NUM\">0.07</field></shadow></value></block></next></block></statement><next><block type=\"timer_delay\" id=\"LByj*j4(.93L8gU*-?@`\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\":,|jA[.y6QTc4E@H^fta\" disabled=\"true\"><field name=\"NUM\">0.1</field></shadow></value><next><block type=\"controls_repeat\" id=\"lsk4lJiS(^wDNNu6YShr\" disabled=\"true\"><field name=\"TIMES\">2</field><statement name=\"DO\"><block type=\"speaker_sing\" id=\"0)sZKn}XVq:0s/cTiK]@\" disabled=\"true\"><field name=\"TONE\">523</field><field name=\"BEAT\">1</field><next><block type=\"timer_delay\" id=\"sX^F7(*tTdSsLf:2h@M0\" disabled=\"true\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"$mD#WIvoLru~IaE,R4qc\" disabled=\"true\"><field name=\"NUM\">0.07</field></shadow></value></block></next></block></statement></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block><block type=\"button_callback\" id=\"4RHk]!fQA]Zcv2[/zP3*\" x=\"690\" y=\"410\"><field name=\"BUTTON\">C</field><field name=\"EVENT\">wasPressed</field><statement name=\"FUNC\"><block type=\"servo_init\" id=\"q6l%_z~Lq%XLLwxnpOdP\"><field name=\"VARNAME\">servo7</field><value name=\"PIN\"><shadow type=\"math_number\" id=\"{d~3-KD_,!EwrK71._AH\"><field name=\"NUM\">21</field></shadow></value><value name=\"FREQ\"><shadow type=\"math_number\" id=\"#YgE*u?6UI$*5pJl,p;o\"><field name=\"NUM\">50</field></shadow></value><value name=\"MIN_US\"><shadow type=\"math_number\" id=\"5RvFfc_on4GiH1*jaN/[\"><field name=\"NUM\">500</field></shadow></value><value name=\"MAX_US\"><shadow type=\"math_number\" id=\"{|Z8.^%A~8?ituspKj#a\"><field name=\"NUM\">2500</field></shadow></value><value name=\"ANGLE\"><shadow type=\"math_number\" id=\"*+]STBt(JVY9r=L2Z|/i\"><field name=\"NUM\">180</field></shadow></value><next><block type=\"servo_unit_write_angle\" id=\"$|/;AnF(^AHE)w!Vw%^+\"><field name=\"VARNAME\">servo_7</field><value name=\"ANGLE\"><shadow type=\"math_number\" id=\"=.k:MaUcS}ShW7zil2:4\"><field name=\"NUM\">180</field></shadow></value></block></next></block></statement></block><block type=\"button_callback\" id=\"/6hF#fSIr},Kq)${}-~p\" x=\"690\" y=\"570\"><field name=\"BUTTON\">A</field><field name=\"EVENT\">wasPressed</field><statement name=\"FUNC\"><block type=\"speaker_vol\" id=\"eP[?O+mCV6D#?qZg/S1I\"><value name=\"VOLUME\"><shadow type=\"math_number\" id=\"-UF)xQ4rW%9XyfoPrV{+\"><field name=\"NUM\">0.2</field></shadow></value><next><block type=\"controls_repeat\" id=\"9brOV;/|VA:LxP%8.B$M\"><field name=\"TIMES\">2</field><statement name=\"DO\"><block type=\"speaker_sing\" id=\"0n!l[W8XZ9(!h2g!o@sN\"><field name=\"TONE\">262</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"i3-jrb=OL|h:kG7jv58=\"><field name=\"TONE\">294</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"N3;4_G9XF}g3e+TaYKWK\"><field name=\"TONE\">330</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"2:$1,[WVk0Sjp..@H(.R\"><field name=\"TONE\">262</field><field name=\"BEAT\">1</field></block></next></block></next></block></next></block></statement><next><block type=\"timer_delay\" id=\"L=%Q)#E[eR/XP_M2U4k{\"><value name=\"DELAY\"><shadow type=\"math_number\" id=\"$qWOwQ?WNKzNUZ+dg?{@\"><field name=\"NUM\">0.07</field></shadow></value><next><block type=\"controls_repeat\" id=\"Yl116iW#ag%i15PHx8^A\"><field name=\"TIMES\">2</field><statement name=\"DO\"><block type=\"speaker_sing\" id=\"8aDNoB}~-c!Br/,cNGIv\"><field name=\"TONE\">330</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"Nc_wIN2JeFh)qL!m05i!\"><field name=\"TONE\">349</field><field name=\"BEAT\">1</field><next><block type=\"speaker_sing\" id=\"i|qyy`5xO;z}HSq{zG@Z\"><field name=\"TONE\">392</field><field name=\"BEAT\">1</field></block></next></block></next></block></statement></block></next></block></next></block></next></block></statement></block>","Blockly.Remotes":[],"Blockly.RemotePlus":[{"id":"__title","blockId":"","createTime":1675994776097,"name":"M5RemoteTitle","dragAndDrop":false,"resizable":false,"options":{"minWidth":1,"minHeight":1,"maxWidth":6,"maxHeight":10,"defaultWidth":2,"defaultHeight":1},"w":2,"h":1,"bgColor":"#0080FF","color":"#fff","fontsize":"M","label":"M5Remote","interval":3000,"code":"","event":"","dataSource":"none","ezdataToken":"","topic":"","needShadow":false,"type":"title","x":0,"y":0}],"modules":["rgb"],"cbIdList_":[],"eventCBIdList_":[]}
