SpeedFit™ Design Simulator
Wolfspeed offers one of the industry’s most comprehensive system-level circuit simulator for silicon carbide power applications

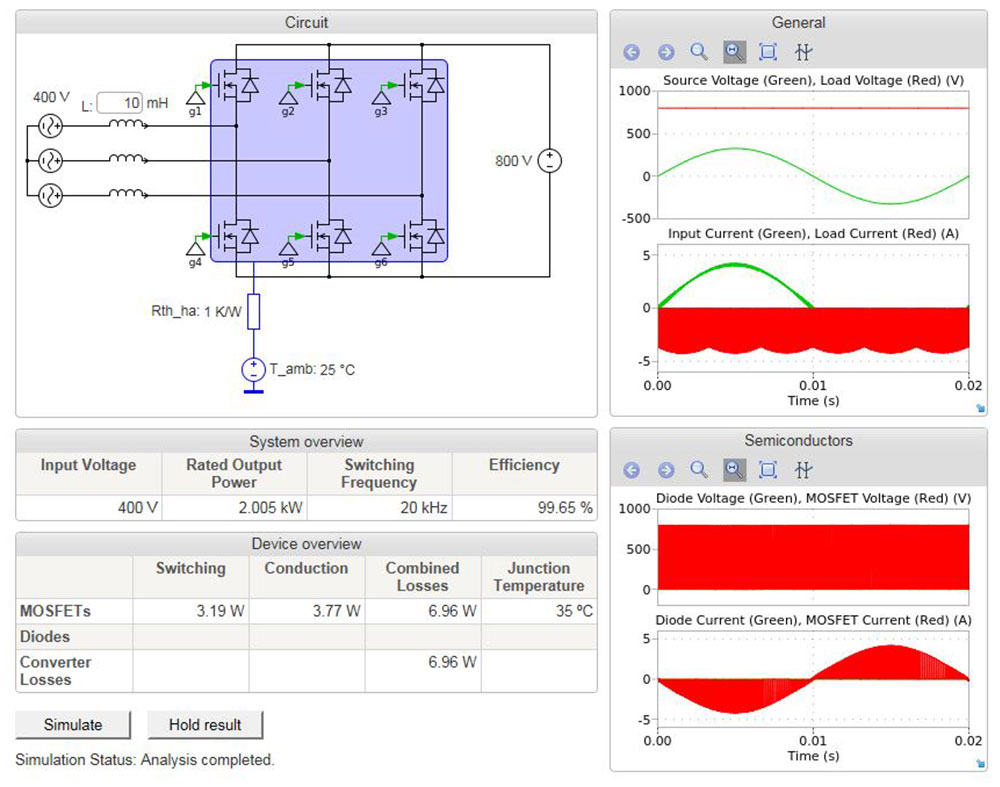

The SpeedFit Design Simulator is the first step in evaluating Wolfspeed's MOSFETs, Schottky diodes, and power modules. Its easy-to-use interface enables evaluation of the most common power topologies, from buck and boost converters to fully bidirectional totem pole PFCs with resonant DC/DC converters.
Using SpeedFit, customers can quickly select the appropriate device for their application and determine the following:
- Predictions of conduction and switching losses
- How performance varies with Rg
- How different device and thermal configurations compare
