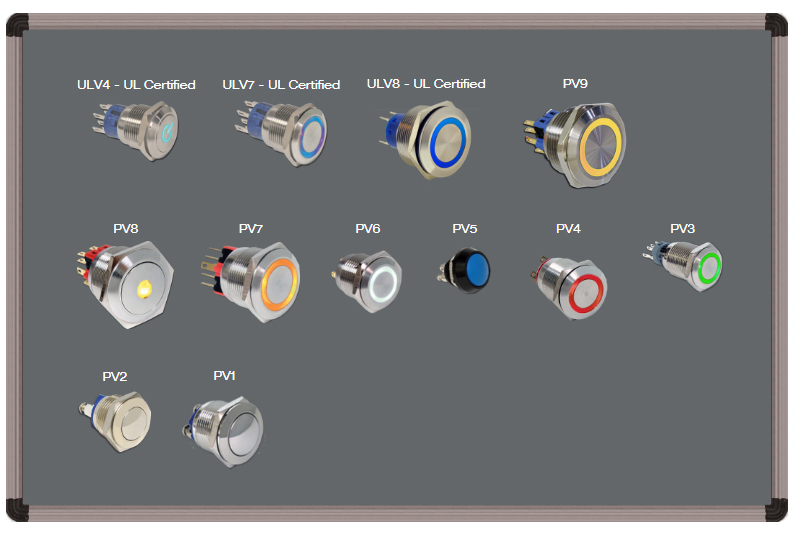

ULV4 Series Anti-vandal Switch UL Listed
The ULV4 series anti-vandal switch is our latest introduction in our popular anti-vandal series. It is the first one that is UL certified, offering a rating of 3A 250VAC. This switch has even more features: it is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching).
SPECIFICATIONS
- Electrical Rating: 3 A, 250 VAC
- Electrical Life: 50,000 Cycles
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Contact Resistance: 50 mΩ
- Insulation Resistance: 1000 MΩ at 500 VDC
- Dielectric Strength: 2,000 VAC
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -20°C to 55°C
- Travel: 3.2 mm
- Contact Arrangement: SPDT or DPDT
ULV7 Series Anti-vandal Switch Offers UL listing and IP67 ratings
E-Switch announces the ULV7 series anti-vandal switch, our latest introduction in our popular anti-vandal series. It is UL certified, offering a rating of 3A 250VAC. This switch has even more popular features: it is IP67 rated and has a long operating life up to 1,000,000 life cycles (momentary) and 500,000 (latching).
SPECIFICATIONS
- Electrical Rating: 3 A, 250 VAC
- Electrical Life: 50,000 Cycles
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Contact Resistance: 50 mΩ
- Insulation Resistance: 1000 MΩ at 500 VDC
- Dielectric Strength: 2,000 VAC
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -20°C to 55°C
- Travel: 3.2 mm
- Contact Arrangement: SPDT or DPDT
ULV8 Series UL Certified Sealed Anti-vandal Switch
The ULV8 series anti-vandal switch is our latest introduction in our popular anti-vandal series. It is UL certified, offering a rating of 3A 250VAC. This switch has even more features: it is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching).
SPECIFICATIONS
- Electrical Rating: 3 A, 250 VAC
- Electrical Life: 50,000 Cycles
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Contact Resistance: 50 mΩ
- Insulation Resistance: 1000 MΩ at 500 VDC
- Dielectric Strength: 2,000 VAC
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -20°C to 55°C
- Travel: 3.2 mm
- Contact Arrangement: SPDT or DPDT
PV9 Series Sealed Illuminated Anti-vandal Switch
The PV9 series illuminated vandal resistant switches feature a long life expectancy and are water resistant to IP65 ratings. Illumination LED colors include red, yellow, orange, blue, green and white, as well as combination colors (see configurator below). Available with dot or ring illumination. Requires a 28mm panel cutout size. Applications for this anti-vandal pushbutton switch include kiosks and ticket dispensers, among other designs that require vandal resistance.
SPECIFICATIONS
- Electrical Rating: 2 A, 48 VDC
- Electrical Life: 50,000 Cycles
- Mechanical Life: 1,000,000
- Contact Resistance: 50 mΩ Max.
- Insulation Resistance: 1000 MΩ Min. at 500 VDC
- Dielectric Strength: 2,000 VAC
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -20°C to 55°C
- Travel: 2.8 mm
- Contact Arrangement: SPDT or DPDT
PV8 Series Illuminated, Sealed Anti-vandal Switches
The PV8 series anti vandal switches feature a long life expectancy and are water resistant. Illumination LED colors include red, yellow, orange, blue, green and white. Dot or ring illumination options are available. 25mm panel cutout size. This anti-vandal switch is available with 2 or 4 poles, and offers momentary or maintained options. Applications for this anti-vandal pushbutton switch include kiosks, security applications, ticket dispensers, among other designs that require vandal resistance in a public setting.
SPECIFICATIONS
- Electrical Rating: 2 A 36 VDC
- Electrical Life: 50,000 Cycles
- Mechanical Life: 1,000,000
- Contact Resistance: 50 mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Dielectric Strength: 2,000 VAC
- Operating Temperature: -20°C to 55°C
PV7 Series Sealed, Long Life, Illuminated Anti-vandal Switches
0SS-311_sml.jpg "PV7 Series")
The PV7 series anti vandal switches feature a long life expectancy and are water resistant. Illumination LED colors include red, yellow, orange, blue, green, white, bi-colors and RGB LED options, for an almost unlimited choice of illumination colors. Available in dot or ring illumination with graphics options that include the power symbol etched or illuminated. Panel cutout size is 22mm. Applications for this antivandal pushbutton switch include kiosks and ticket dispensers, among other designs that require vandal resistance.
SPECIFICATIONS
- Electrical Rating: 2 A, 48 VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50 mΩ Max.
- Insulation Resistance: 1000 MΩ Min. at 500 VDC
- Dielectric Strength: 2,000 VAC
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -20°C to 55°C
- Travel: 2.20 mm
- Contact Arrangement: SPDT
PV6 Series Illuminated, Sealed, Long Life Anti-vandal Switches
he PV6 series illuminated anti vandal switches now offers an RGB LED option. The RGB LED feature combines colors red, green and blue to produce over 16 million hues of light, making the color options nearly unlimited.
The series already features a long life expectancy, water resistance to IP65 ratings, and illumination. But now, they are available with an RGB LED option, along with the other LED colors available, which include red, yellow, orange, blue, green and white.
SPECIFICATIONS
- Electrical Rating: 2 A, 48 VDC
- Electrical Life: 50,000 Cycles
- Mechanical Life: 1,000,000 Cycles
- Contact Resistance: 50 mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Dielectric Strength: 2,000 VAC
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -20°C to 55°C
- Travel: 1.50 mm
- Contact Arrangement: SPST Off-(On)
PV5 Series Sealed, Long Life Anti-vandal Switches
The PV5 anti-vandal switch features a long life expectancy and IP65 rating. It offers a domed actuator with multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel.
SPECIFICATIONS
- Electrical Life: 50,000 Cycles
- Mechanical Life: 1,000,000 Cycles
- Contact Resistance: 50 mΩ Max. at 1 A 12 VDC
- Insulation Resistance: 1,000 MΩ Min.
- Dielectric Strength: 2,000 VAC for 1 Minute
- Operating Temperature: -20°C to 55°C
- Ingress Protection: IP65
PV4 Series Illuminated, Sealed, Long Life Anti-vandal Switches
011-311_sml.jpg "PV4 Series")
he PV4 series anti-vandal switches are water resistant to IP65 ratings. Featuring multiple actuator options, the PV4 series anti-vandal switches have a long life expectancy. It offers multiple illumination colors, including bi-color LED and RGB LED options. Both dot and ring illumination are available, including a graphics option of power symbol etched or illuminated (with ring illumination). This switch features a panel cutout size of 19mm. The PV4 series illuminated anti-vandal switch is popular for use in kiosk applications, ticket dispensers and industrial-type applications. Also comes with a black anodized finish option.
SPECIFICATIONS
- Electrical Rating: 2 A, 24 VDC
- Life Expectancy: xx
- Contact Resistance: 50 mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Dielectric Strength: 2,000 VAC
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -20°C to 55°C
- Travel: 2.50 mm
- Contact Arrangement: SPDT, DPDT
PV3 Series Illuminated, Sealed, Long Life Anti-vandal Switches
The PV3 series illuminated anti-vandal switch is water resistant to IP40/IP65 ratings, and has many functions including long life expectancy. It has a panel cutout of 16mm, and LED illumination options include a dot or ring, with a bi-color option available.These anti-vandal pushbutton switches are popular for use in kiosk applications, ticket dispensers and industrial-type applications. Also comes with a black anodized finish option.
SPECIFICATIONS
- Electrical Life: 50,000 Cycles
- Mechanical Life: 1,000,000 Cycles
- Contact Resistance: 50 mΩ Max. at 1 A 12 VDC
- Insulation Resistance: 1,000 MΩ Min.
- Dielectric Strength: 2,000 VAC for 1 Minute
- Operating Temperature: -20°C to 55°C
- Ingress Protection: IP40 / IP67
PV2 Series Water Resistant, Long Life Anti-vandal Switches
The PV2 series anti-vandal switch is vandal resistant and water resistant to IP65 ratings. This anti-vandal switch has a long life expectancy, and a panel cutout size of 16mm. It offers an Off-(On) configuration and your choice of domed, flat or high actuator options. This anti vandal pushbutton switch is popular for use in kiosk applications, ticket dispensers and industrial-type applications. Also comes with a black anodized finish option.
SPECIFICATIONS
- Electrical Life: 200,000 Cycles
- Mechanical Life: 1,000,000 Cycles
- Contact Resistance: 50 mΩ Max. at 1 A 12 VDC
- Insulation Resistance: 1,000 MΩ Min.
- Dielectric Strength: 2,000 VAC for 1 Minute
- Operating Temperature: -20°C to 55°C
- Ingress Protection: Dust Tight, Water Resistant
PV1 Series Long Life, Water Resistant Anti-vandal Switches
The PV1 series water resistant, sealed, anti-vandal switches feature long life and custom laser engraved marking options. This anti-vandal switch features a clean, aesthetic look for high end products. It has a panel cutout size of 19mm. It is sealed to IP65 ratings. Our anti-vandal switches are popular for use in kiosk applications, ticket dispensers and industrial-type applications. Also comes in black anodized finish.
SPECIFICATIONS
- Electrical Life: 200,000 Cycles
- Mechanical Life: 1,000,000 Cycles
- Contact Resistance: 50 mΩ Max. at 1 A 12 VDC
- Insulation Resistance: 1,000 MΩ Min.
- Dielectric Strength: 2,000 VAC for 1 Minute
- Operating Temperature: -20°C to 55°C
- Ingress Protection: Dust Tight, Water Resistant
