SS Series Common Mode Chokes
KEMET's standard type AC line filters are offered in a wide variety of sizes and specifications

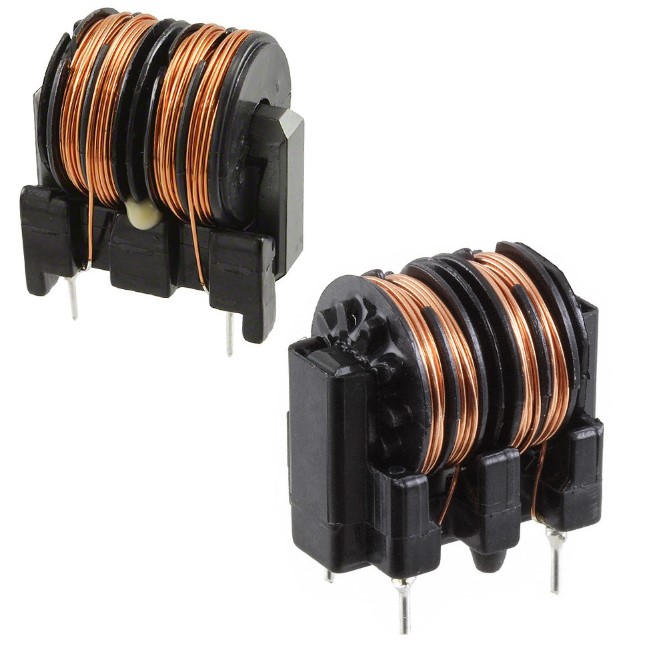

The KEMET SS coils are offered in a wide variety of sizes and specifications. These gear type coils are designed with KEMET's proprietary ferrite cores and are useful in various noise countermeasure fields. The SS coil has a rectangular core with middle or small size core dimensions and low to middle current (0.3 A to 5 A). They are available in vertical and horizontal assemblies. The optimized core shape and product structure is ideal for demanding compact applications where space is of the highest priority and where smaller is better. Typical applications include audio-visual equipment, office automation equipment, digital appliances, and power supply devices.
Features and Benefits
- Square shaped core
- Proprietary ferrite material and equivalents
- Split bobbin design for high impedance characteristics
- Non-split bobbin design for large inductance characteristics
- Wide variety of sizes and specifications
- High inductance in a compact and lightweight design
- Inductances up to 190 mH
- Rated current up to 5 A
- Operating temperature range from -25°C to +120°C
- UL94 V-0 flame retardant rated base and bobbin
SS Series Common Mode Chokes
| Image | Manufacturer Part Number | Description | DC Resistance (DCR) (Max) | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|
 |  | SS21V-R200036 | CMC 3.6MH 2A 2LN TH | 150mOhm | 300 - Immediate | $2.09 | View Details |
 | SS28V-25045-CH | CMC 4.5MH 2.5A 2LN TH | 160mOhm | 0 - Immediate 180 - Marketplace | $2.39 | View Details | |
|  | SS26V-R070680 | CMC 68MH 700MA 2LN TH | 1.4Ohm | 238 - Immediate | $2.39 | View Details |
|  | SS24V-R08250-CH | CMC 25MH 800MA 2LN TH | 750mOhm | 186 - Immediate | $2.39 | View Details |
| | SS26V-R300038 | CMC 3.8MH 3A 2LN TH | 100mOhm | 343 - Immediate | $2.52 | View Details |
|  | SS30V-300054 | CMC 5.4MH 3A 2LN TH | 120mOhm | 0 - Immediate 218 - Marketplace | $2.84 | View Details |
| | SS30V-R200132 | CMC 13.2MH 2A 2LN TH | 210mOhm | 0 - Immediate 124 - Marketplace | $2.90 | View Details |
|  | SS21VB-R040342 | CMC 34.2MH 400MA 2LN TH | 2.372Ohm | 240 - Immediate | $2.46 | View Details |
|  | SS11VL-13035 | CMC 3.5MH 1.3A 2LN TH | 280mOhm | 0 - Immediate | $1.25 | View Details |
| | SS11VL-07120 | CMC 12MH 700MA 2LN TH | 900mOhm | 0 - Immediate | $1.65 | View Details |
