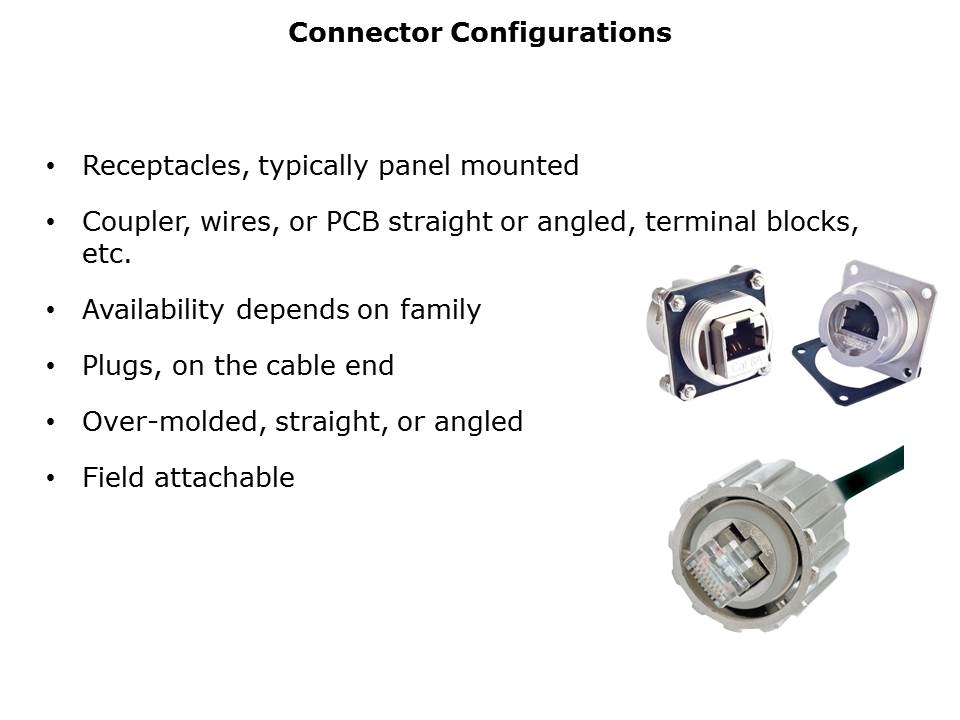

Within each connector family, the systems usually have the receptacle on the device or panel. Inside the device, the termination can have a similar pass-through interface, have wires, or solder to a PC board. The plug is usually on the cable side and is straight, with some families offering right angle versions.
