Slide 1
Slide 2
Slide 3
Slide 4
Slide 5
Slide 6
Slide 7
Slide 8
Slide 9
Slide 10
Product List

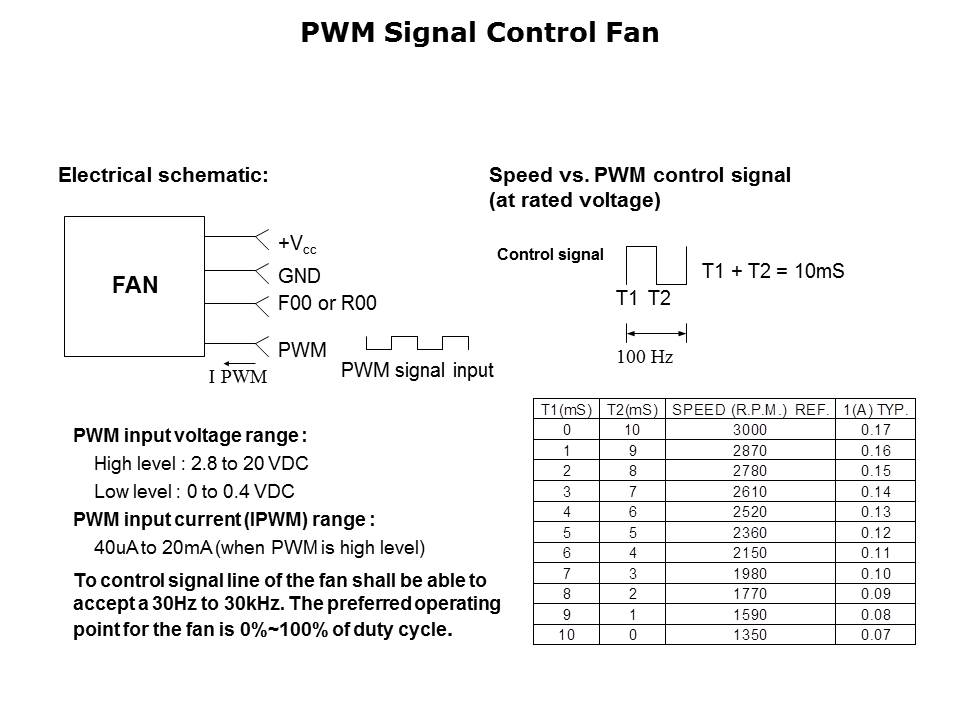

In PWM (pulse width modulation speed control) speed controlled fans, a fixed frequency square wave between 30 Hz and 30 kHz is applied to the PWM signal input. The ratio of the On-time vs. the square wave period is proportional to the RPM.
PTM Published on: 2011-10-27
