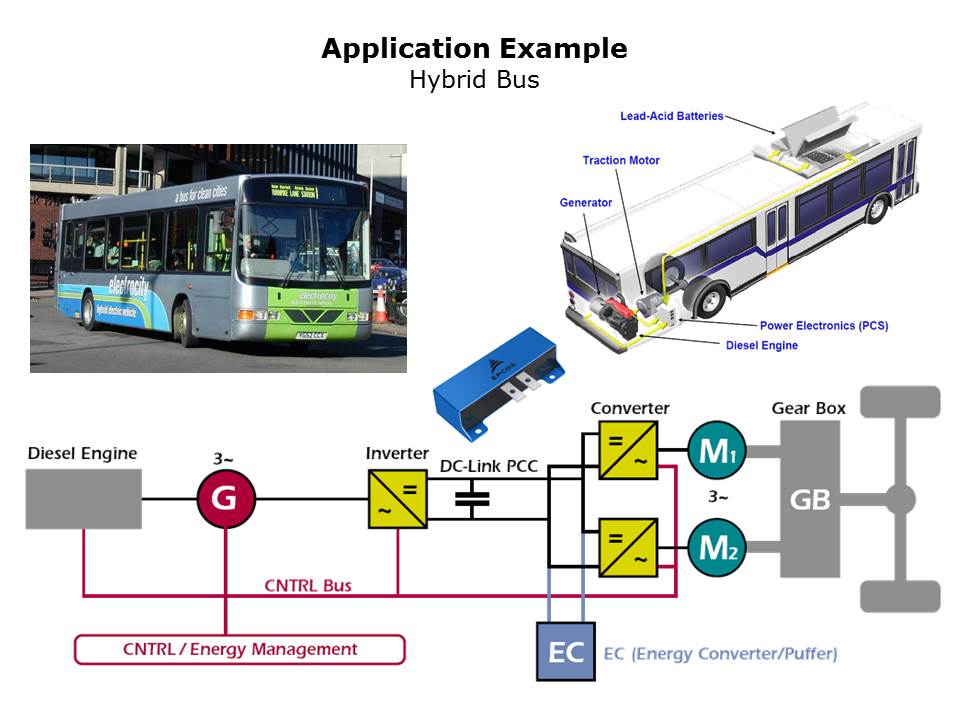

As illustrated in the block diagram on this slide, in a hybrid bus application there is also a DC-Link function and battery bank which requires the same PTC-ICL component for safely discharging the battery system. In this application for higher voltages the PTC-ICL device can be used in a parallel circuit configuration.
PTM Published on: 2016-11-23
