Slide 1
Slide 2
Slide 3
Slide 4
Slide 5
Slide 6
Slide 7
Slide 8
Slide 9
Slide 10
Slide 11
Product List

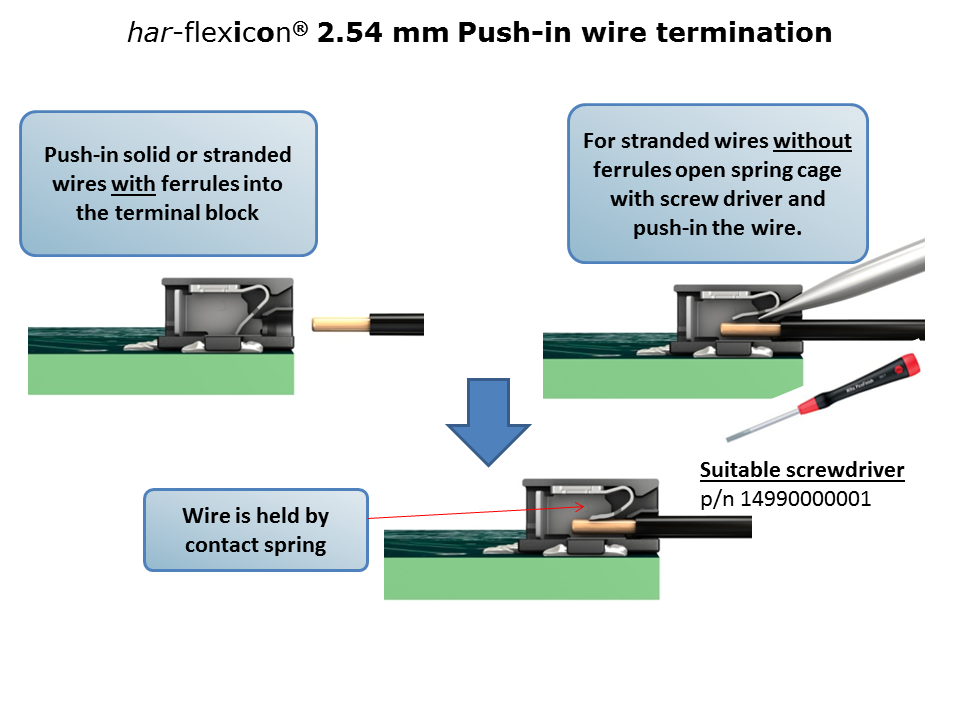

The 2.54 mm versions utilize a push-in termination design compatible with solid or stranded wires. For solid wires, or stranded wires with a ferrule, the wire can be simply pushed into the contact cavity, without any tool. Stranded wires without ferrule can be inserted with the use of a screw driver, which opens the spring. Once inserted the wire is held securely in place by the spring.
PTM Published on: 2014-05-15
