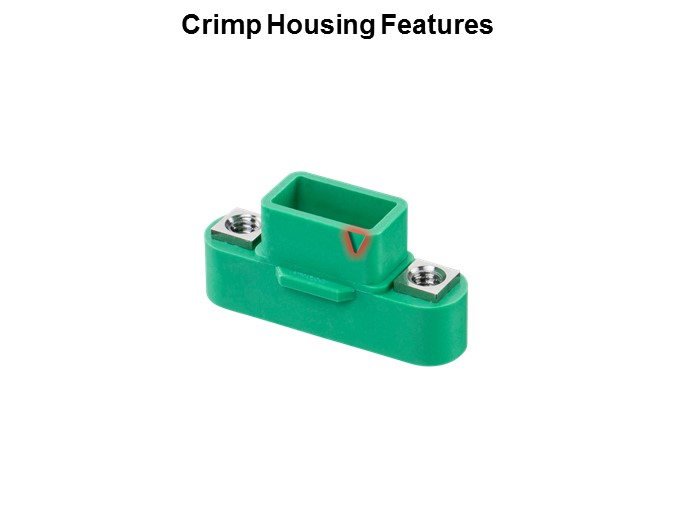

The No. 1 contact position is identified with a triangle-shaped indent on the rear wall of the crimp housings. Numbering then runs along the row, jumps back and starts again at the contact below number 1, and runs along the second row. A 2.5 mm deep potting wall is included on the housing for back-potting completed cable assemblies. Standard cable assemblies are supplied already back-potted.
