Slide 1
Slide 2
Slide 3
Slide 4
Slide 5
Slide 6
Slide 7
Slide 8
Slide 9
Slide 10
Slide 11
Slide 12
Product List

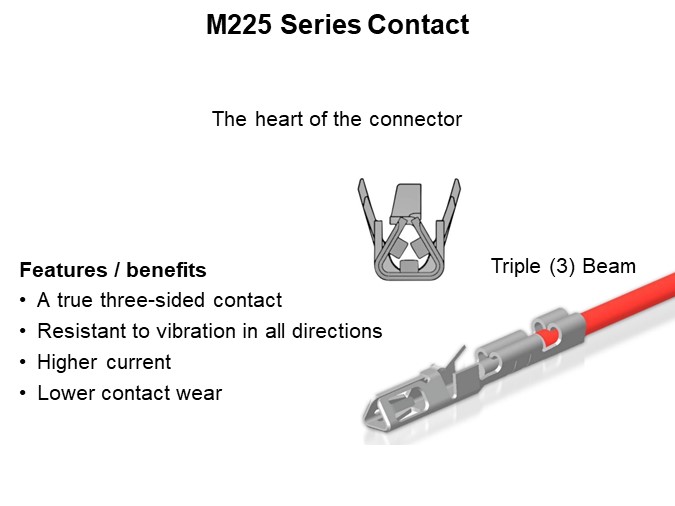

The heart of the M225 connector system is the 3-fingered beryllium copper open-crimp contact. The additional contact finger gives all-around connectivity, improving the vibration resistance in any direction. The additional contact also means each beam requires less normal force than a 2-finger contact. This puts less strain on the beams and decreases wear. The extra surface area results in higher current-carrying capacity and reduced contact resistance.
PTM Published on: 2020-12-21
