Product List

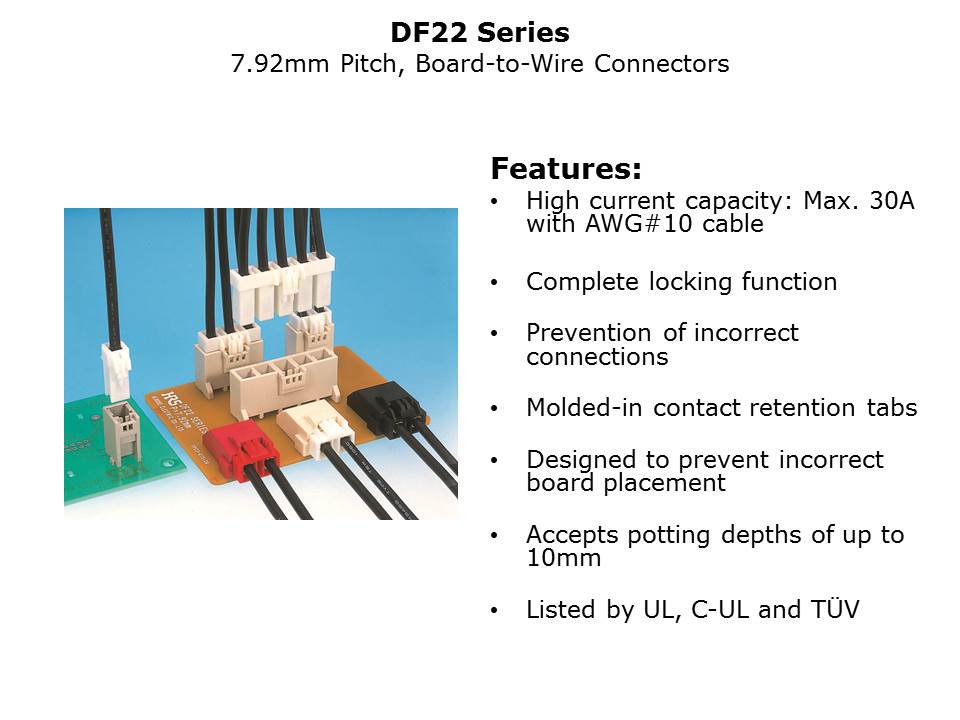

The DF22 series is a 7.92mm pitch power supply connector for high current applications. The current capacity is 30A max with #10 AWG cable. The series utilizes high conductive contact material for lower power loss. The headers are available in both right angle and straight configurations. Three keying/color options are available to avoid mis-mating when using more than one DF22 on the same PCB.
