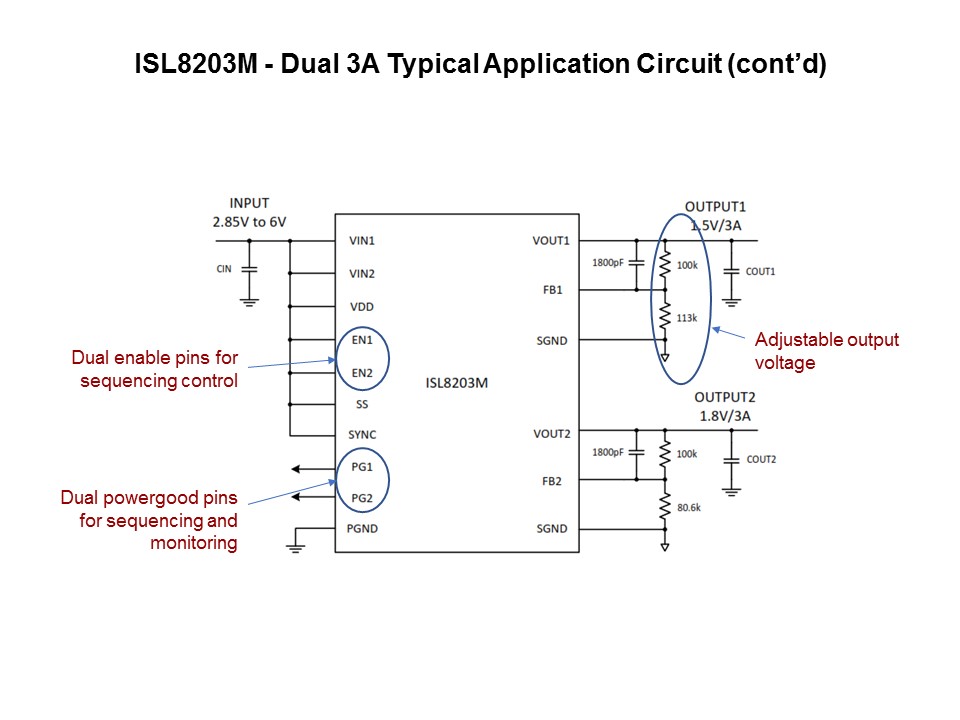

The diagram on this slide highlights some of the key features embedded in the ISL8203M. It features dual enable pins for separate control of the outputs along with separate powergood pins. This allows sequencing between the outputs if needed. The output voltage can be adjusted through a simple resistor divider network.
