Image of JAE AX01 Series Floating Board-to-Board Connector - Dimensions Right-Angle

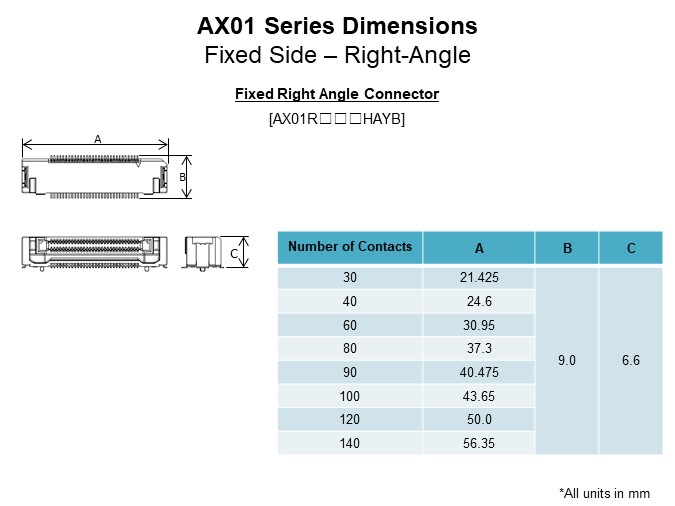

Displayed here are the dimensions of the AX01 series fixed side connector, the right-angle orientation.

PTM Published on: 2022-10-11
