Slide 1
Slide 2
Slide 3
Slide 4
Slide 5
Slide 6
Slide 7
Slide 8
Slide 9
Slide 10
Slide 11
Slide 12
Slide 13
Product List

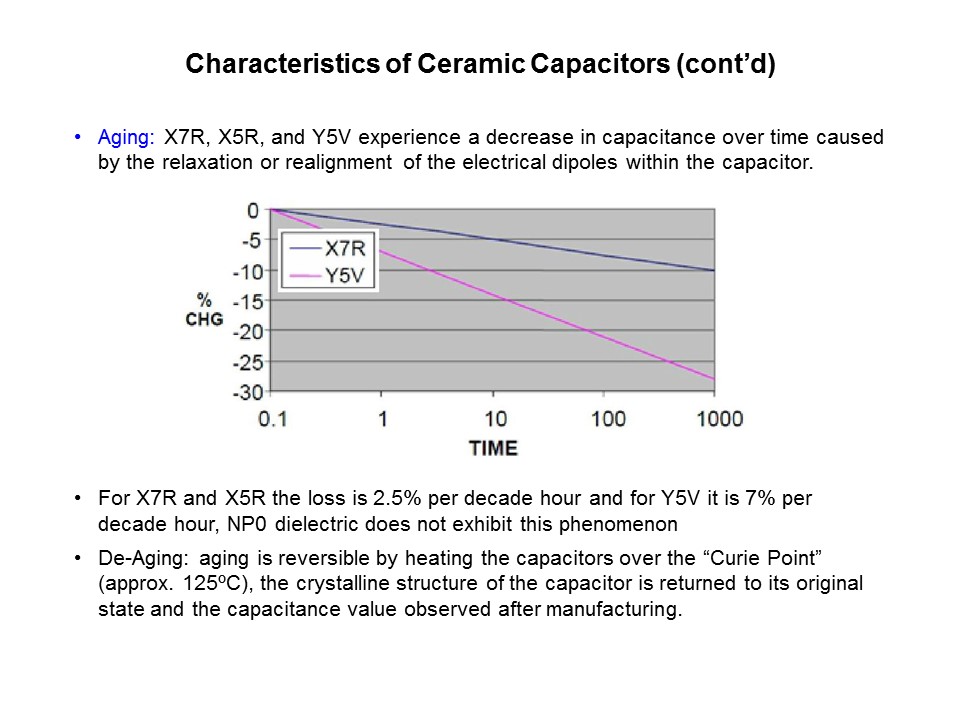

X7R, X5R, and Y5V experience a decrease in capacitance over time caused by the relaxation or realignment of the electrical dipoles within the capacitor. For X7R and X5R the loss is 2.5% per decade hour and for Y5V it is 7% per decade hour, NP0 dielectric does not exhibit any aging. Aging is reversible by heating the capacitors over the “Curie Point” (approx 125°C), the crystalline structure of the capacitor is returned to its original state and the capacitance value observed after manufacturing.
PTM Published on: 2011-09-27
