LTC3863-Slide5

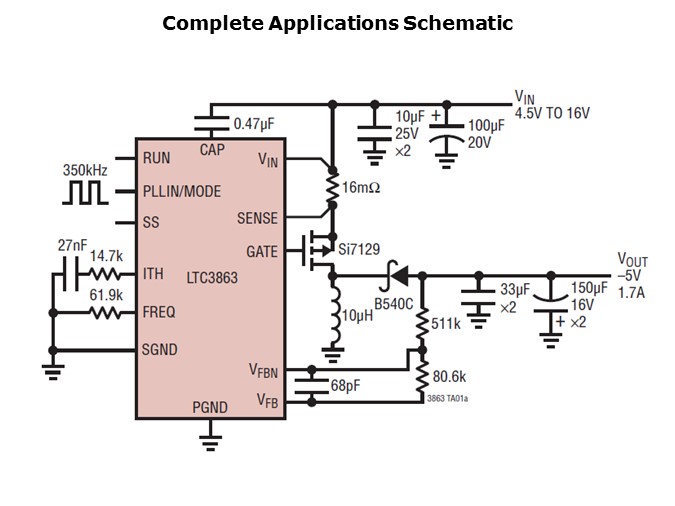

This slide shows an applications schematic for a -5V @ 1.7A output being developed from a 4.5V to 16V input range.

PTM Published on: 2013-07-12
