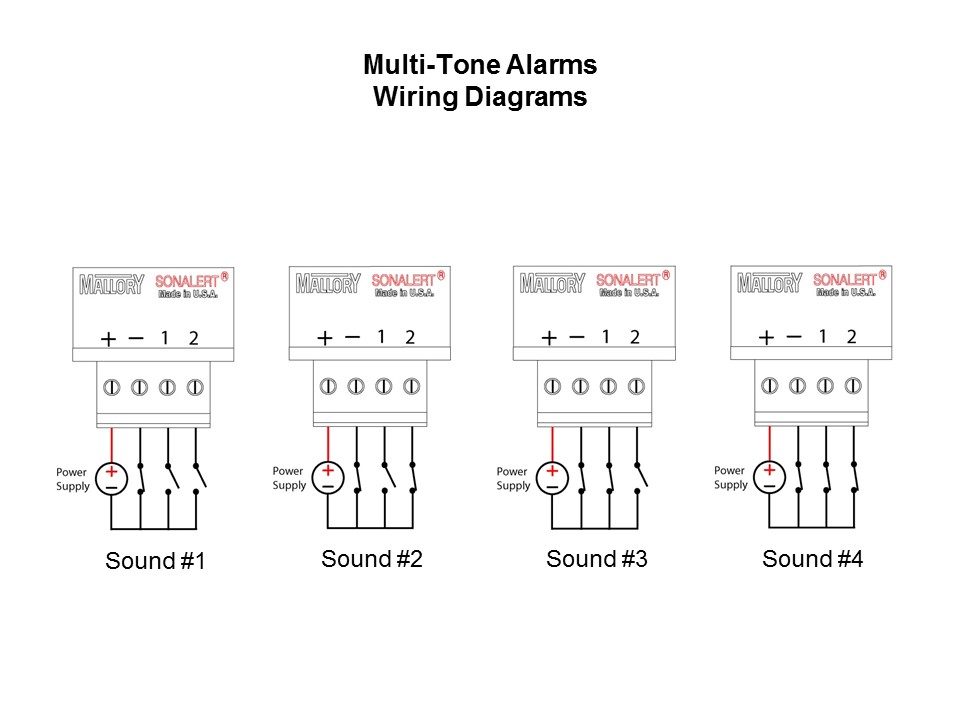

Shown here are the diagrams that show how to activate the four different individual sounds. Refer to the individual specification sheet on which specific sounds are assigned to sounds number one through four. The wiring diagrams are also included on the individual specification sheet for each multi-tone model.
