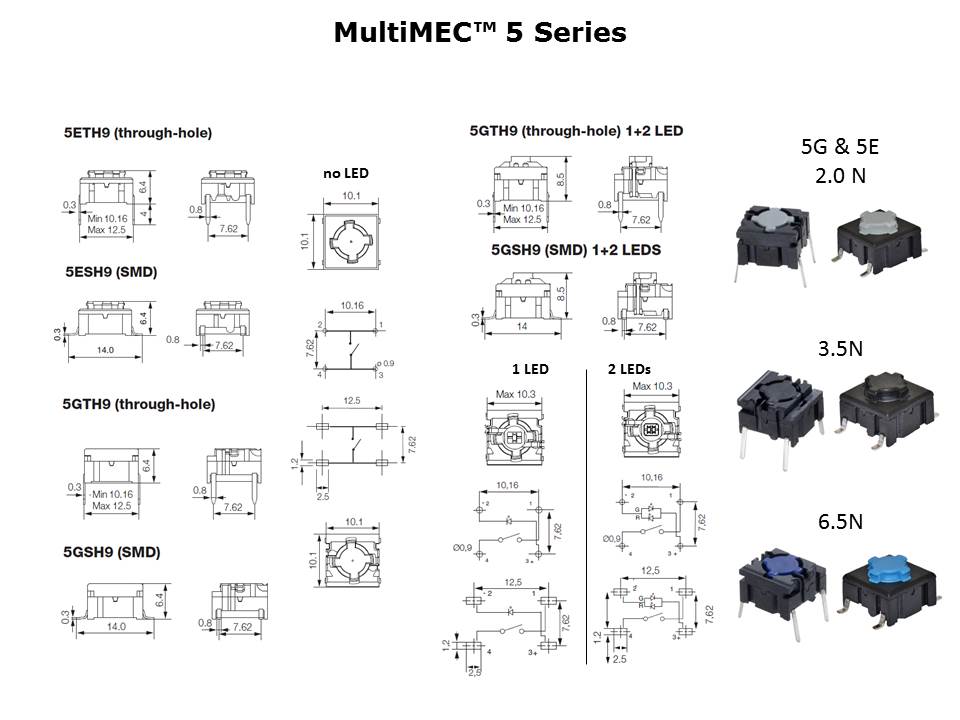

On the left side of this slide, there are the dimensions for 5E/5G through-hole and surface mount versions. In the middle, there is the 5G switch with illumination. In the case of two LEDs, the polarity of the terminals 2 and 3 are reversed to shift between the LEDs. The 5 series switches have three standard actuation forces. In order to distinguish them better, the actuator of the 2.0 N is grey, the 3.5 N is black, and 6.5 N is blue.
