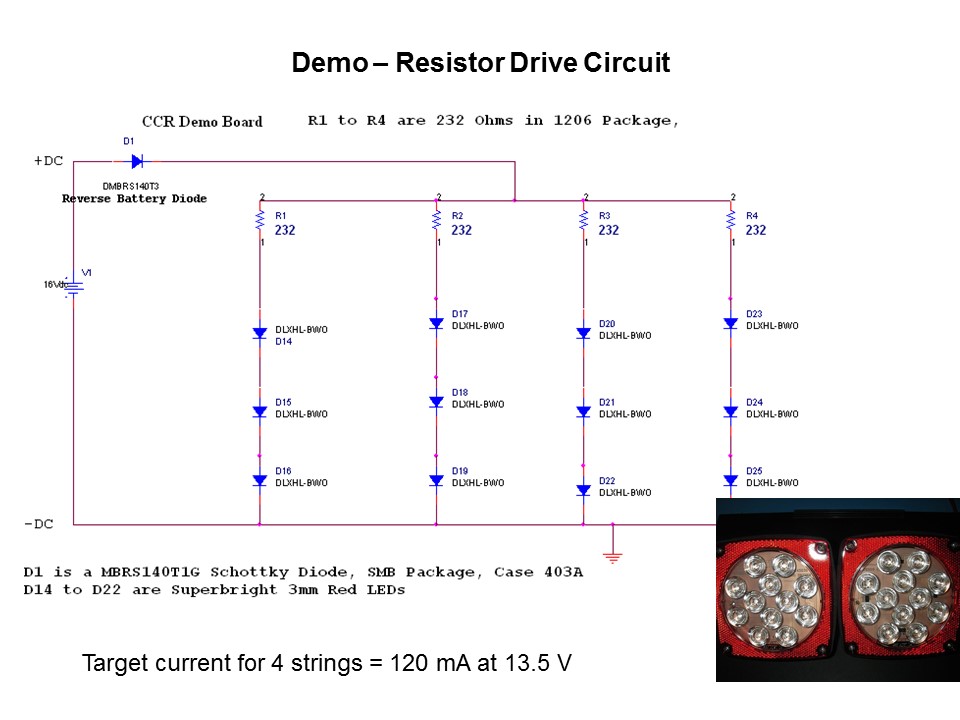

The resistor biased light has four strings of LEDs. Each string is comprised of 3 LEDs and one 232 ohm resistor, this resistor was selected to provide 30 mA in a single string and 120 mA in total, with an input voltage of 13.5 V.
