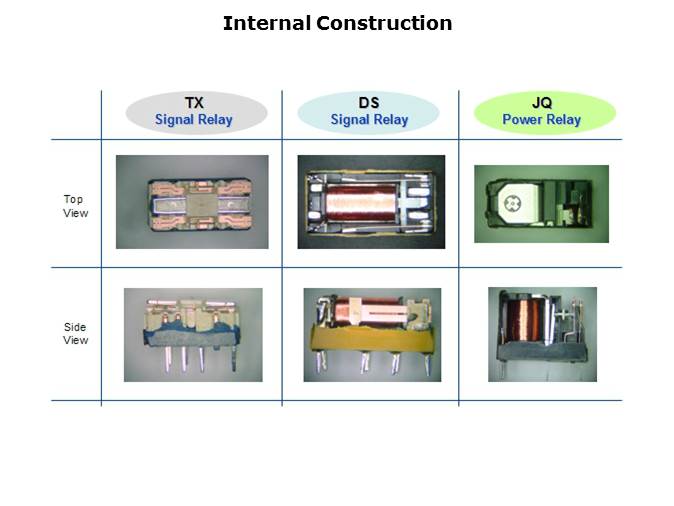

This slide depicts a comparison of the internal structure among various Panasonic relay series. Two different signal relay designs are shown with a power relay for comparison: seesaw (TX), fishtail (DS) and standard structure (JQ). Contact material and internal structure are two ways to differentiate signal relays from power relays.
