Product List

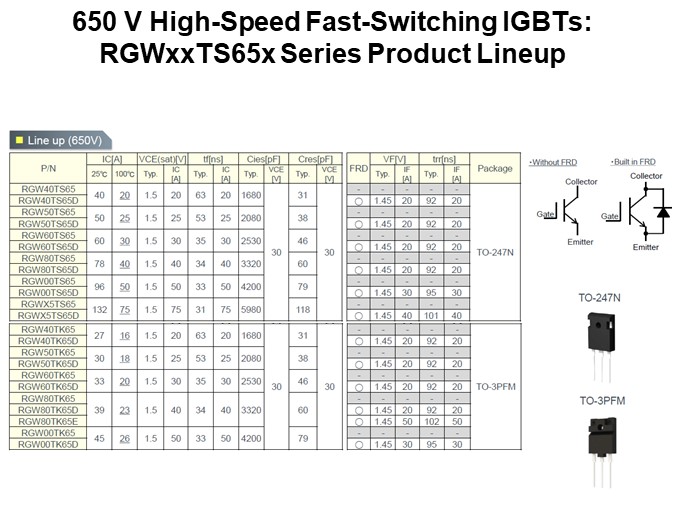

Shown here is the RGWxxTS65x series of IGBTs. Models both with a built-in fast-recovery diode (denoted by a circle in the column titled FRD) and without are offered, requiring an external diode. Two leaded package types are available. Additionally, rated currents up to 32 A at a VCE(SAT) of 1.5 V are supported.
