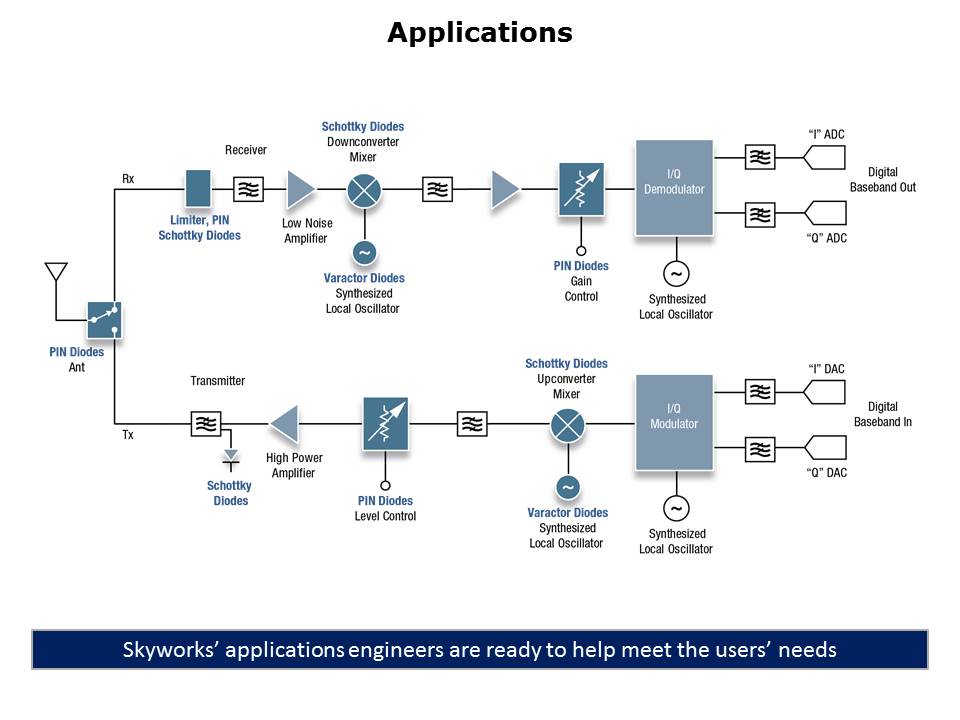

Many of the systems in which Skyworks RF components can be used are best described by the general transceiver block diagram on this slide. The subsystems for which Skyworks offers RF/microwave diodes or passive components are shown here in dark blue. The applications engineering team is ready to help designers select the best component for their needs. For other RF subsystems, please refer to the Skyworks web site, www.skyworksinc.com, for more information.
