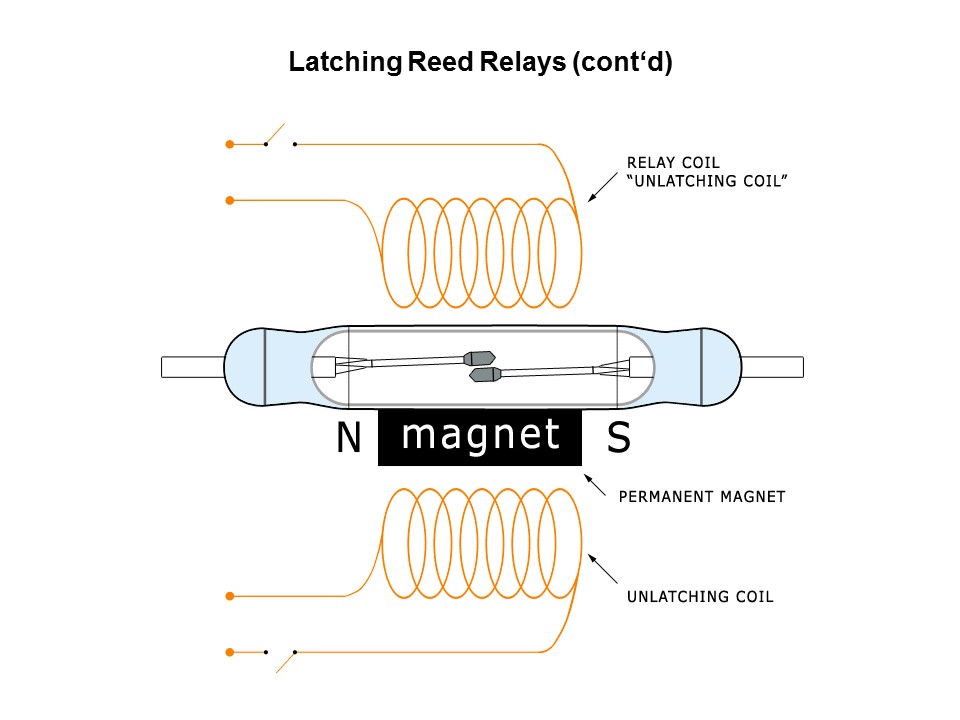

Once the coil pulse is removed the contacts will continue to remain in the open state. Again, applying the wrong polarity to the unlatching coil will have no effect on the state of the relay. So it is important to observe the correct polarity for proper operation.
