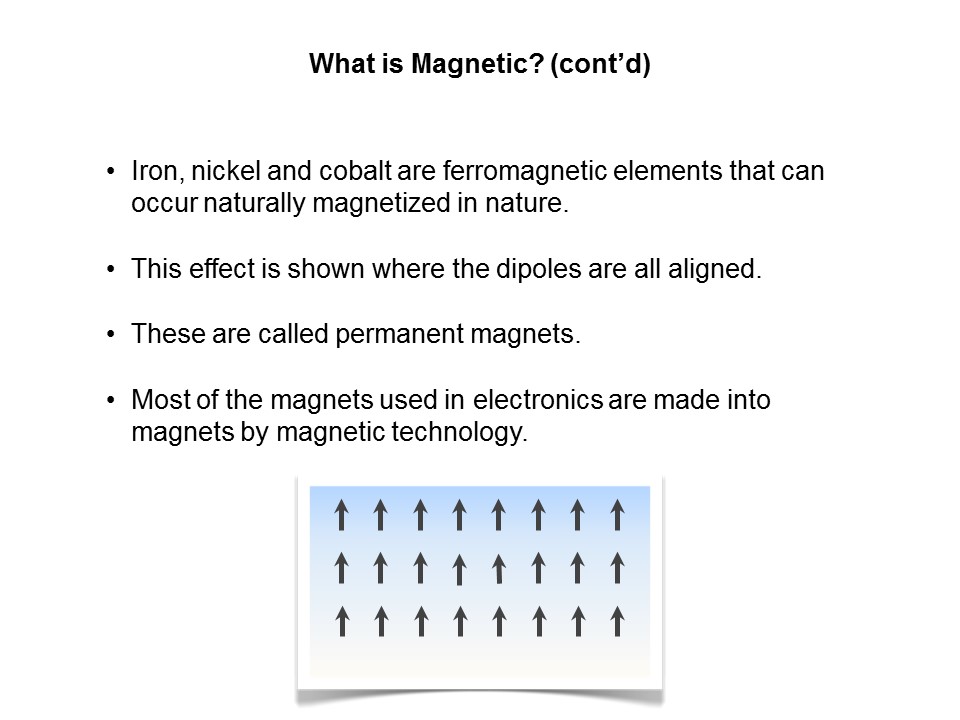

Iron, nickel, and cobalt are ferromagnetic elements that can occur naturally magnetized in nature. This effect is shown where the dipoles are all aligned. These are called permanent magnets. Most of the magnets used in electronics are made into magnets by magnetic technology. The picture on this slide represents dipoles all aligned producing the overall magnetic field.
