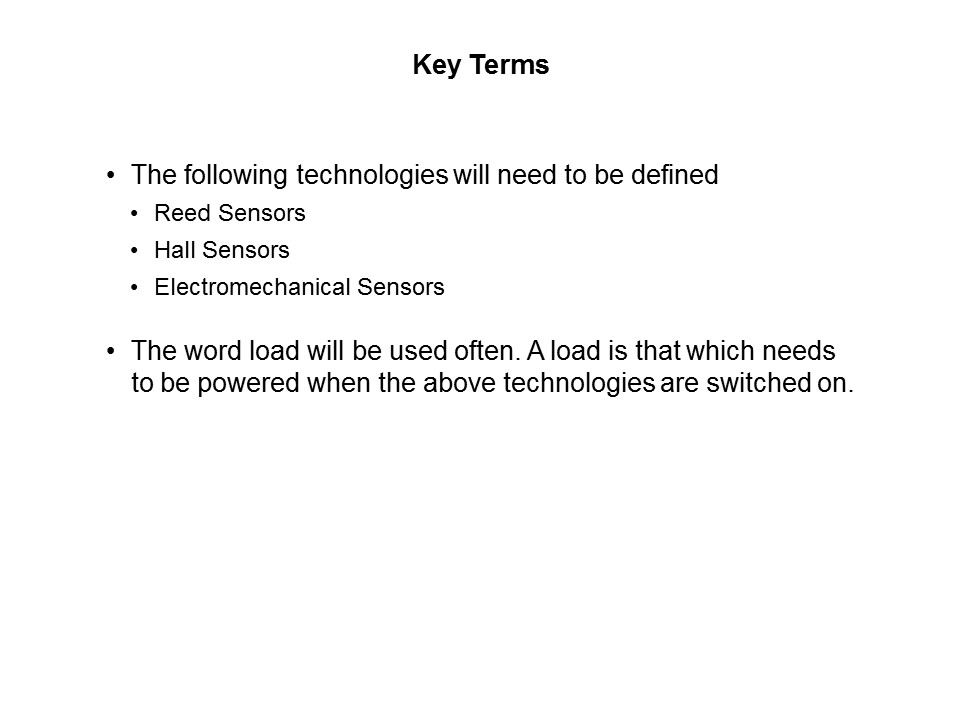

The following sensor technologies will be defined in the next several slides – reed sensors, hall sensors, and electromechanical sensors. Each of these technologies will switch a load either directly or indirectly. A load is simply that which needs to be powered when these technologies are switched on. These loads can be lights, small motors, computers, etc.
