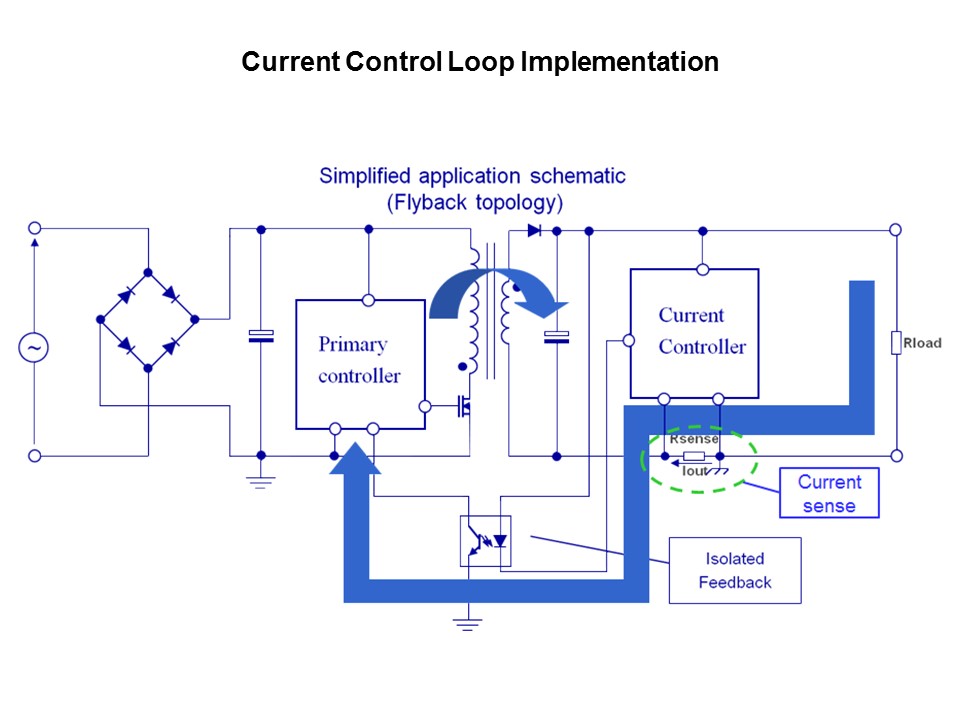

The circuit shown on this slide is a current control loop implementation, which senses current through the shunt resistor and provides feedback, through an optocoupler. The sensed value of the current is based on the voltage drop across the fixed shunt resistance, and that voltage information is fed back to the primary side.
